No Load Test
WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Rating as short as 30 seconds requires rapid testing.

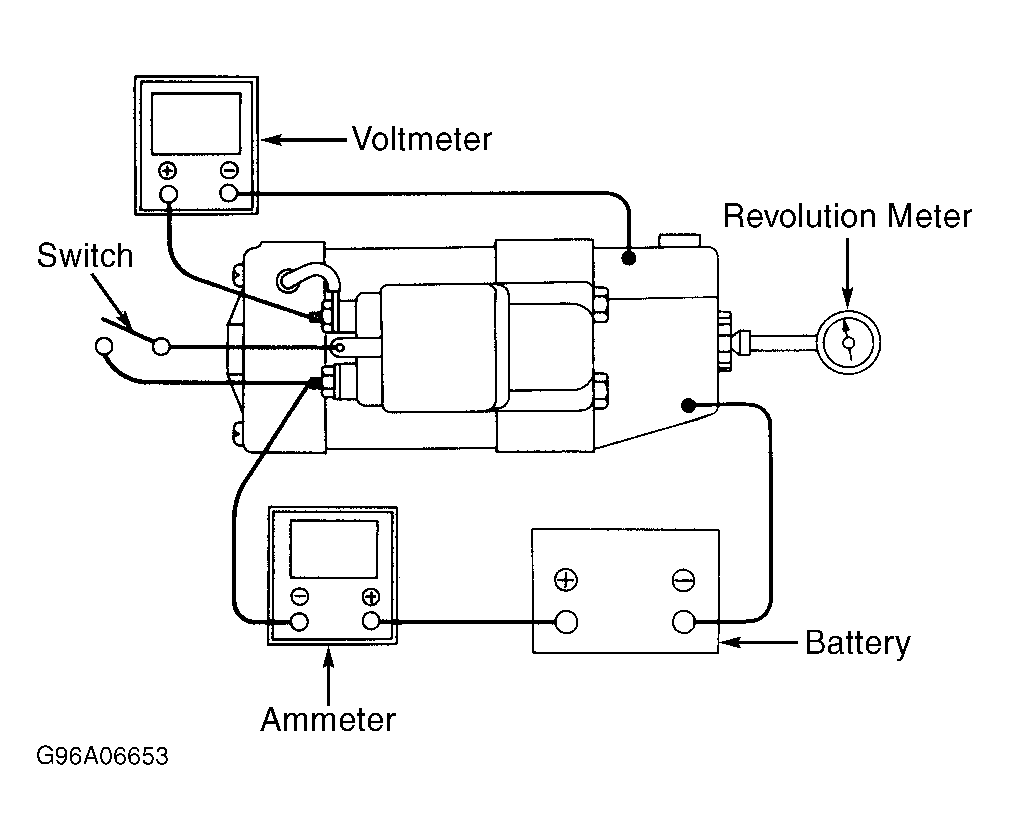

Fix the starter on the test bench, and wire. See Fig 1 . When the switch is closed, the current flows and the starter runs under no load. At this time, measure current, voltage and speed to check if they satisfy the standard. See STARTER SPECIFICATIONS .
