Section 51 (Starters): Overhaul: Starter: Notes

WARNING: This page is about a different car, the 2002 Isuzu Trooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For overhaul procedure, see exploded view of starter. See Fig 1 .

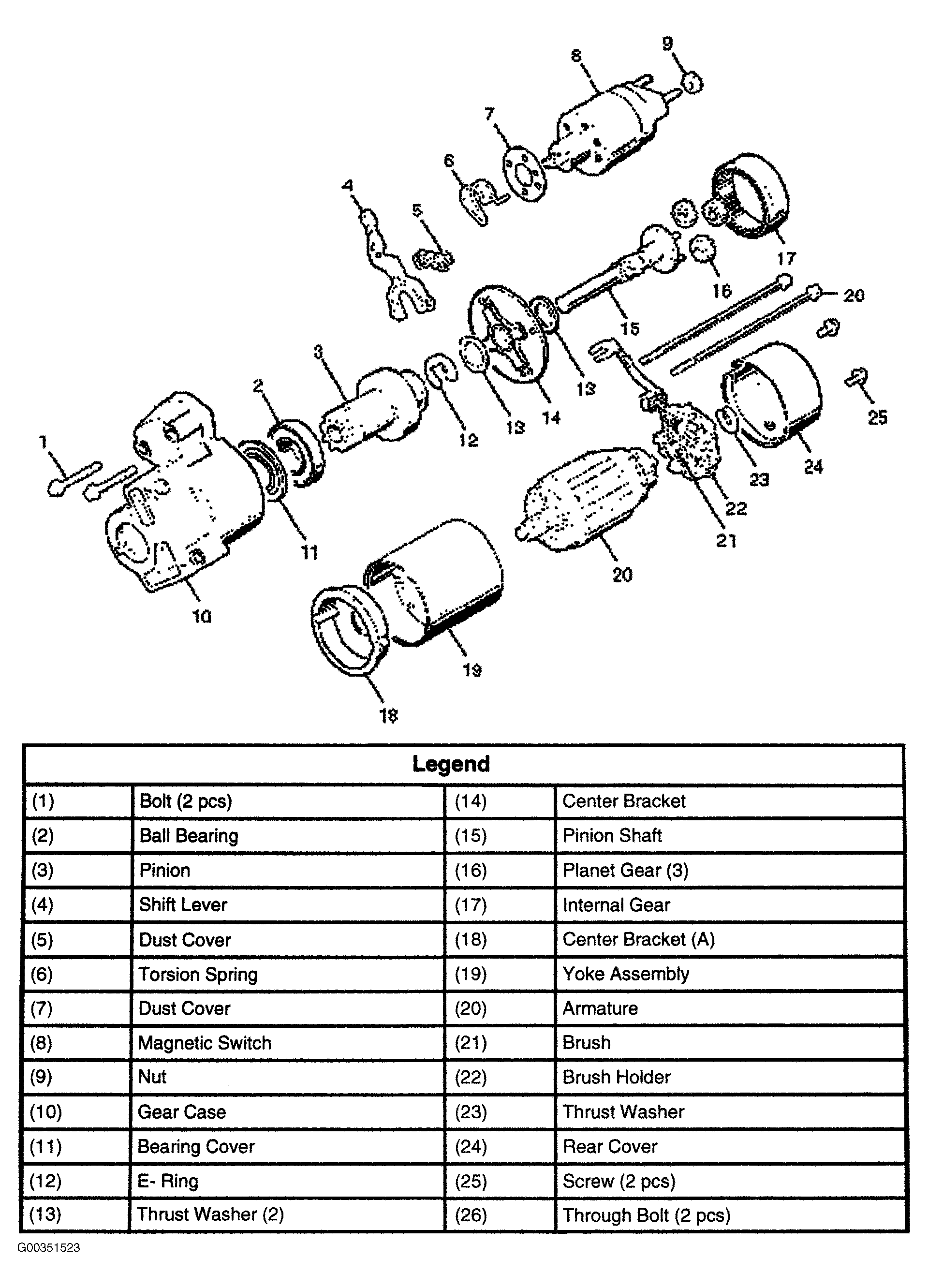

Fig 1: Exploded View Of Starter

Courtesy of ISUZU MOTOR CO.
