Disassembly and Assembly of Display Unit

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove display unit. Refer to REMOVAL AND INSTALLATION OF DISPLAY UNIT
  2. Remove screws (3) and remove power source box.
    NOTE: Be careful to handle display and power source box, because they are connected each other via FPC (Flexible Print Circuit).

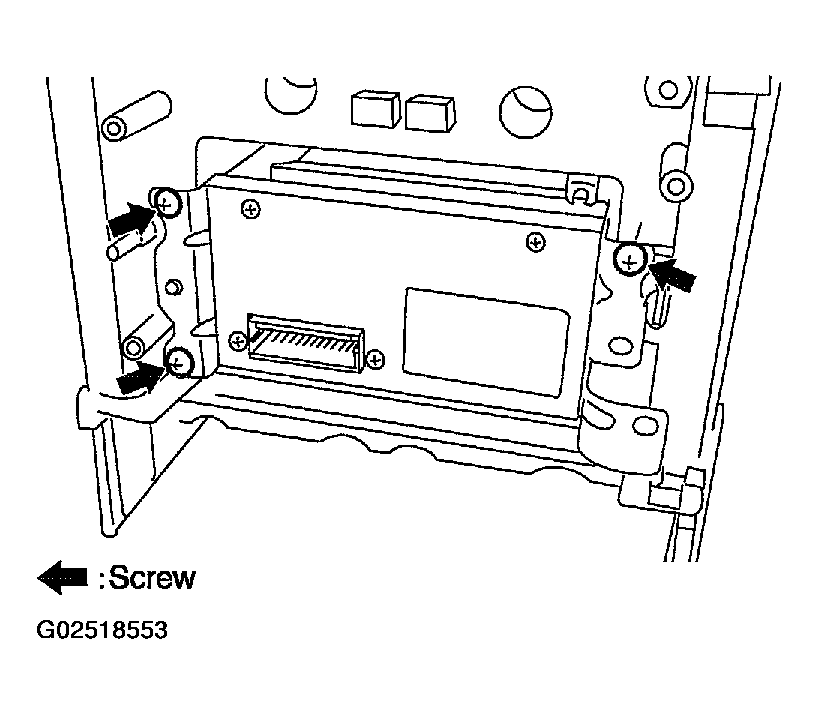

    Fig 1: Removing Power Source Box
    G02518553Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Unlock FPC (Flexible Print Circuit) connector from display.

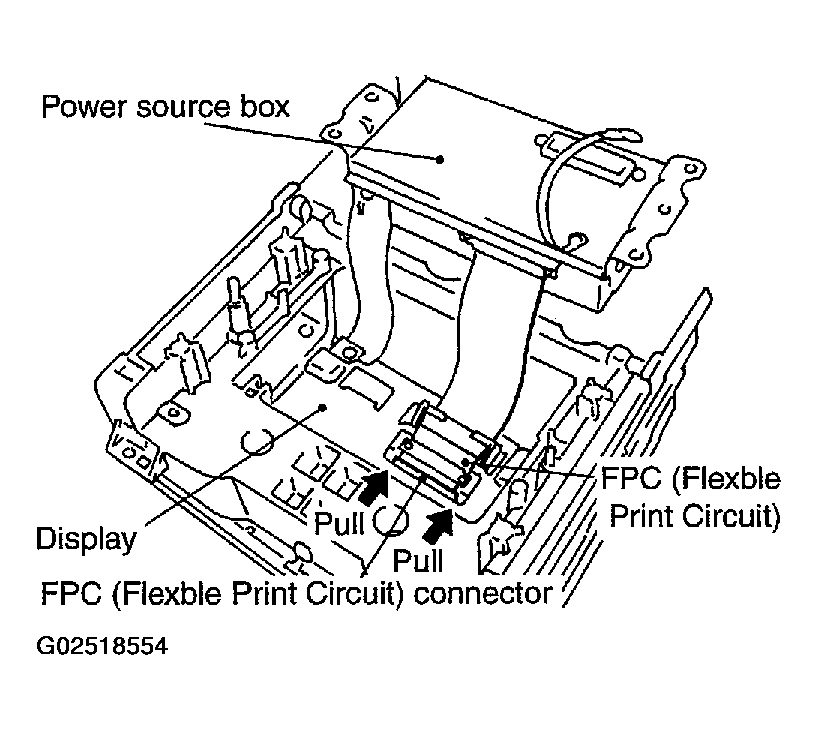

    Fig 2: Unlocking FPC (Flexible Print Circuit) Connector From Display
    G02518554Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove clips (2) fixing FPC (Flexible Print Circuit) at back side.
  5. Remove screw and remove ground circuit.

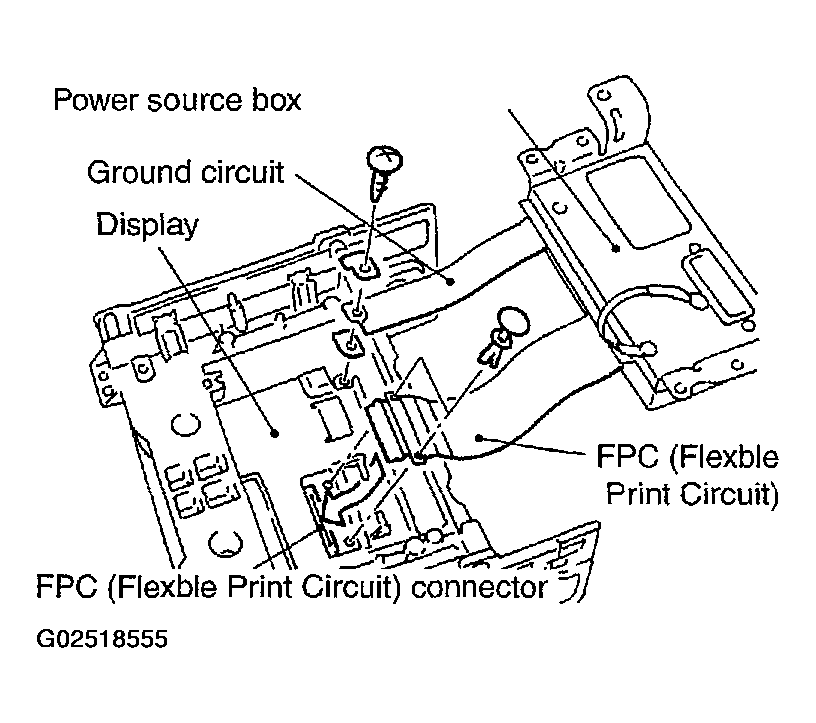

    Fig 3: Removing Ground Circuit
    G02518555Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Using a precision screwdriver, remove screws (RH/LH, back, and bottom) and lifting guide pin on display. Separate monitor cover and display.

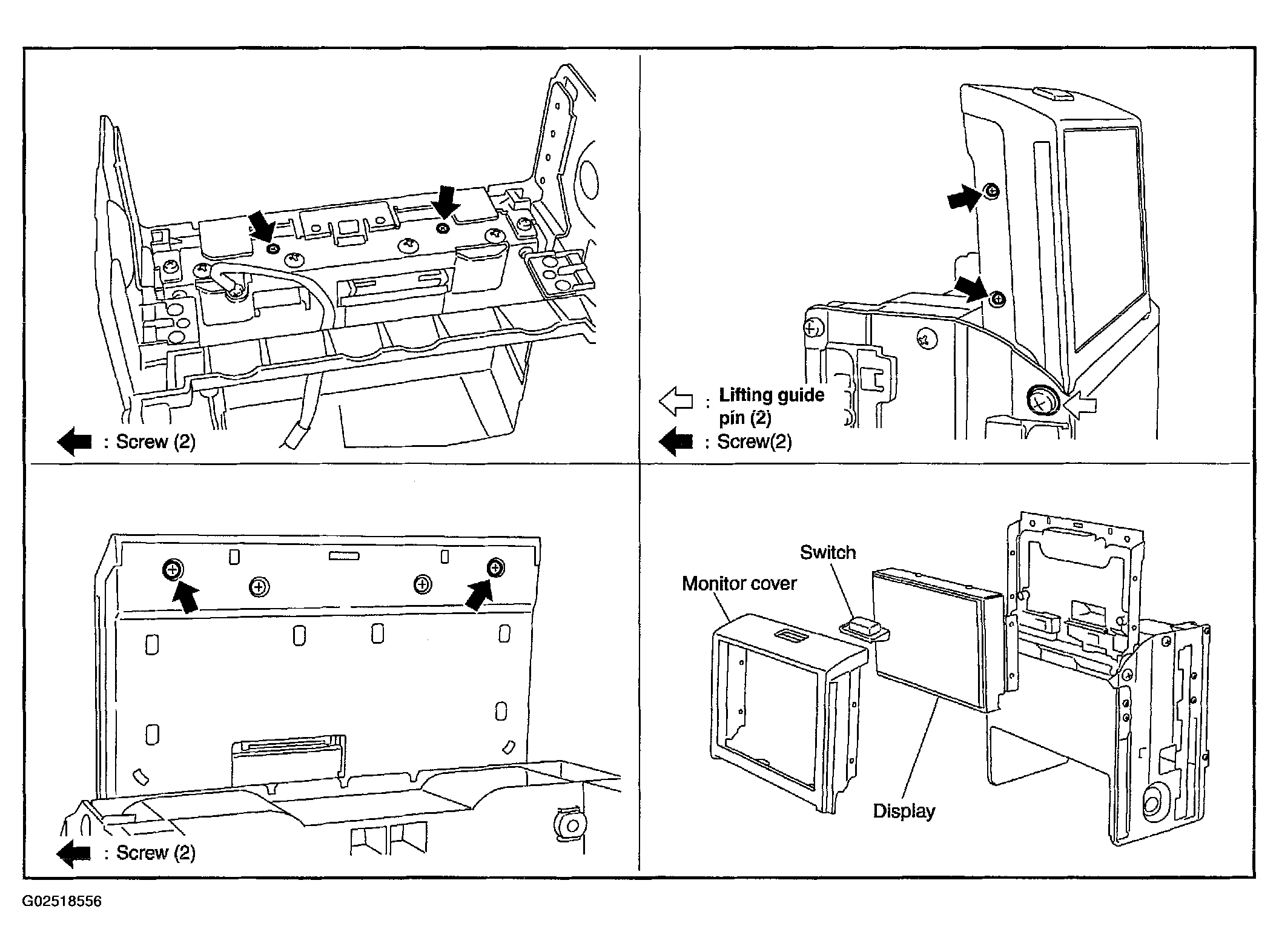

    Fig 4: Separating Monitor Cover And Display
    G02518556Courtesy of NISSAN MOTOR CO., U.S.A.
