VEHICLE SPEED OPERATION CHECK
Does speed meter is operated normally?

YES or NO
1. YES: GO TO 2.
2. NO: Check combination meter trouble diagnosis. Refer to METER/GAUGES OPERATION AND ODO/TRIP METER .
HARNESS CHECK
1. Turn the ignition switch OFF.
2. Disconnect NAVI control unit connector and combination meter connector.
3. Check continuity between NAVI control unit harness connector M57 terminal 8 (W/G) and combination meter harness connector M19 terminal 19 (W/G).
  Continuity should exist.
4. Check continuity NAVI control unit harness connector M57 terminal 8(W/G) and ground.
  Continuity should not exist.

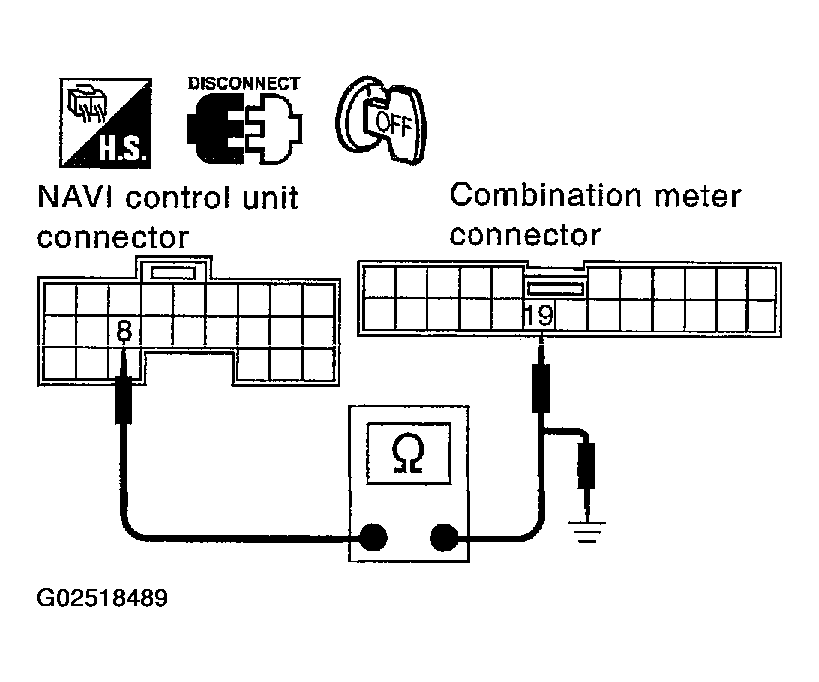

  Fig 1: Checking Continuity NAVI Control Unit Harness Connector M57 Terminal 8(W/G) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 3.
2. NG :
  - Check harness for open or short between NAVI control unit and combination meter.
  - Check connector housings for disconnected or loose terminals.
VEHICLE SPEED SIGNAL CHECK
1. Connect combination meter connector.
2. Drive vehicle at a constant speed.
3. Check the signal between NAVI control unit harness connector M57 terminal 8 (W/G) and ground with CONSULT-II or oscilloscope.
  8 (W/G) - Ground: Refer to Terminals and Reference Value for NAVI Control unit .

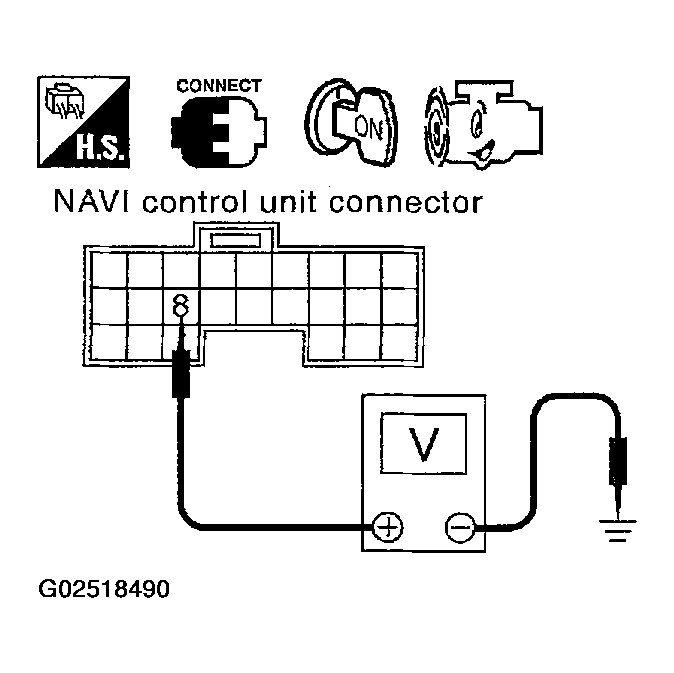

  Fig 2: Checking Signal Between NAVI Control Unit Harness Connector M57 Terminal 8 (W/G) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Replace NAVI control unit.
2. NG: Check combination meter system. Refer to METER/GAUGES OPERATION AND ODO/TRIP METER .
