Removal And Installation Of IPDM E/R: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove battery. Refer to REMOVAL AND INSTALLATION .
  2. Remove IPDM E/R cover A. While pushing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/R.

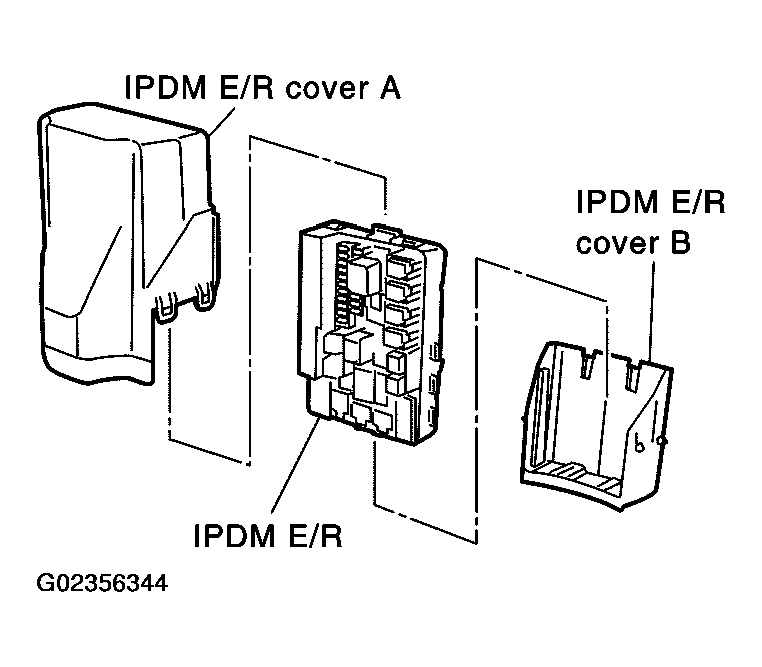

    Fig 1: Identifying IPDM E/R Covers
    G02356344Courtesy of NISSAN MOTOR CO., U.S.A.

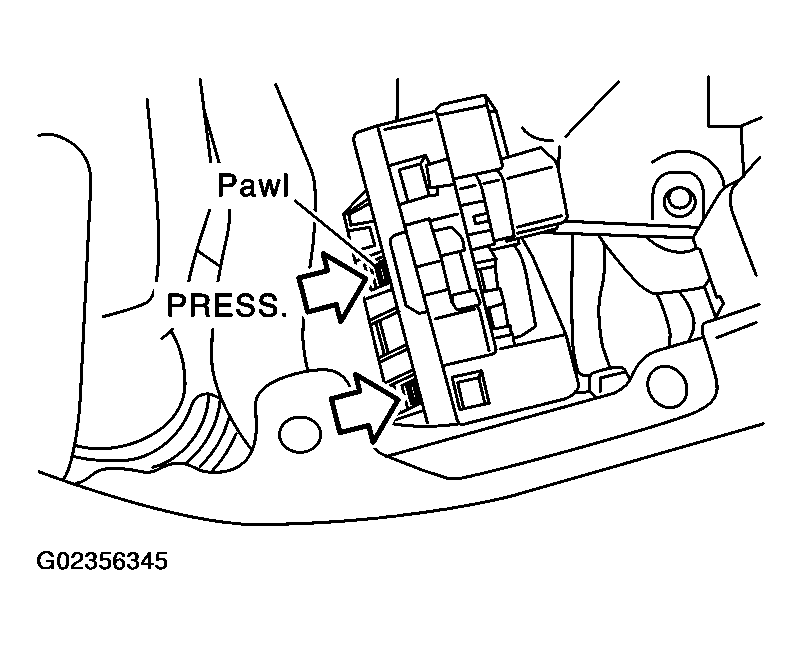

    Fig 2: Pushing Pawls To Release IPDM E/R Cover
    G02356345Courtesy of NISSAN MOTOR CO., U.S.A.
  3. While pushing tabs on right and left side of IPDM E/R, remove IPDM E/R cover B from IPDM E/R.

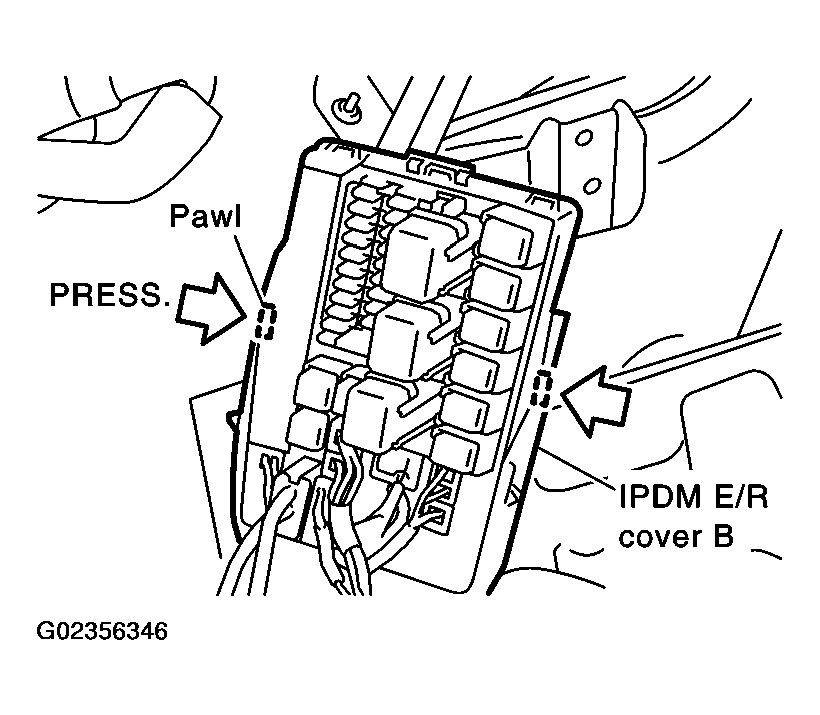

    Fig 3: Removing IPDM E/R Cover B
    G02356346Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove harness connector from IPDM E/R.
