Description Of "Can Diag Support MNTR" Screen Fro Intelligent Key Unit

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

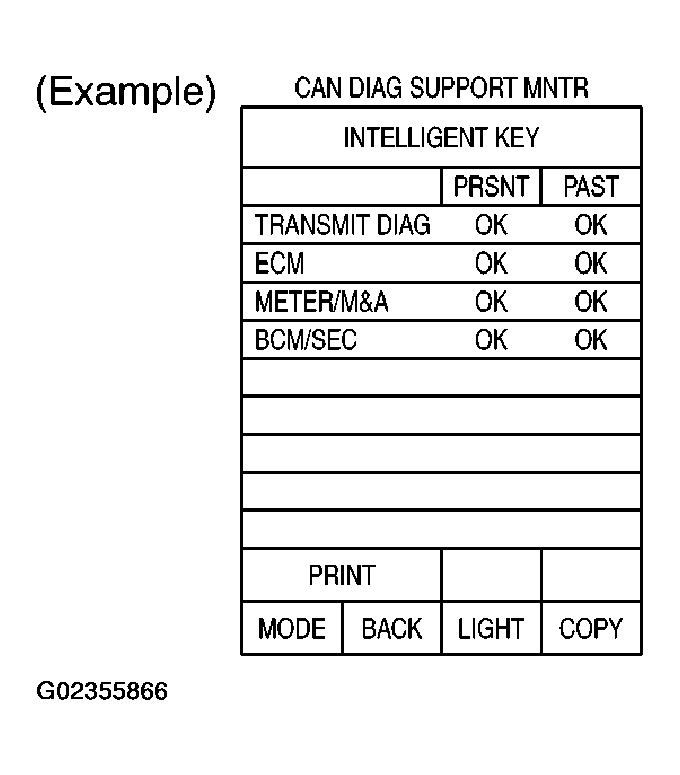

Fig 1: CAN DIAG SUPPORT MNTR Screen For Intelligent Key Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

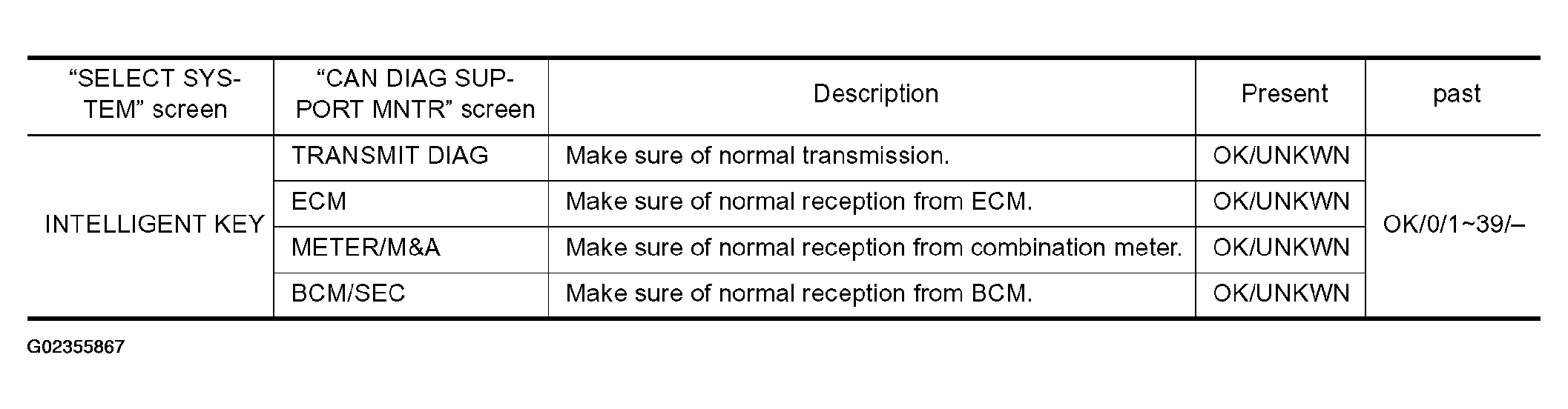

Fig 2: CAN DIAG SUPPORT MNTR Screen For Intelligent Key Unit Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.

Display Results (Present)

OK: Normal
UNKWN: The diagnosed unit does not transmit or receive the applicable data normally.

Display Results (Past)

OK: Normal
O: There is malfunction now.
1 - 39: Displays when it is normal at present and finds malfunction in the past. It increases like 0 --> 1 --> 2...38 --> 39 after returning to the normal condition whenever IGN OFF ON. If it is over 39, it is fixed to 39 until the self-diagnostic results are erased. It returns to 0 when malfunction is detected again in the process.
-: Undiagnosed
