Limit Switch Circuit Check (Driver Side)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DRIVER DOOR MAIN SWITCH LIMIT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window motor (front driver side) connector and ground.

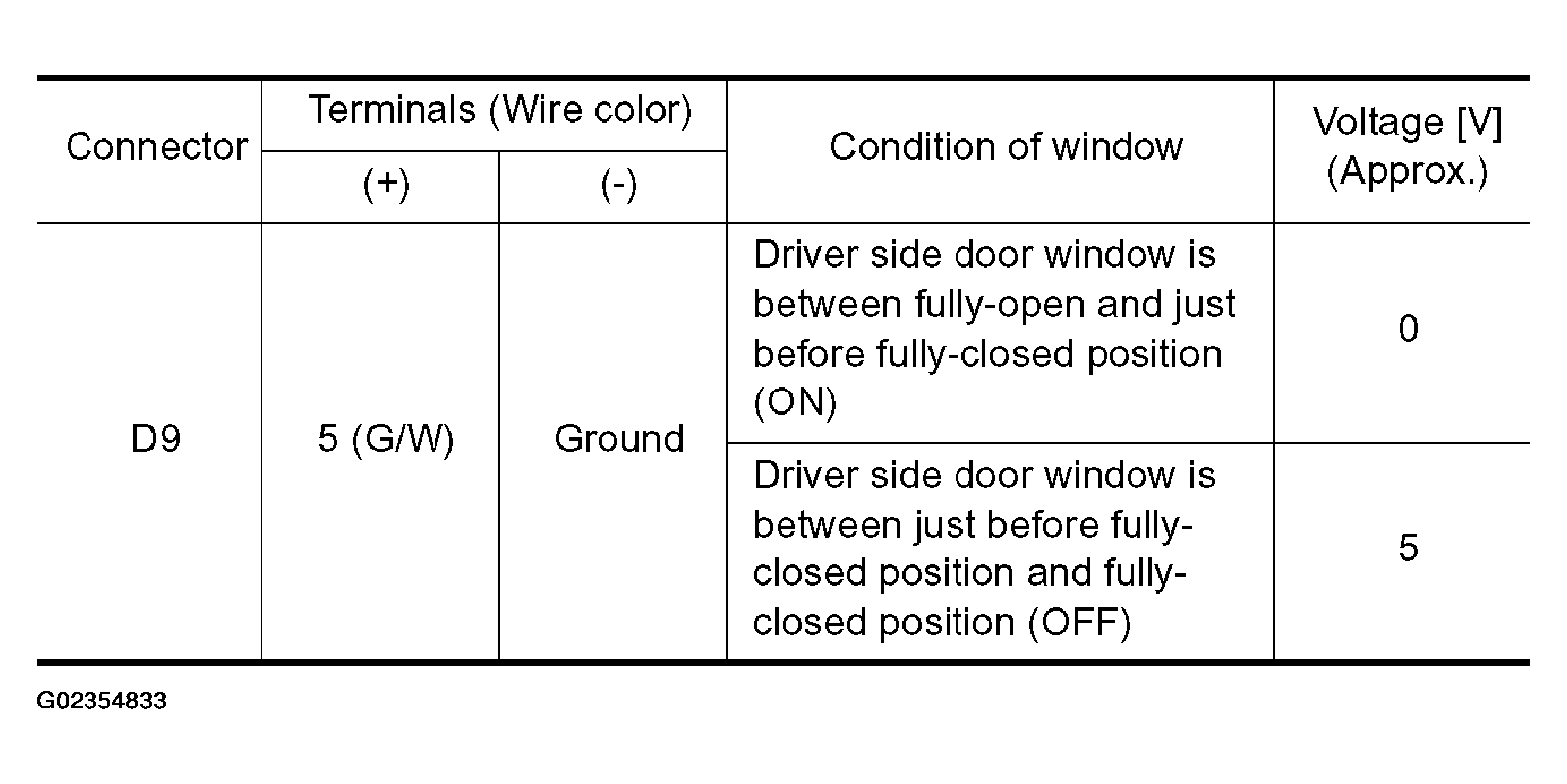

  Fig 1: Voltage Check Between Power Window Motor (Front Driver Side) Connector And Ground Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

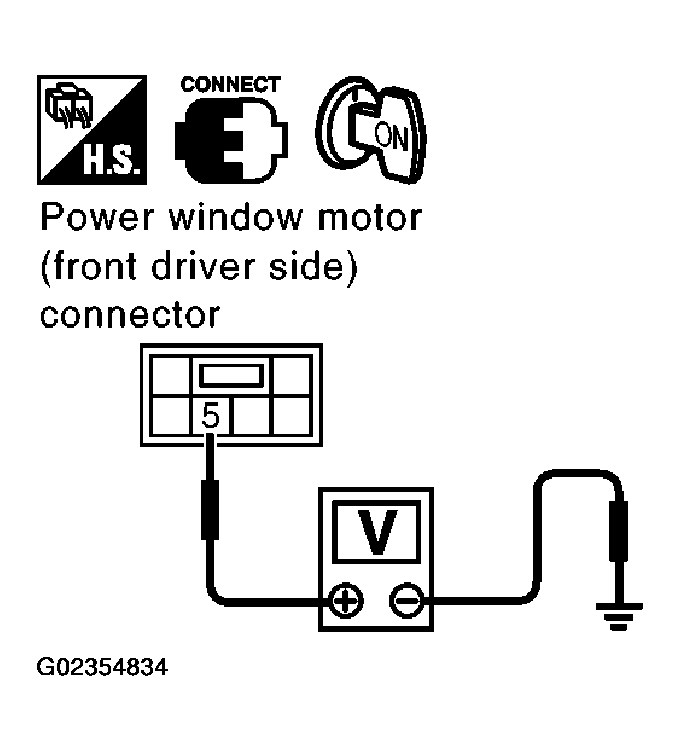

  Fig 2: Checking Voltage Between Power Window Motor (Front Driver Side) Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: Limit SW circuit is OK.
2. NG: GO TO 2.
CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window motor (front driver side) connector.
3. Check continuity between power window motor (front driver side) connector D9 terminal 6 and ground.
  6 (W/B) - Ground: Continuity should exist.
OK or NG
1. OK: GO TO 3.
2. NG: GO TO 3.

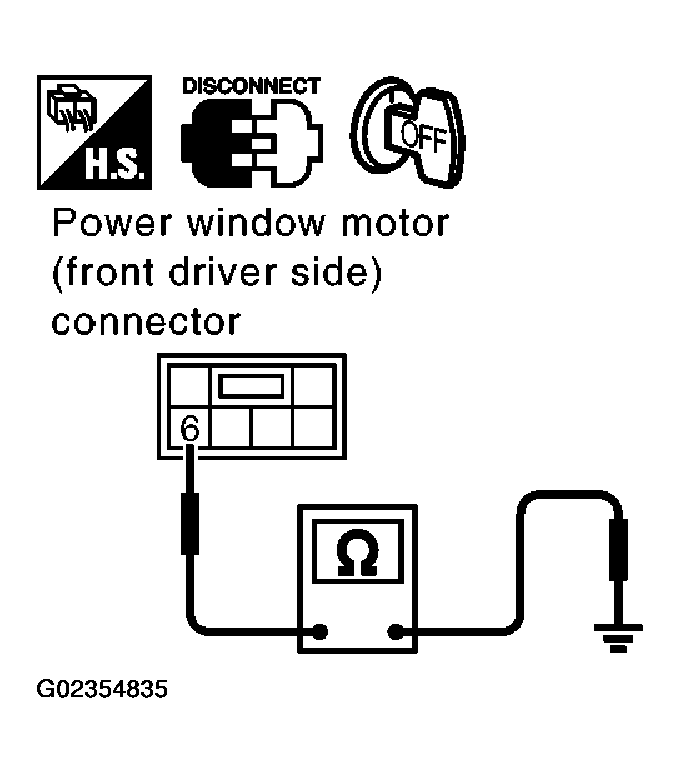

  Fig 3: Checking Continuity Between Power Window Motor (Front Driver Side) Connector D9 Terminal 6 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect power window main switch connector.
2. Check continuity between power window motor (front driver side) connector D9 terminal 6 and power window main switch connector D7 terminal 2.
  6 (W/B) - 2 (W/B): Continuity should exist.
OK or NG
1. OK: Replace power window main switch.
2. NG: Repair or replace harness.

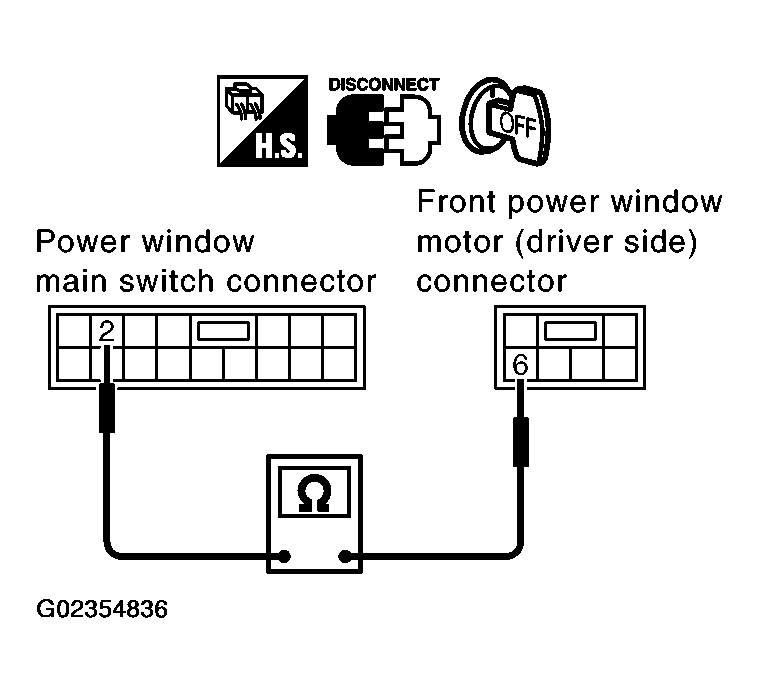

  Fig 4: Checking Continuity Between Power Window Motor (Front Driver Side) Connector D9 Terminal 6 And Power Window Main Switch Connector D7 Terminal 2
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK HARNESS CONTINUITY
1. Disconnect power window main switch connector.
2. Check continuity between power window motor (front driver side) connector D9 terminal 5 and power window main switch connector D7 terminal 9.
  5 (G/W) - 9 (G/W): Continuity should exist.
OK or NG
1. OK: GO TO 5.
2. NG: Repair or replace harness.

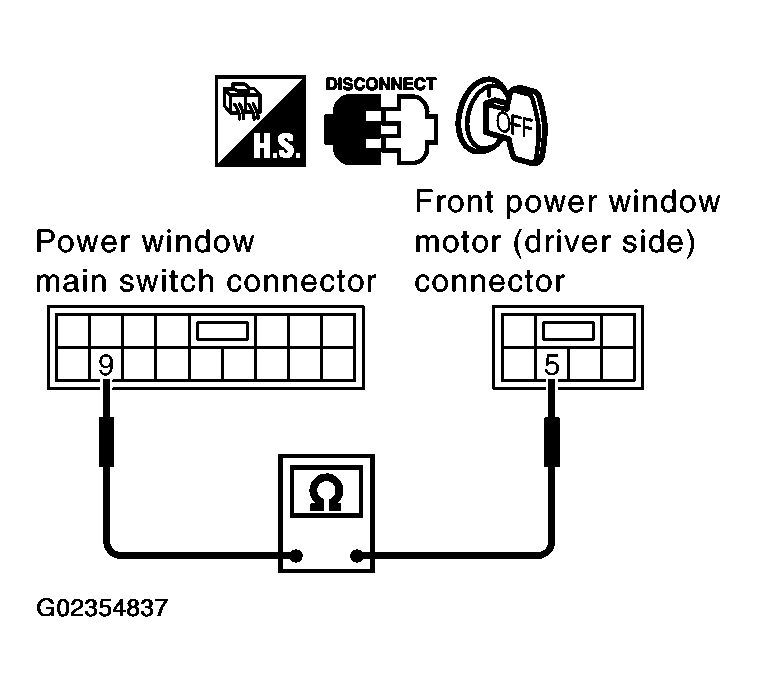

  Fig 5: Checking Continuity Between Power Window Motor (Front Driver Side) Connector D9 Terminal 5 And Power Window Main Switch Connector D7 Terminal 9
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2. Turn ignition switch ON.
3. Check voltage between power window main switch connector D7 terminal 9 and ground.
  9 (G/W) - Ground: Approx. 5V
OK or NG
1. OK: Replace power window motor (front driver side).
2. NG: Replace power window main switch.

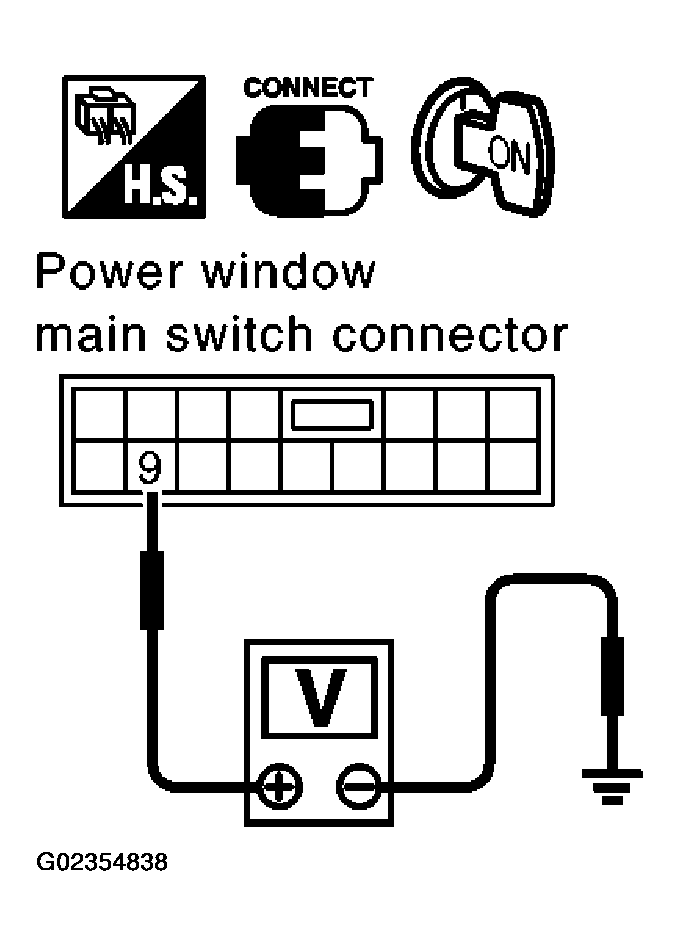

  Fig 6: Checking Voltage Between Power Window Main Switch Connector D7 Terminal 9 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
