Terminal And Reference Value For Power Window Main Switch/With Front Left And Right Power Window Anti-Pinch System

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

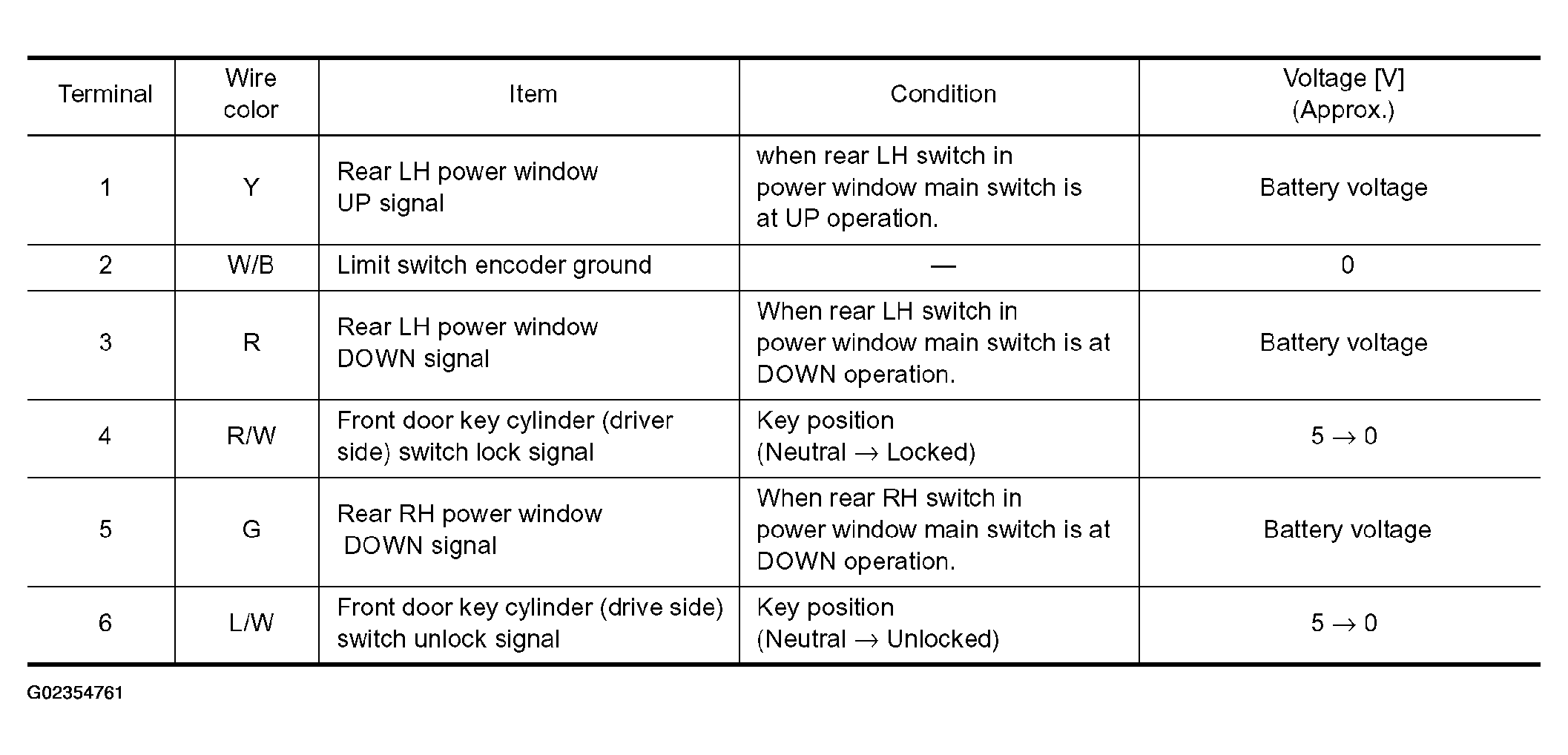

Fig 1: Terminal And Reference Value For Power Window Main Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

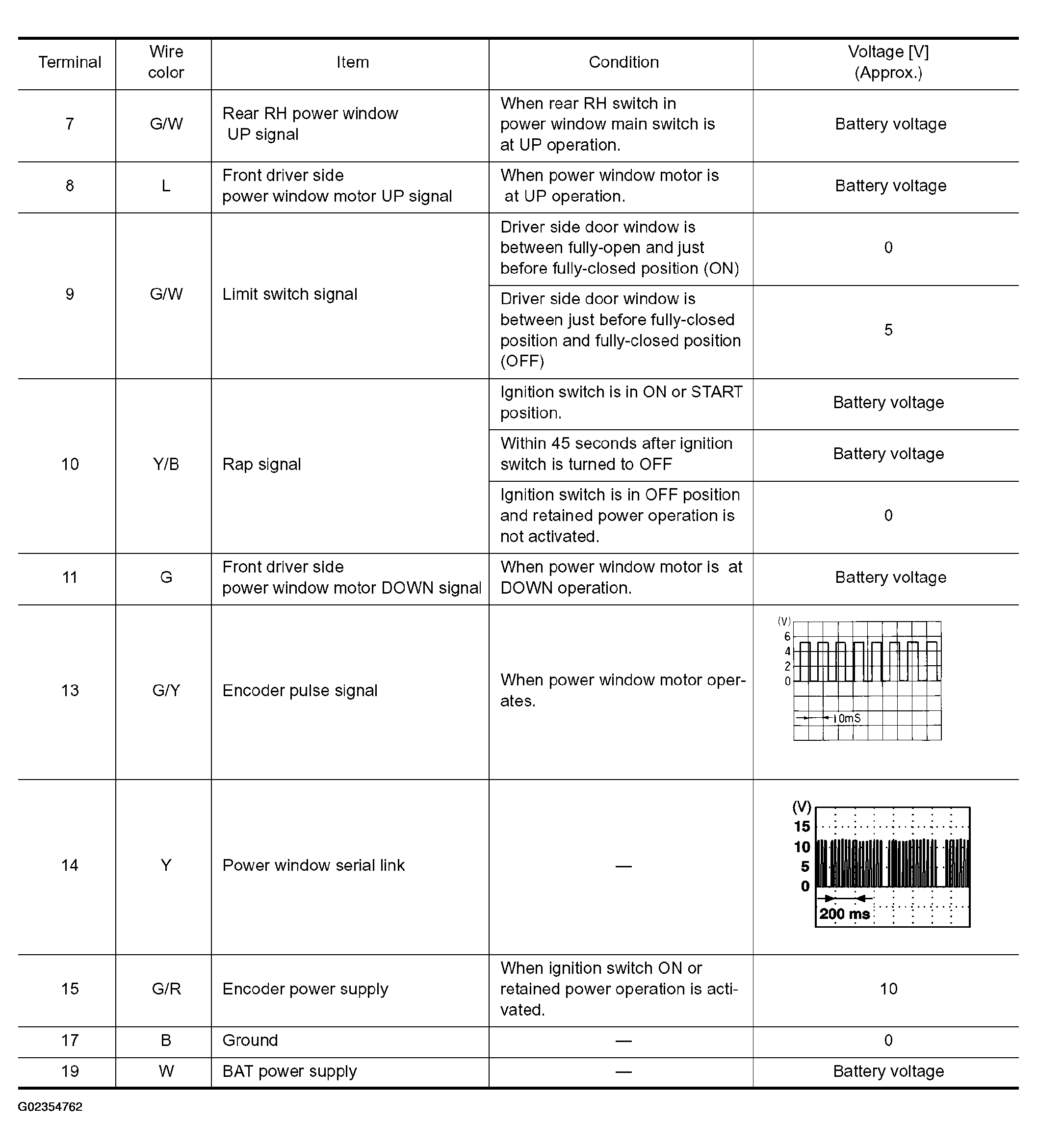

Fig 2: Terminal and Reference Value for Power Window Main Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
