Component (Without Automatic Drive Positioner)

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

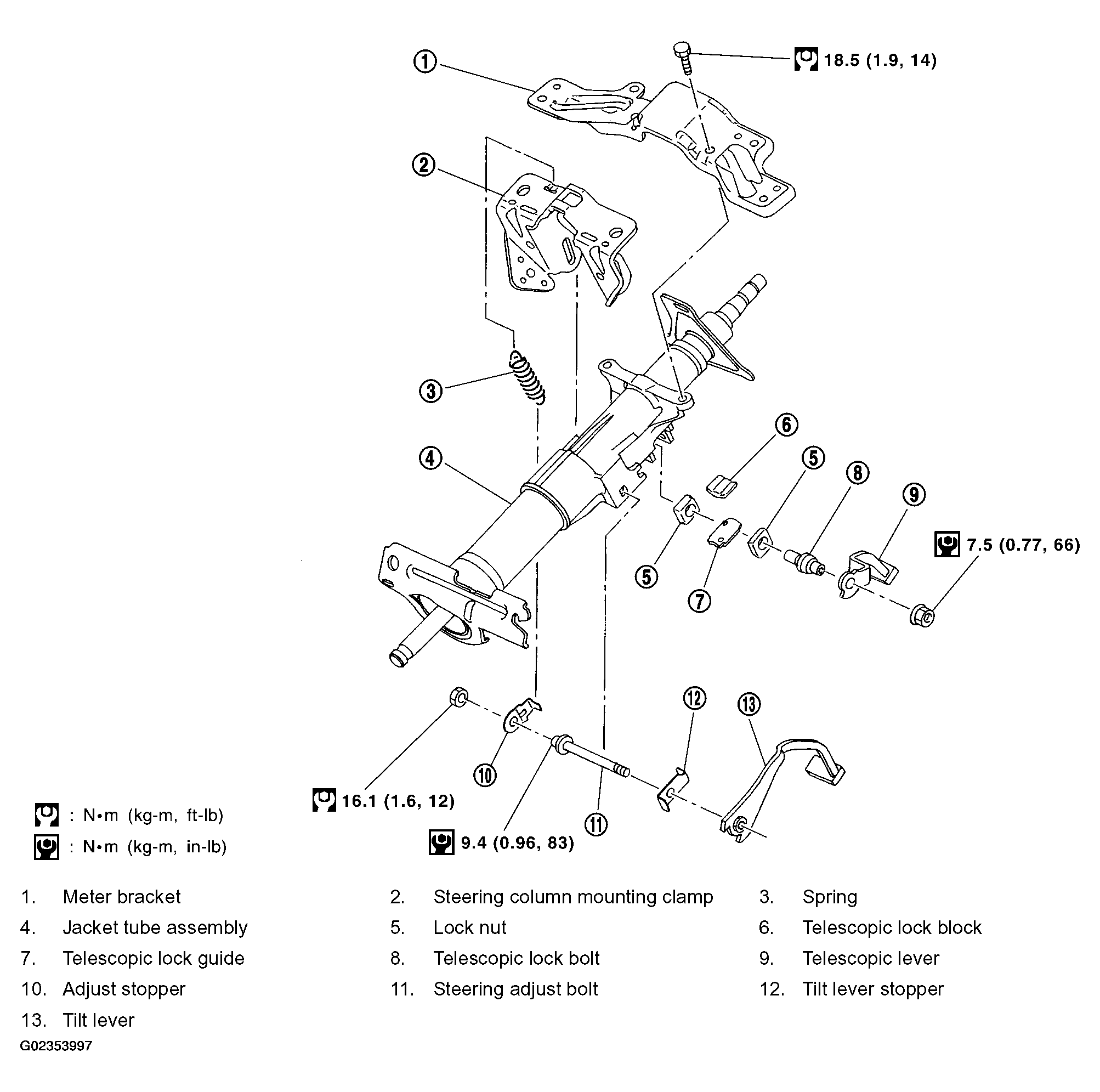

Fig 1: Steering Column Without Automatic Drive Positioner With Torque Specifications
G02353997Courtesy of NISSAN MOTOR CO., U.S.A.
