Check KEYFOB Battery And Function

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEYFOB BATTERY
1. Remove keyfob battery. Refer to "Keyfob Battery Replacement ".
2. Measure voltage between battery positive and negative terminals.
  1. Voltage: 2.5V - 3.0V
NOTE: Keyfob does not function if battery is not set correctly.

OK or NG
1. OK: GO TO 2
2. NG: Replace battery.
Fig 1: Measuring Voltage Between Battery Positive And Negative Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK KEYFOB FUNCTION
With CONSULT-II

Check keyfob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

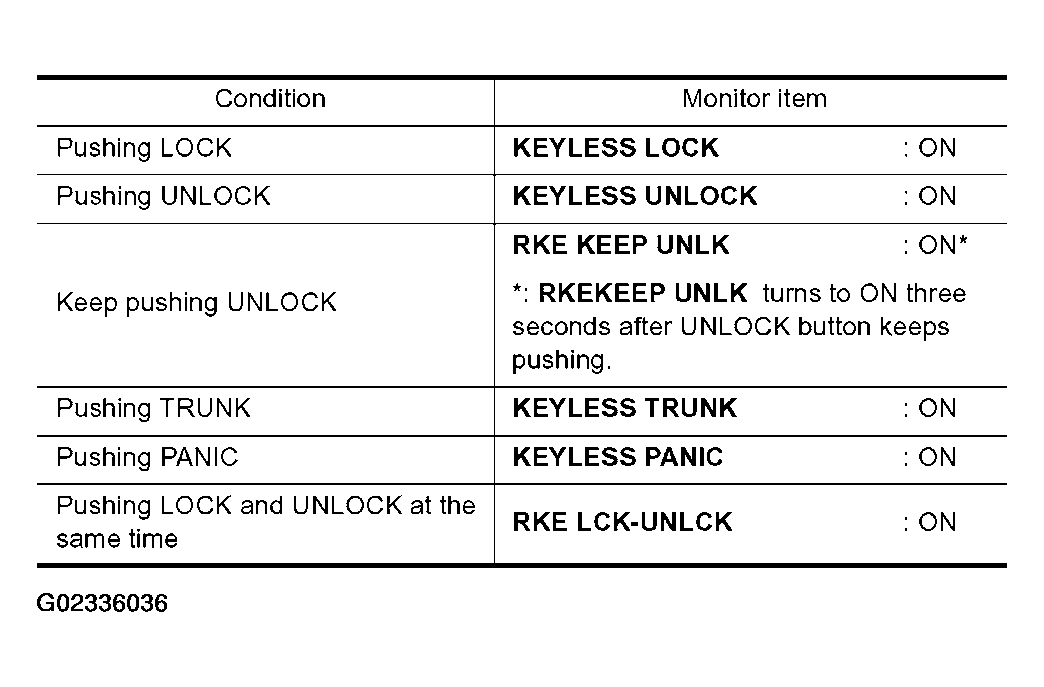

Fig 2: Condition And Monitor Item Reference Data Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

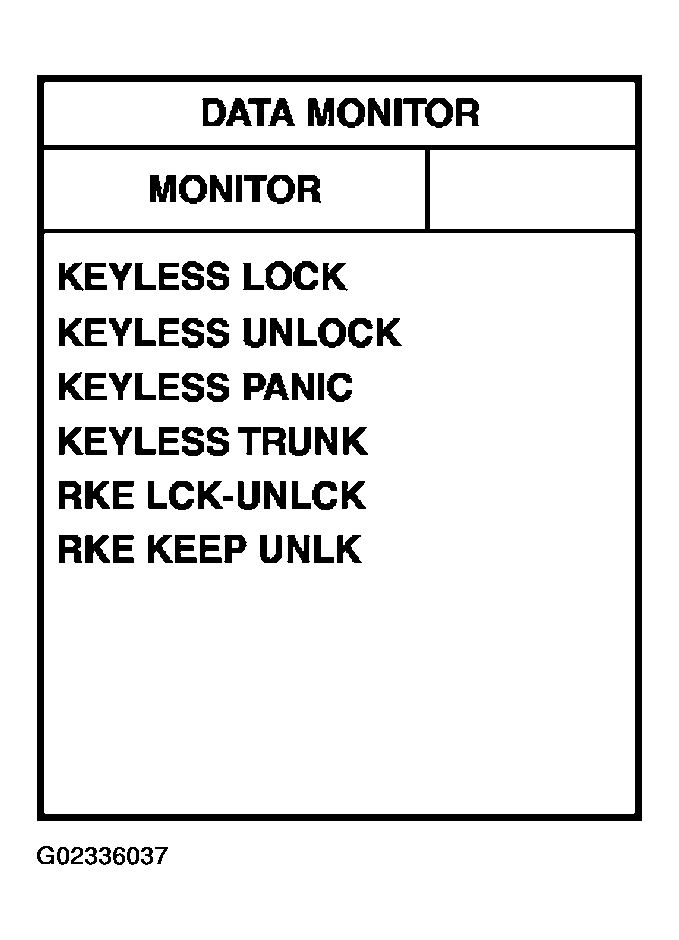

Fig 3: Checking Keyfob Function In "DATA MONITOR" Mode With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Keyfob is OK.
2. NG: Replace keyfob.
