Section 612 (Remote Keyless Entry System - Coupe): Schematic
WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

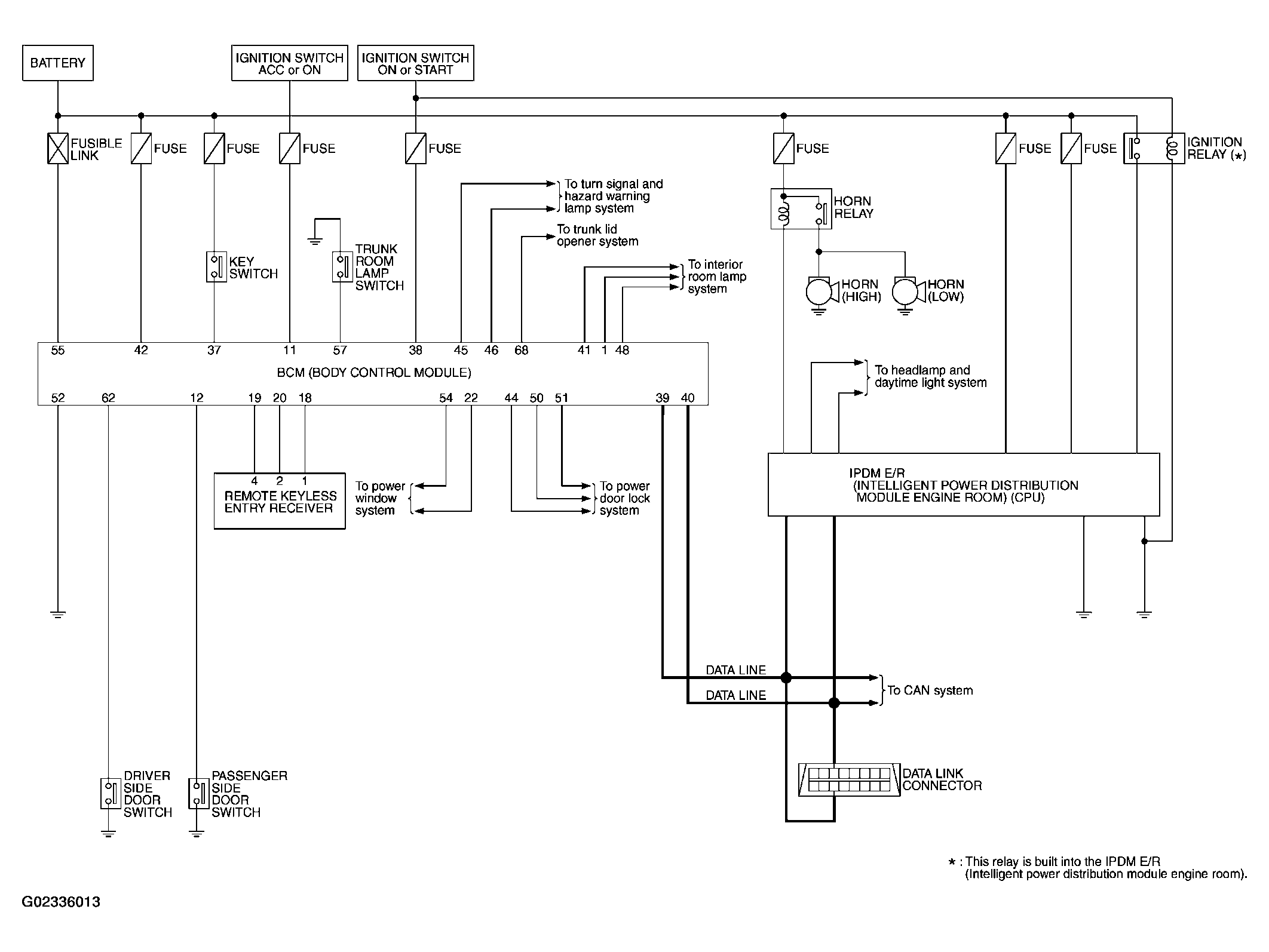

Fig 1: Schematic Diagram Of Remote Keyless Entry System
