Terminals And Reference Value For IPDM E/R
WARNING:
This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

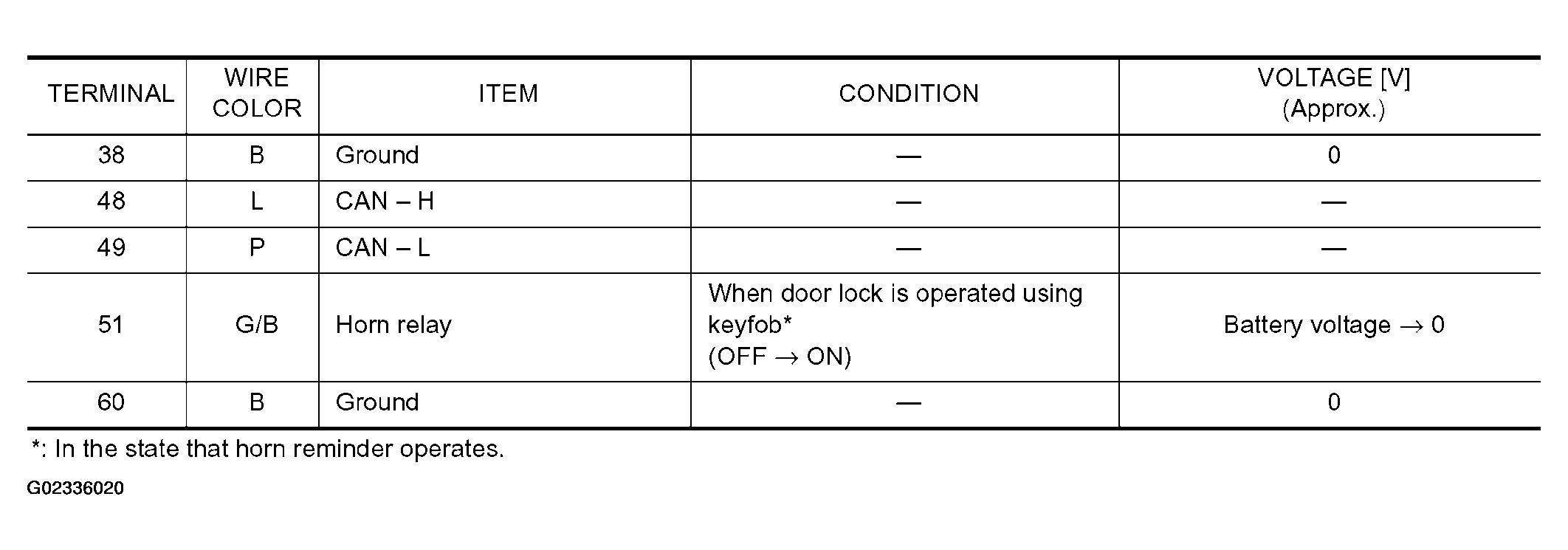

Fig 1: Terminals and Reference Value for IPDM E/R Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
