Passenger Side Power Window Motor Circuit Check

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window sub-switch connector and ground.

  Fig 1: Power Window Sub-Switch Connector And Ground Voltage Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

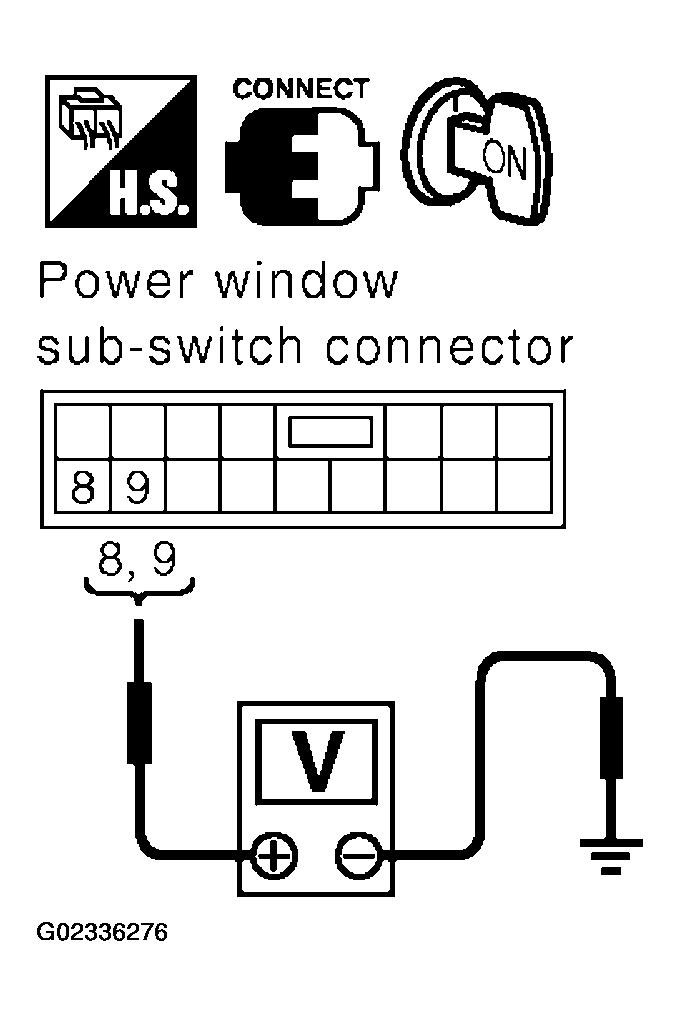

  Fig 2: Checking Voltage Between Power Window Sub-Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 2.
2. NG: Replace power window sub-switch.
CHECK POWER WINDOW MOTOR (PASSENGER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch and passenger side power window motor connector.
3. Check continuity between power window sub-switch connector D43 terminals 8, 9 and passenger side power window motor connector D38 terminals 1, 2.
  9 (G) - 1 (G): Continuity should exist.

  8 (L) - 2 (L): Continuity should exist.
OK or NG
1. OK: Replace passenger side power window motor.
2. NG: Repair or replace harness.
Fig 3: Checking Continuity Between Power Window Sub-Switch Connector D43 Terminals And Passenger Side Power Window Motor Connector D38 Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
