Vehicle Signals

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

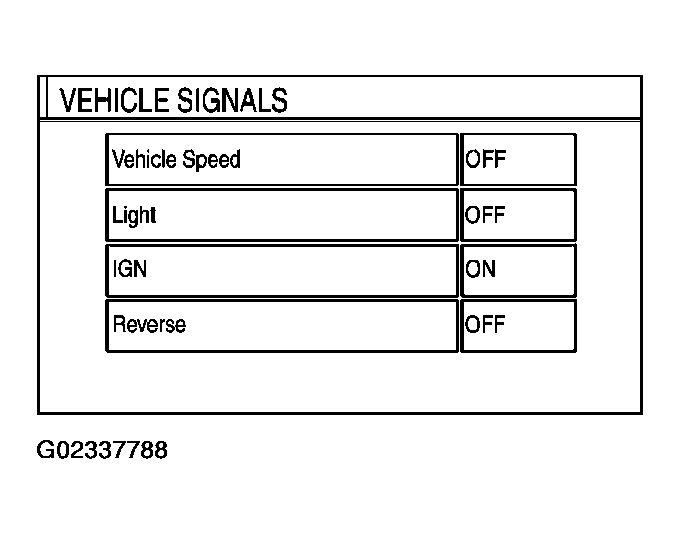

Fig 1: Vehicle Signals Display
Courtesy of NISSAN MOTOR CO., U.S.A.

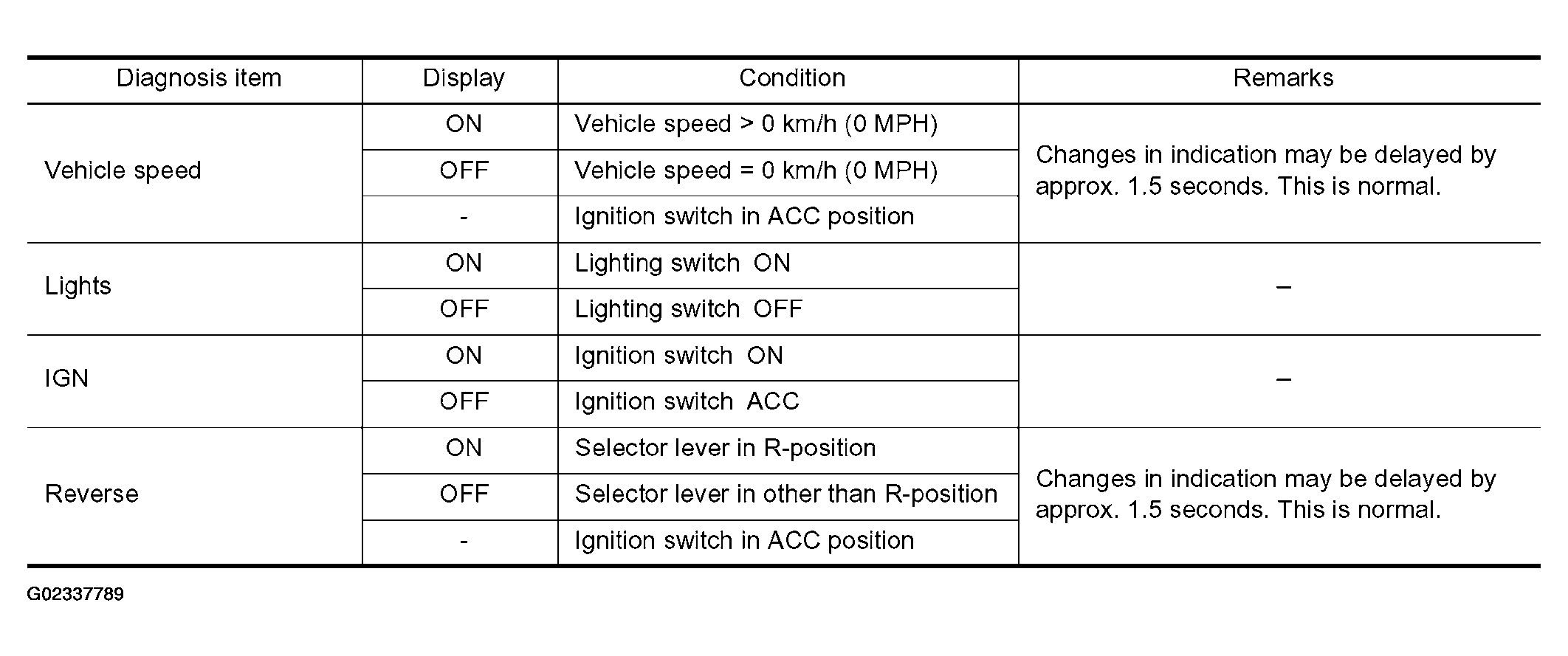

Fig 2: Diagnostic Item - Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to "Vehicle Speed Signal Check ".
If lights are NG, refer to "Illumination Signal Check ".
If IGN is NG, refer to "Ignition Signal Check ".
If reverse is NG, refer to "Reverse Signal Check (With A/T) " "Reverse Signal Check (With M/T) ".
