Map Display

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Function of each icon is as follows:

Azimuth indication
Position marker
- The tip of the arrow shows the current position. The shaft of the arrow indicates the direction in which the vehicle is traveling.
GPS reception signal (indicates current reception conditions.)
Distance display (shows the distance in a reduced scale.)

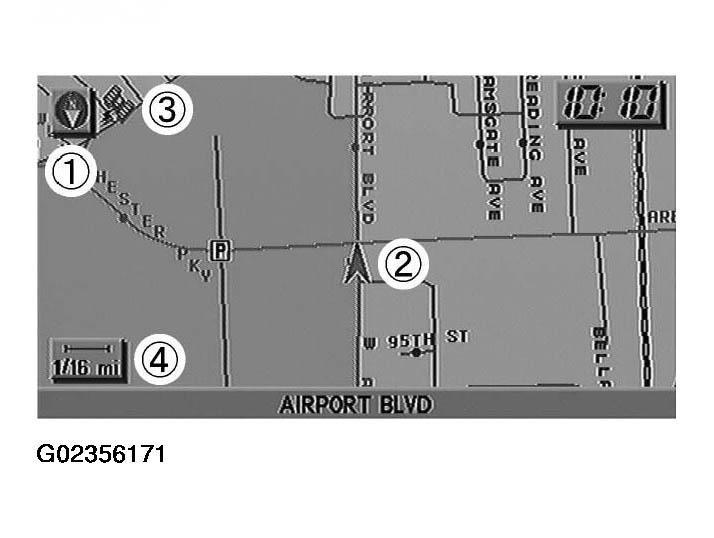

Fig 1: MAP Display
Courtesy of NISSAN MOTOR CO., U.S.A.
