CONSULT-II Basic Operation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

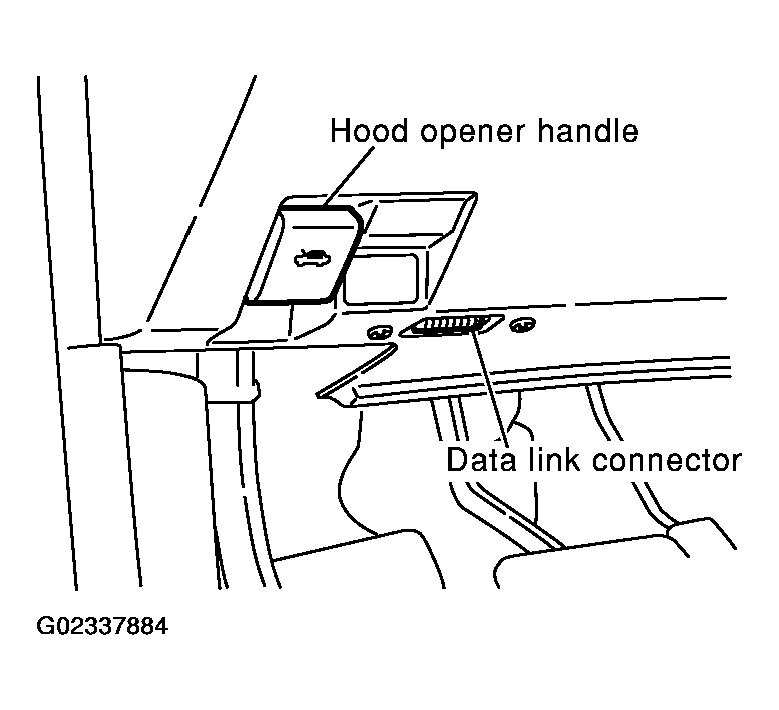

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START (NISSAN BASED VHCL).

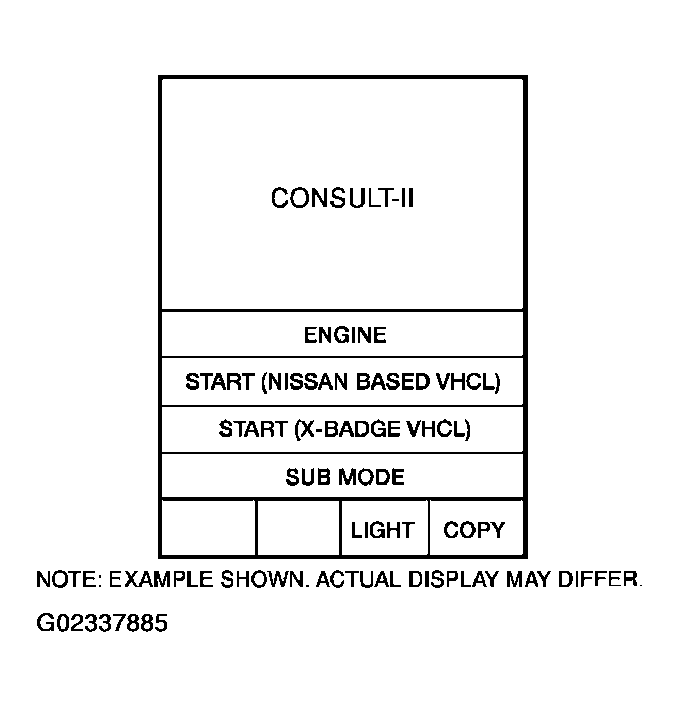

Fig 2: Viewing Typical CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch IPDM E/R on SELECT SYSTEM screen.
- If IPDM E/R is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

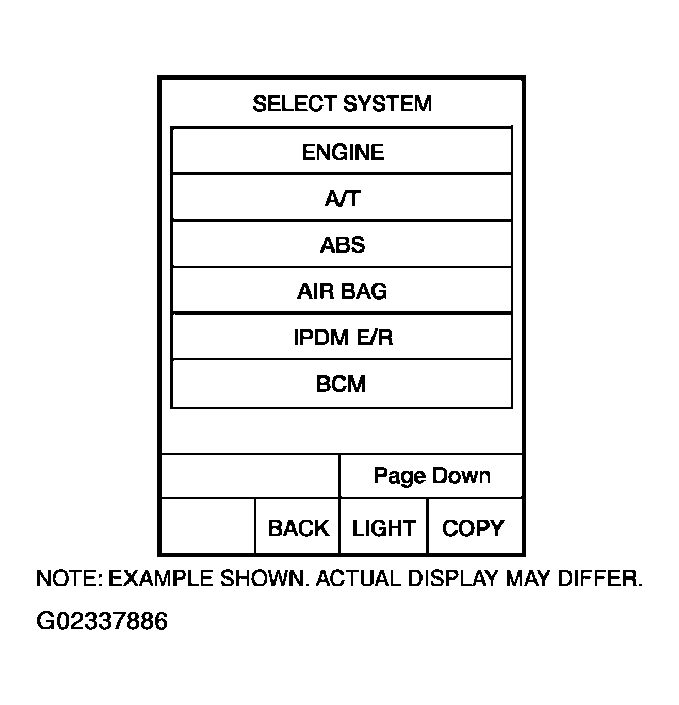

Fig 3: Viewing 'Select System' Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the SELECT DIAG MODE screen.

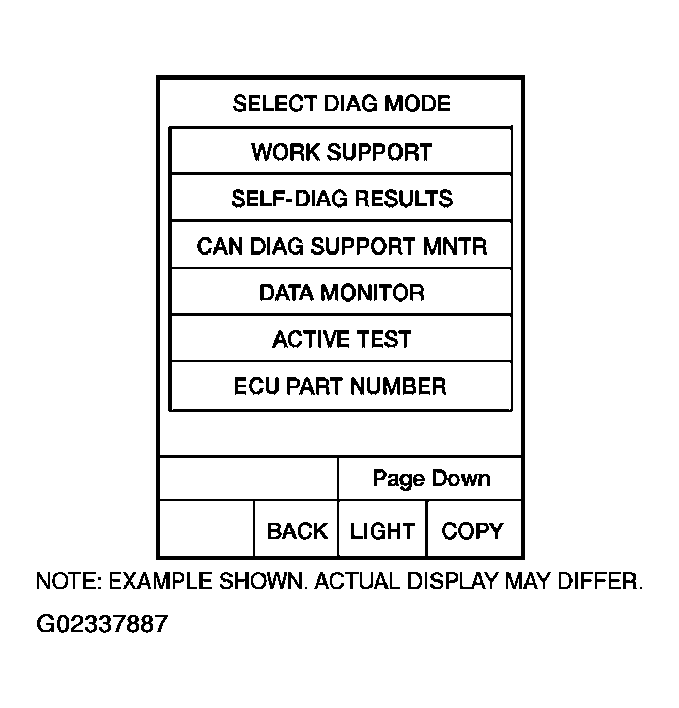

Fig 4: Viewing 'Select Diag Mode' Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
