Removal And Installation Of IPDM E/R: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery. Refer to BATTERY .
Remove IPDM E/R cover A. While pushing pawl on backside of IPDM E/R cover B toward vehicle front to unlock, lift up IPDM E/R.

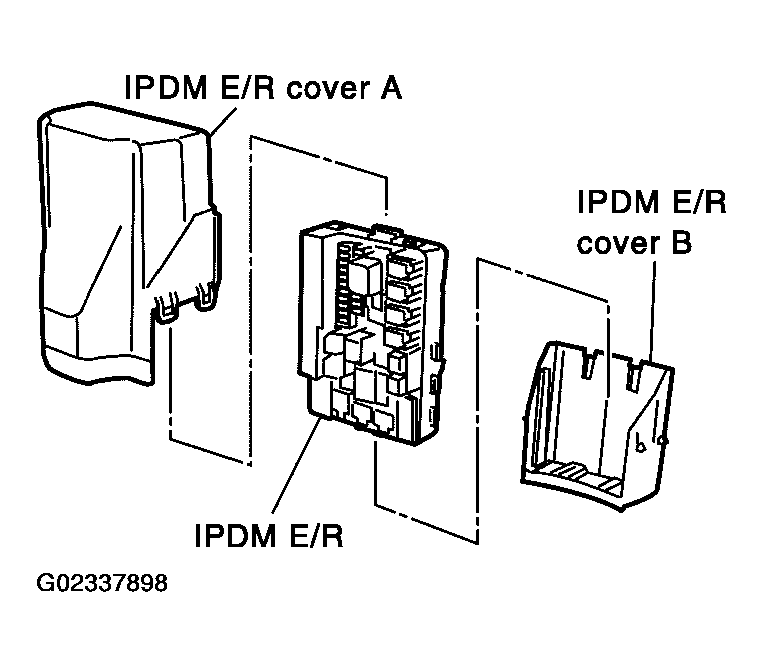

Fig 1: Identifying IPDM E/R Covers
Courtesy of NISSAN MOTOR CO., U.S.A.

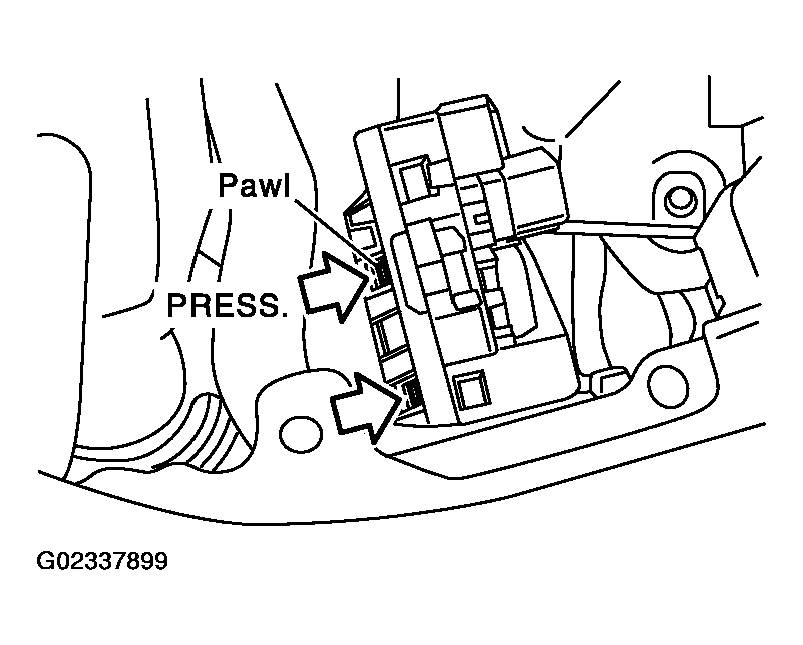

Fig 2: Locating Pawl Pressing Direction
Courtesy of NISSAN MOTOR CO., U.S.A.
While pushing tabs on right and left side of IPDM E/R, remove IPDM E/R, cover B from IPDM E/R.

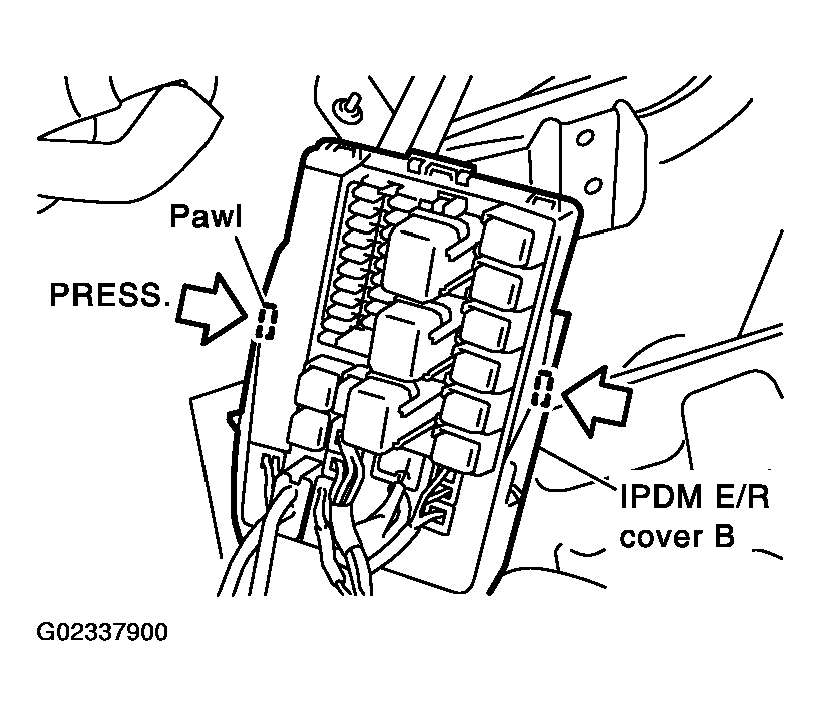

Fig 3: Removing IPDM E/R Cover B
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove harness connector from IPDM E/R.
