CONSULT-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "ON".
Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.

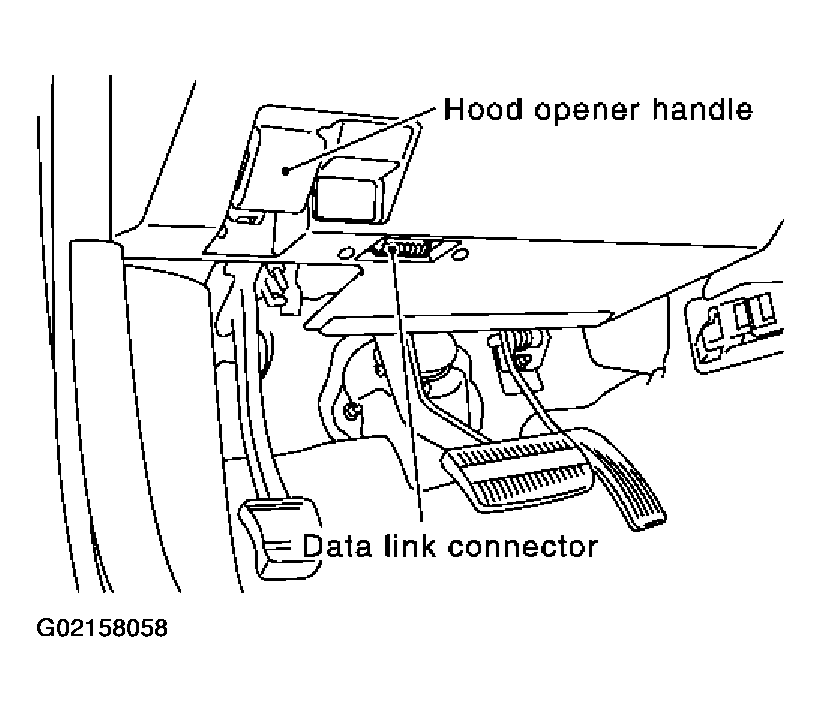

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON"
Touch "START (NISSAN BASED VHCL)"

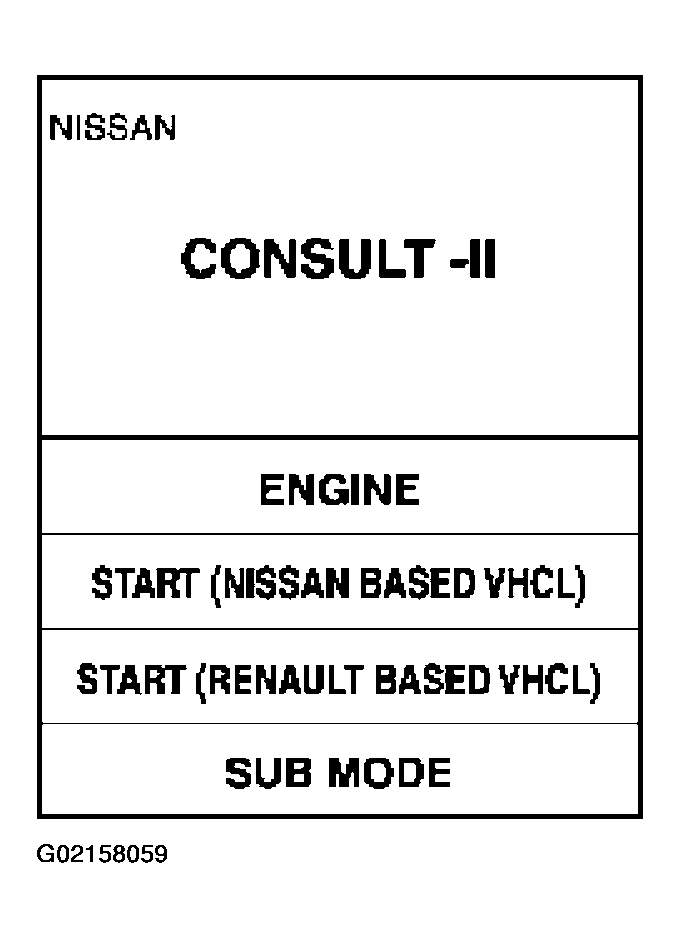

Fig 2: Touching "START (NISSAN BASED VHCL)" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM"
If "BCM" is not indicated, go to Refer to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

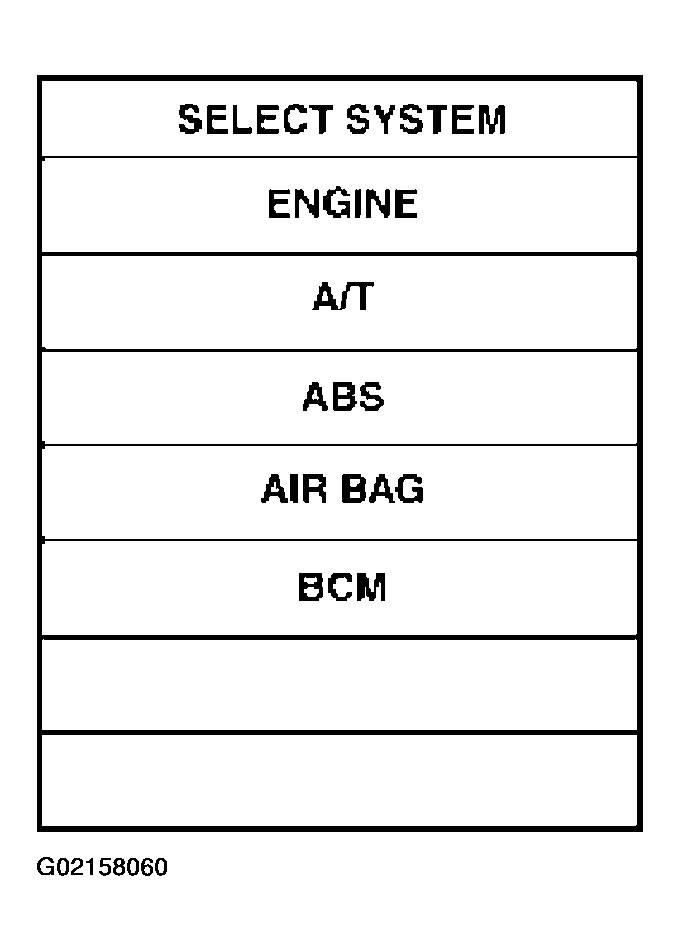

Fig 3: Touching "BCM" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

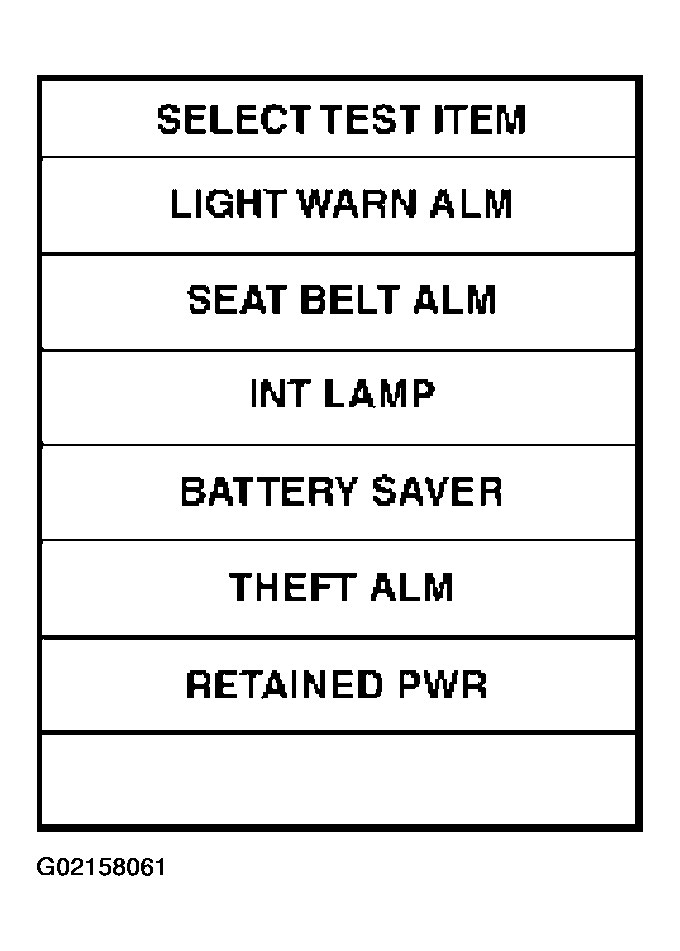

Fig 4: Touching "RETAINED PWR" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST" and "WORK SUPPORT" are available.

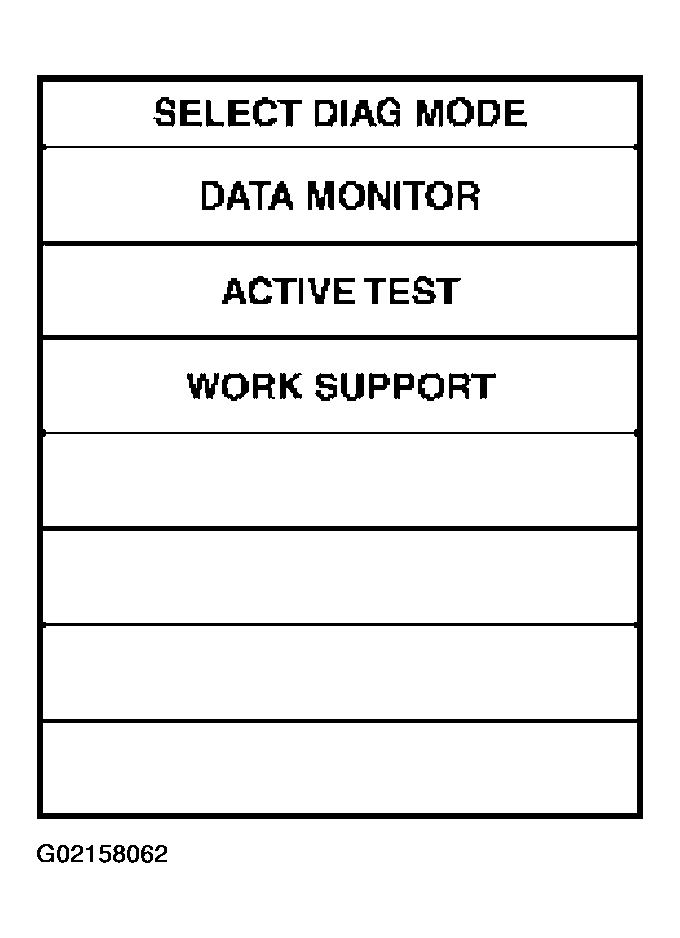

Fig 5: Selecting Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
