Vehicle Signals

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Fig 1: VEHICLE SIGNALS Display
Courtesy of NISSAN MOTOR CO., U.S.A.

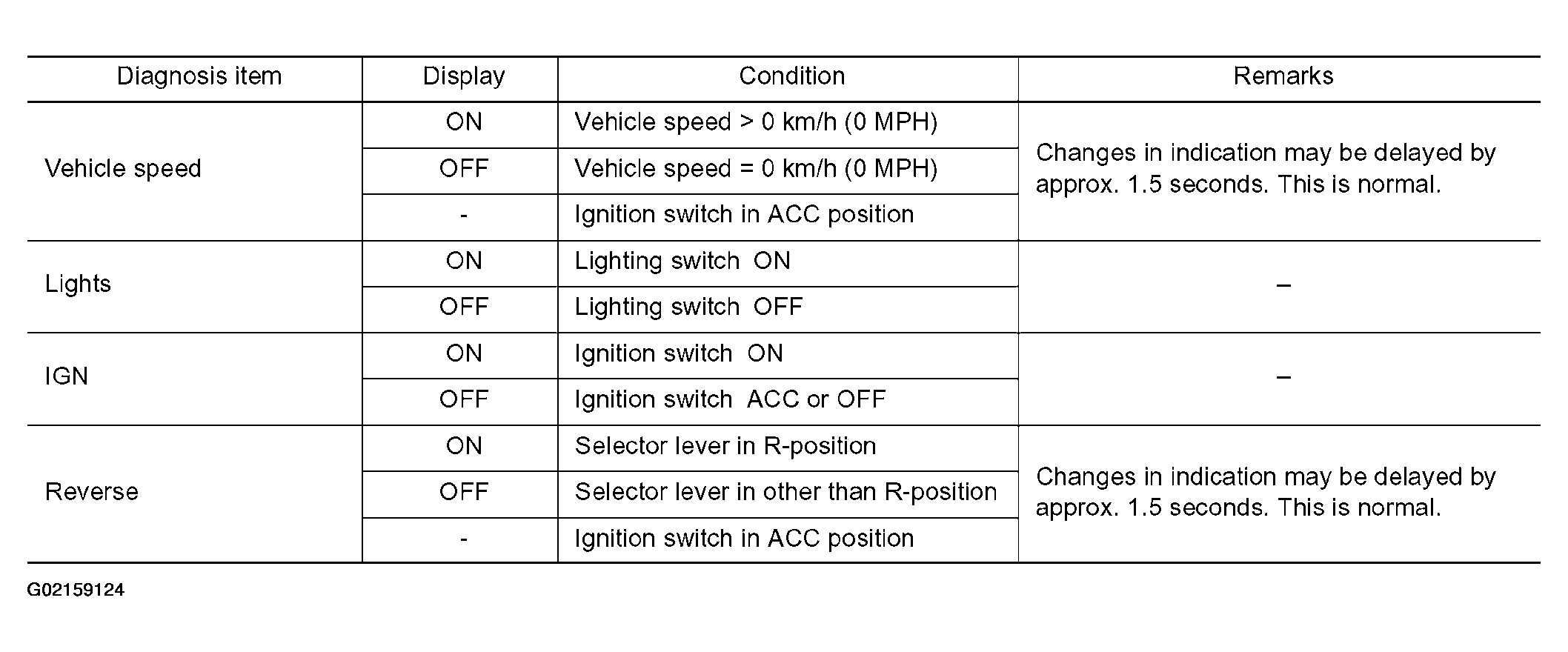

Fig 2: Diagnosis Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to VEHICLE SPEED SIGNAL CHECK .
If lights is NG, refer to ILLUMINATION SIGNAL CHECK .
If IGN is NG, refer to IGNITION SIGNAL CHECK .
If reverse is NG, refer to REVERSE SIGNAL CHECK (WITH A/T) or REVERSE SIGNAL CHECK (WITH M/T) .
