Removal and Installation of NAVI Control Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center box assy. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove screws (4), and remove NAVI control unit.

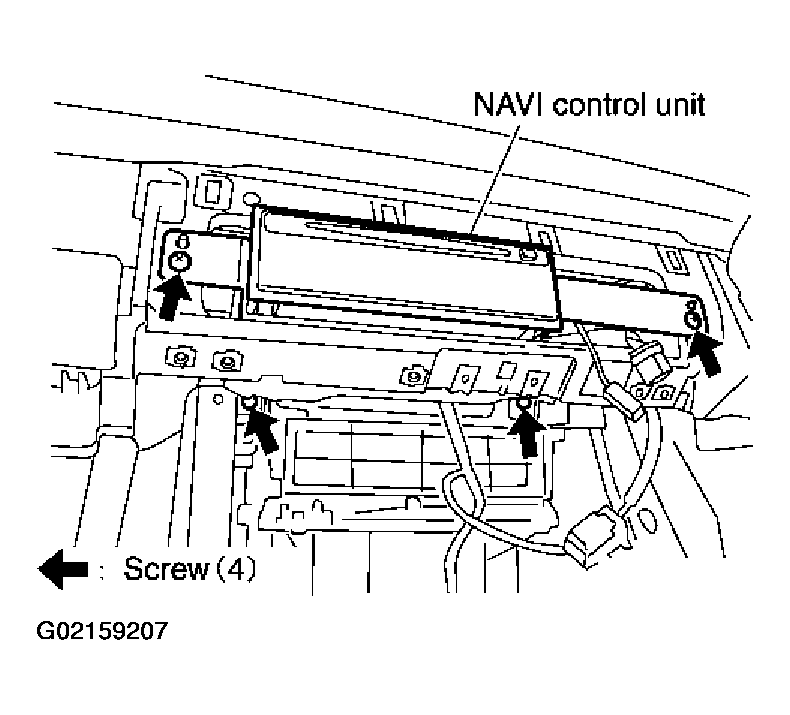

    Fig 1: Removing Screws (4) And Remove NAVI Control Unit
    G02159207Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws(4), and remove bracket.
    Fig 2: Removing Screws(4) And Remove Bracket
    G02159208Courtesy of NISSAN MOTOR CO., U.S.A.
