Display with Pushed "DEST" Switch

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Easy Mode

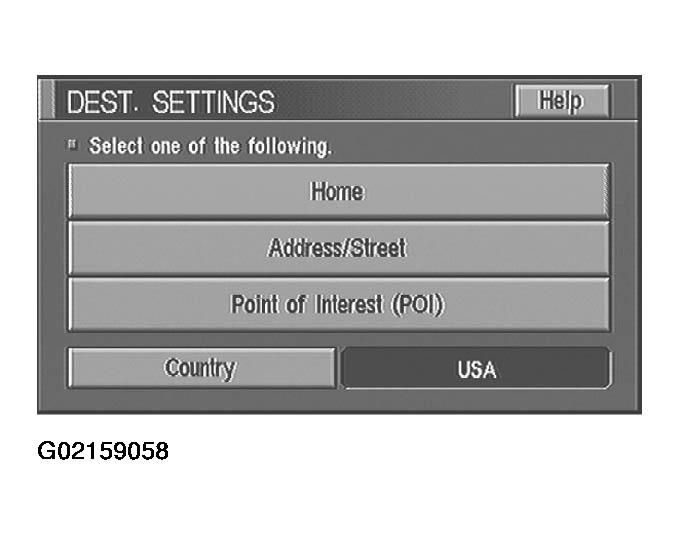

Fig 1: DEST Setting Display (Easy Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
Expert Mode

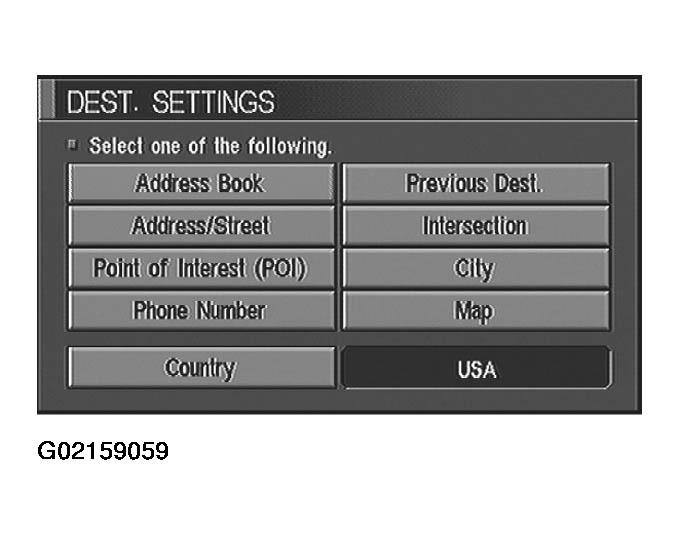

Fig 2: DEST Setting Display (Expert Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.

The function of each icon is as follows: See Fig 3 .

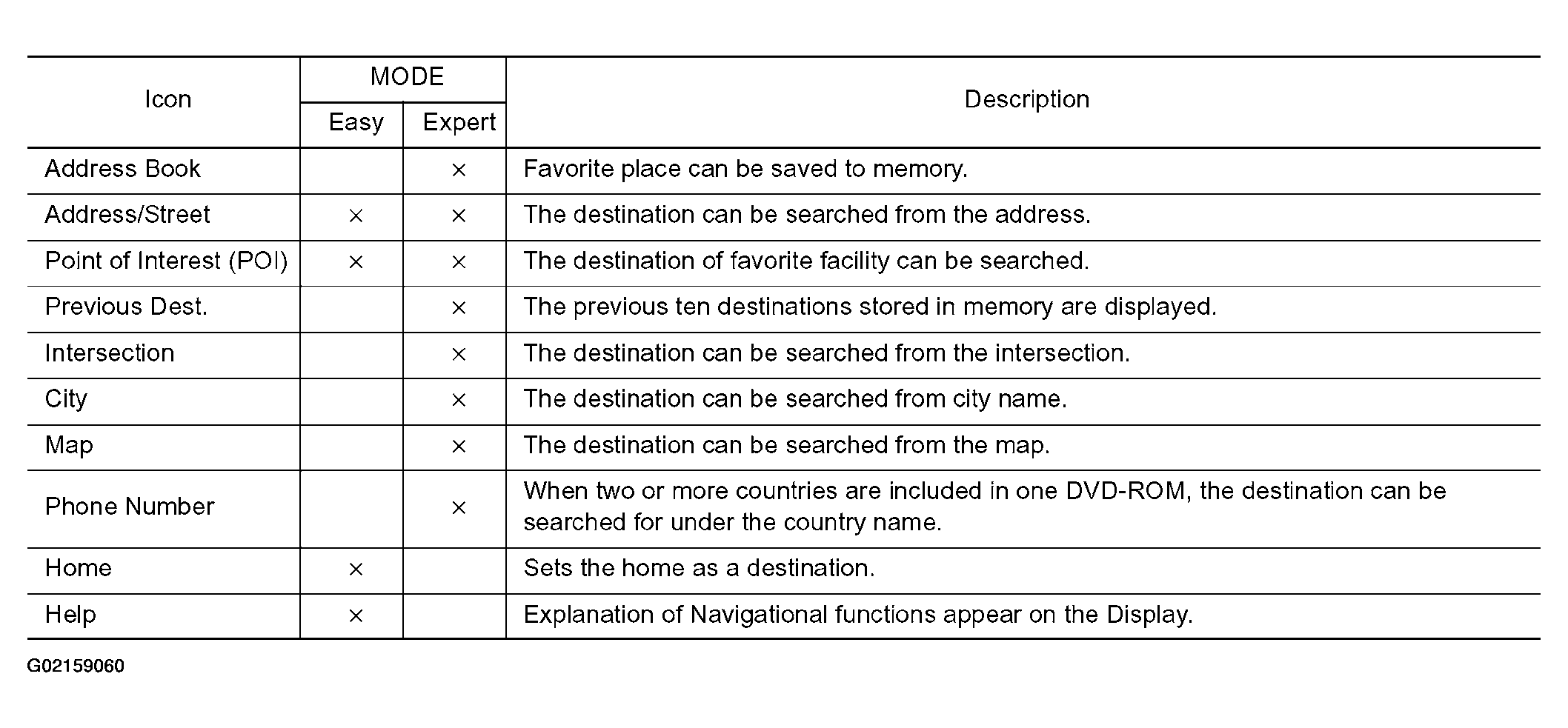

Fig 3: Icon Function Table
Courtesy of NISSAN MOTOR CO., U.S.A.
