Work Support

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

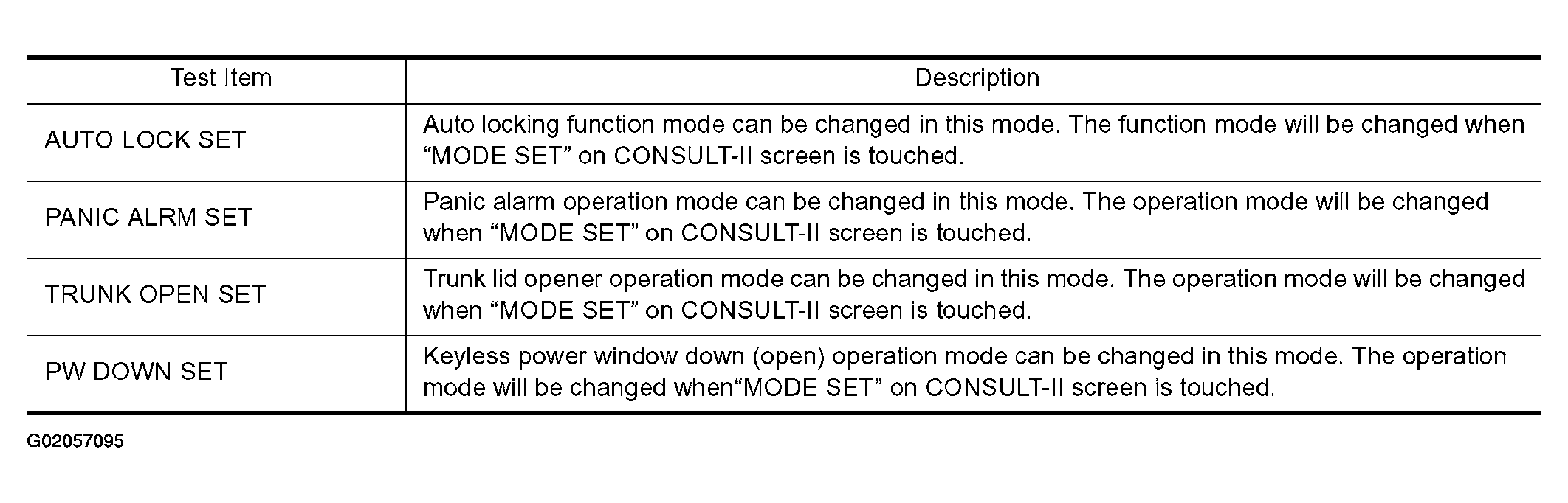

Fig 1: Work Support Description Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

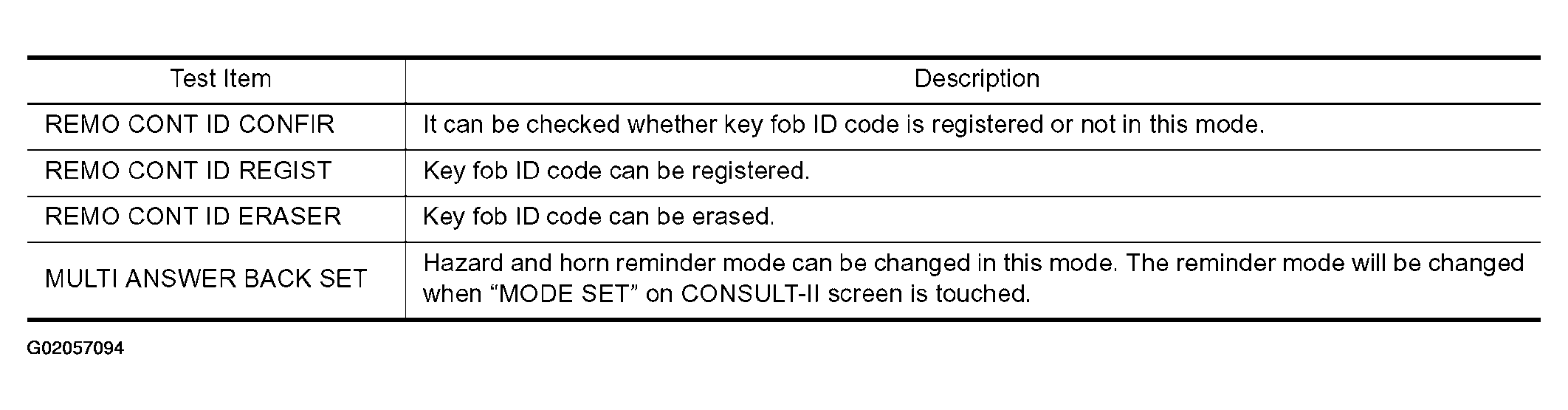

Fig 2: Work Support Description Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

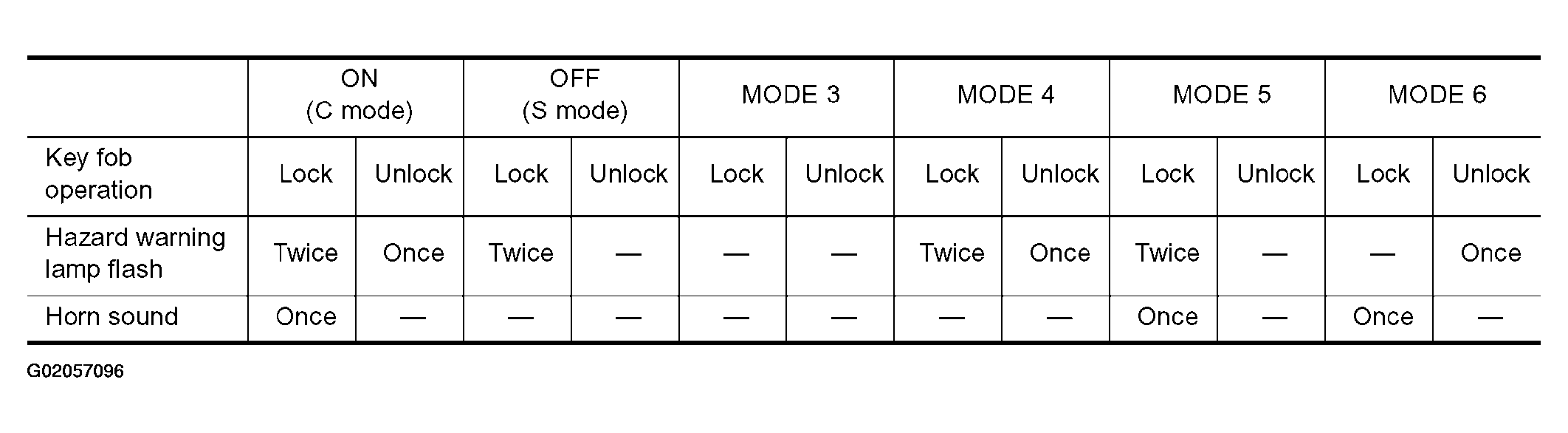

Fig 3: Hazard And Horn Reminder Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

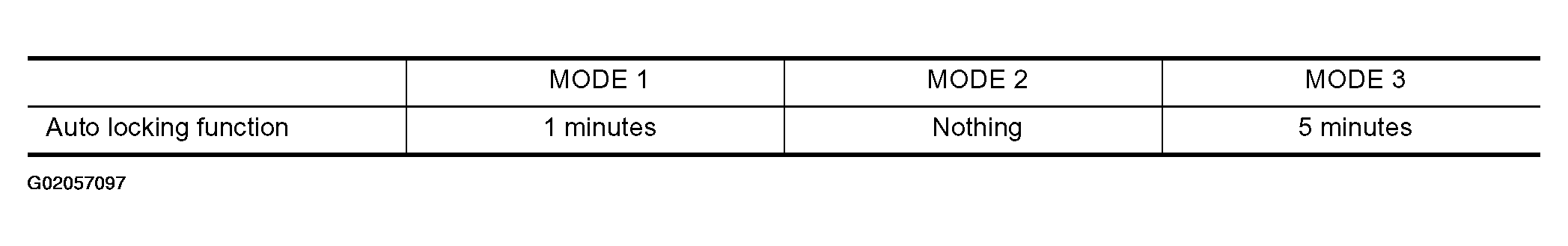

Fig 4: Auto Door Lock Operation Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

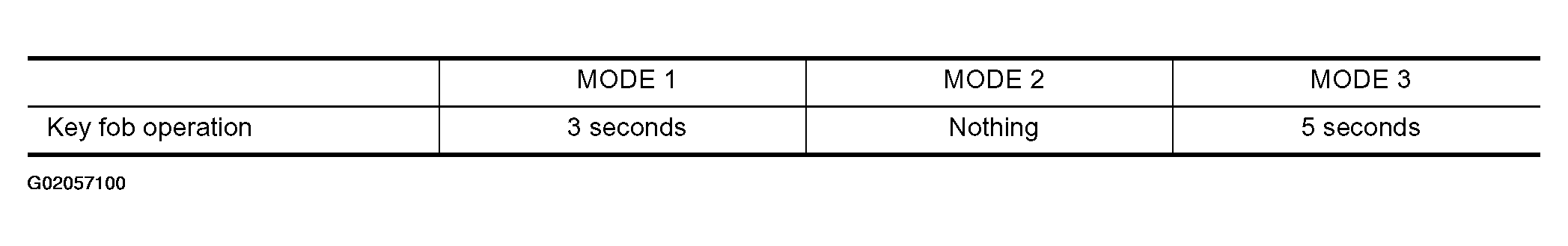

Fig 5: Panic Alarm Operation Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

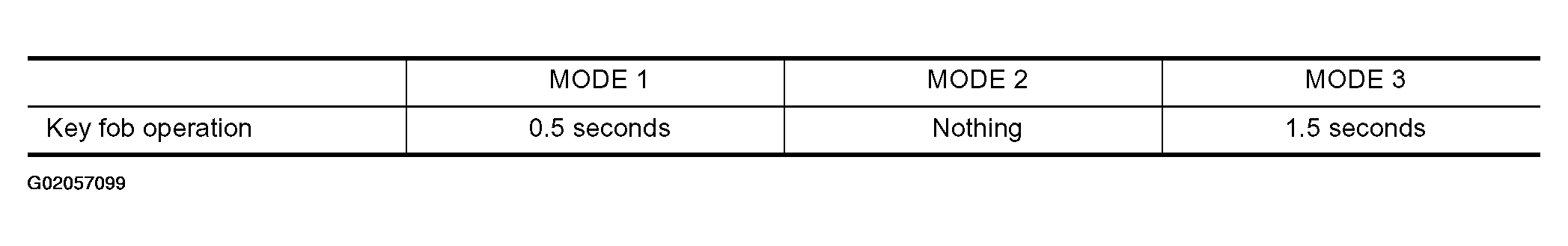

Fig 6: Trunk Open Operation Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Power Window Down (Open) Operation Mode Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

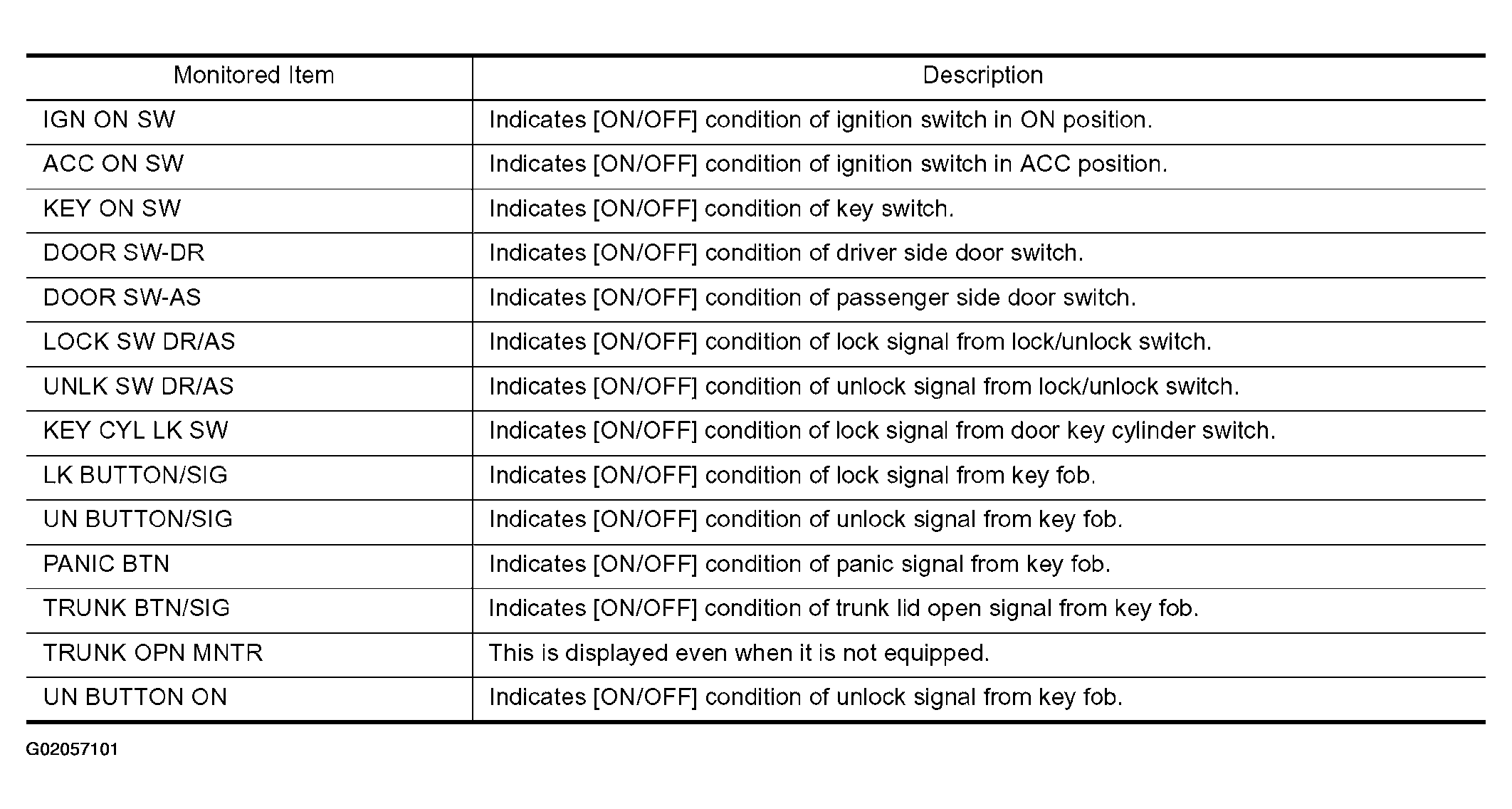

Fig 8: Data Monitor Description Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

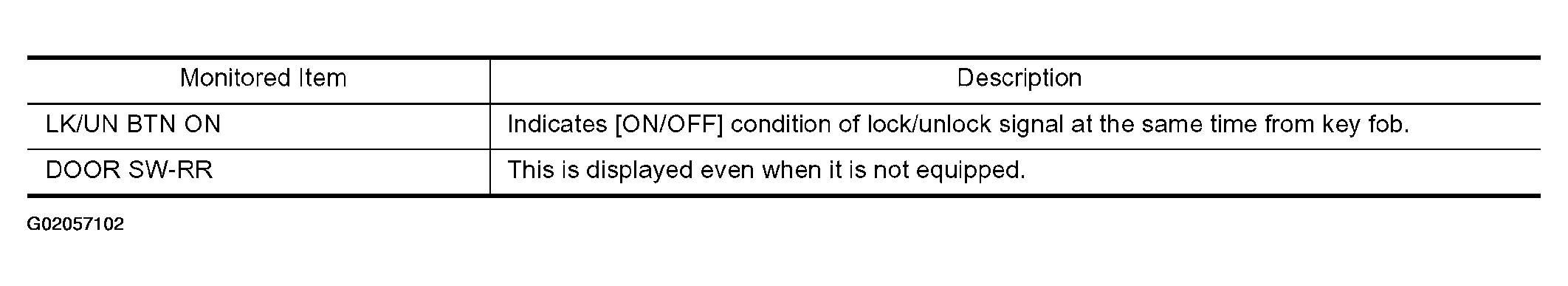

Fig 9: Data Monitor Description Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

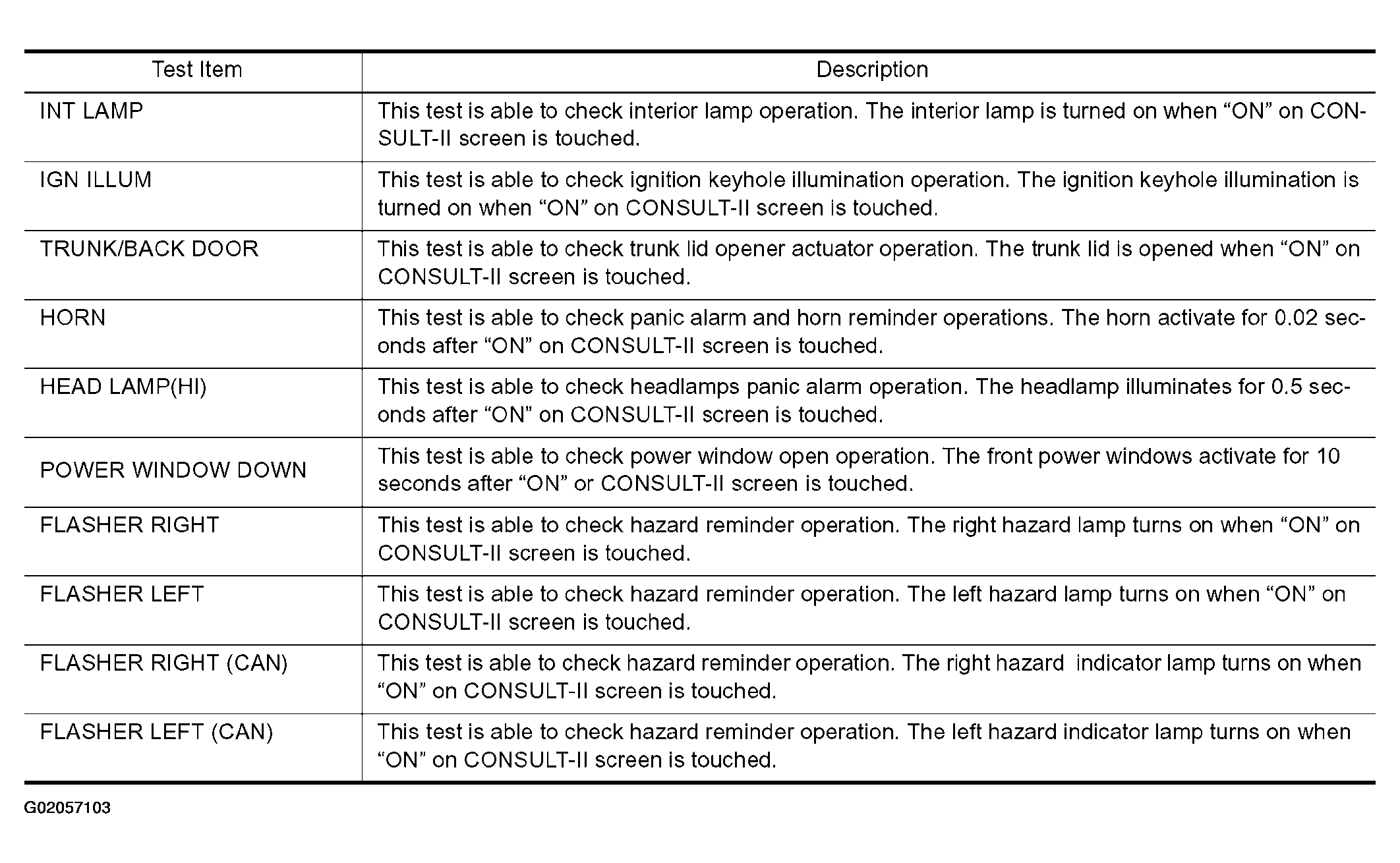

Fig 10: Active Test Description Table

Courtesy of NISSAN MOTOR CO., U.S.A.
