"Multi Remote ENT"

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

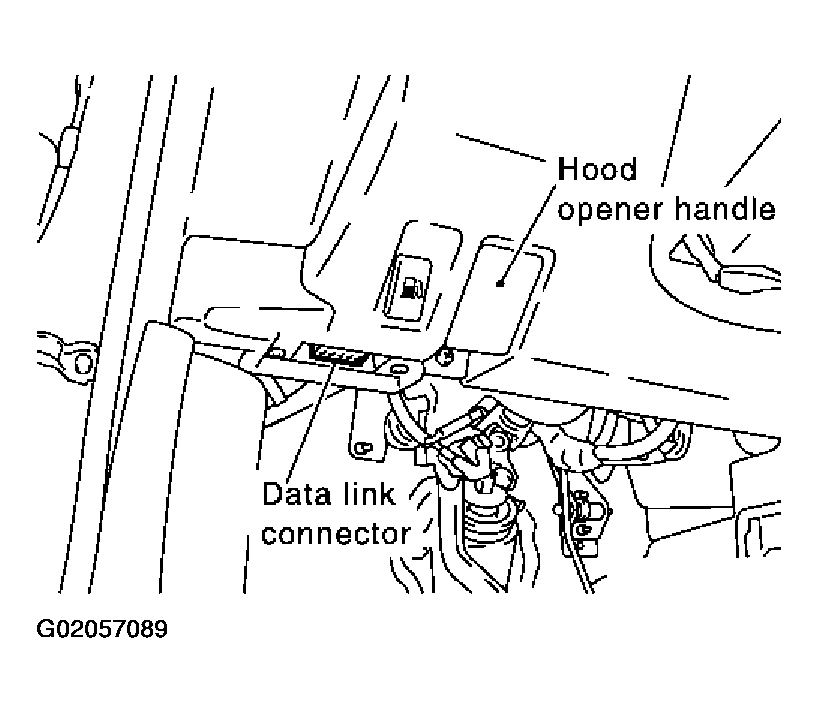

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

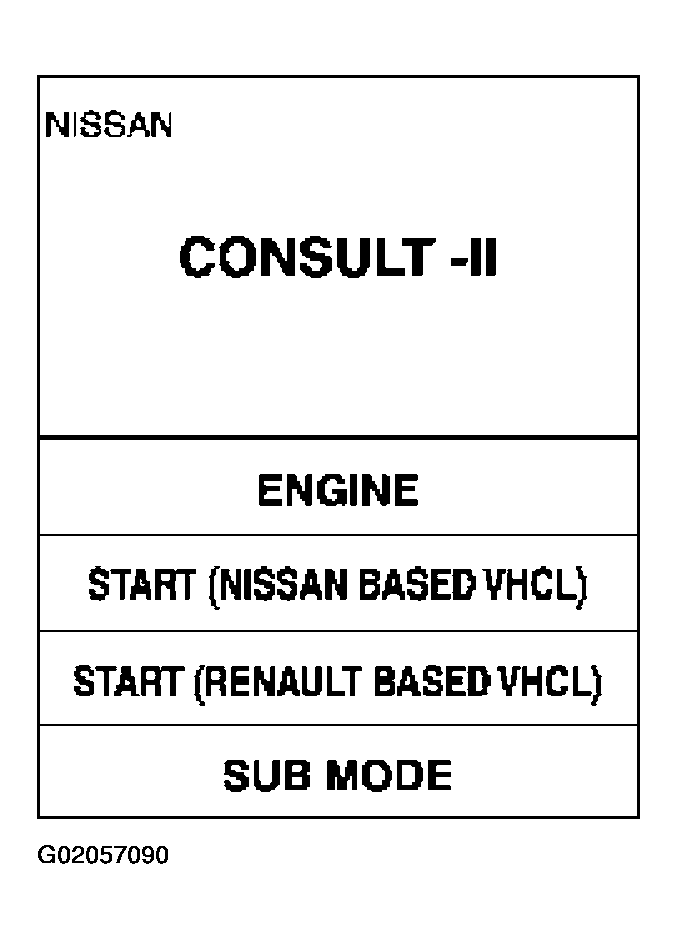

Fig 2: CONSULT-II Display Screen - Touch Start (Nissan Based VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

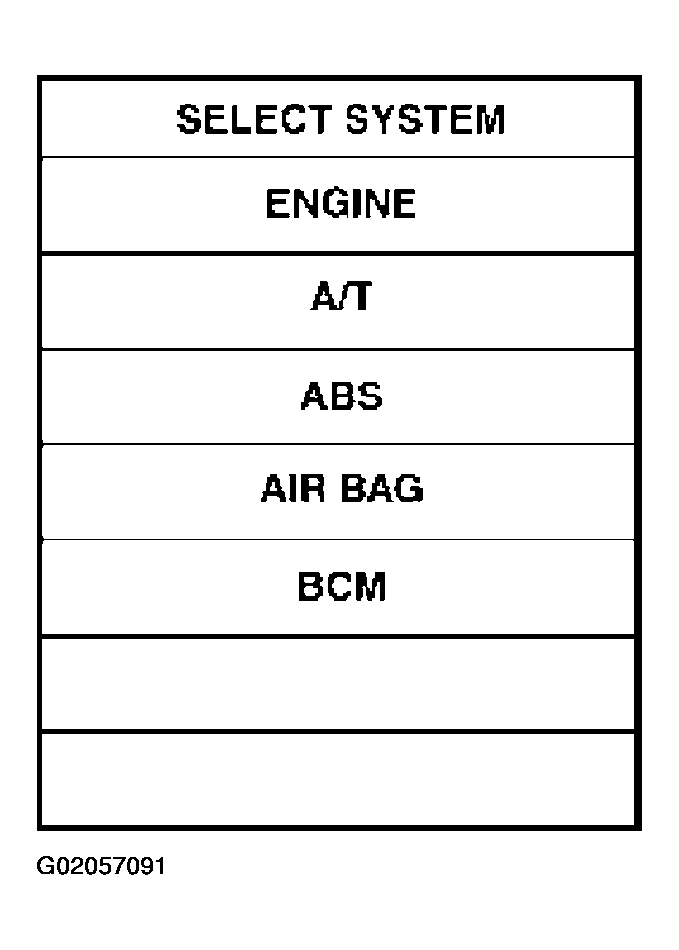

Fig 3: CONSULT-II Display Screen - Touch BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

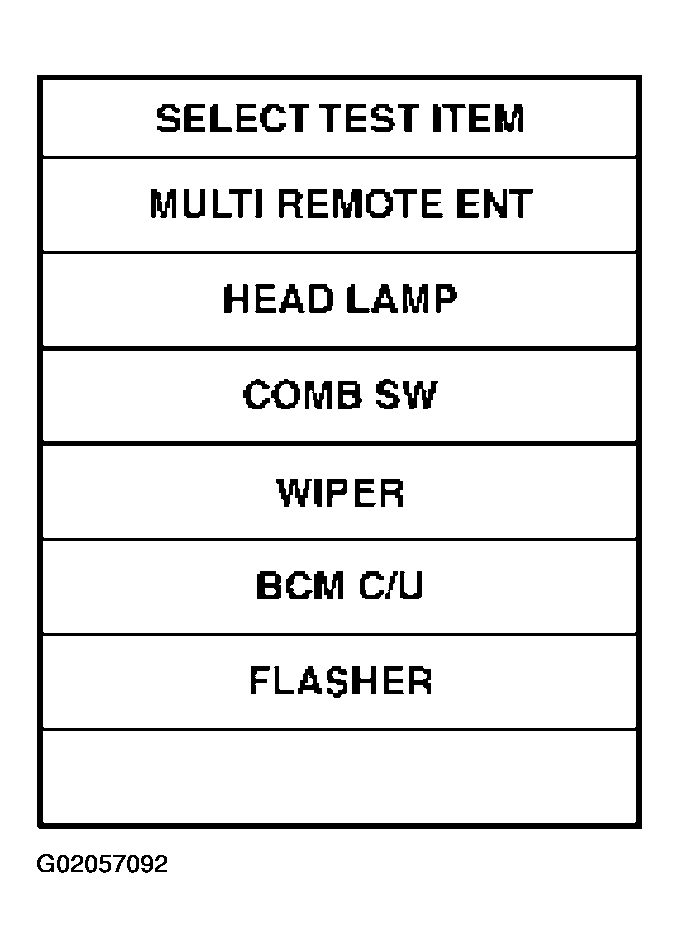

Fig 4: CONSULT-II Display Screen - Touch Multi Remote ENT
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.

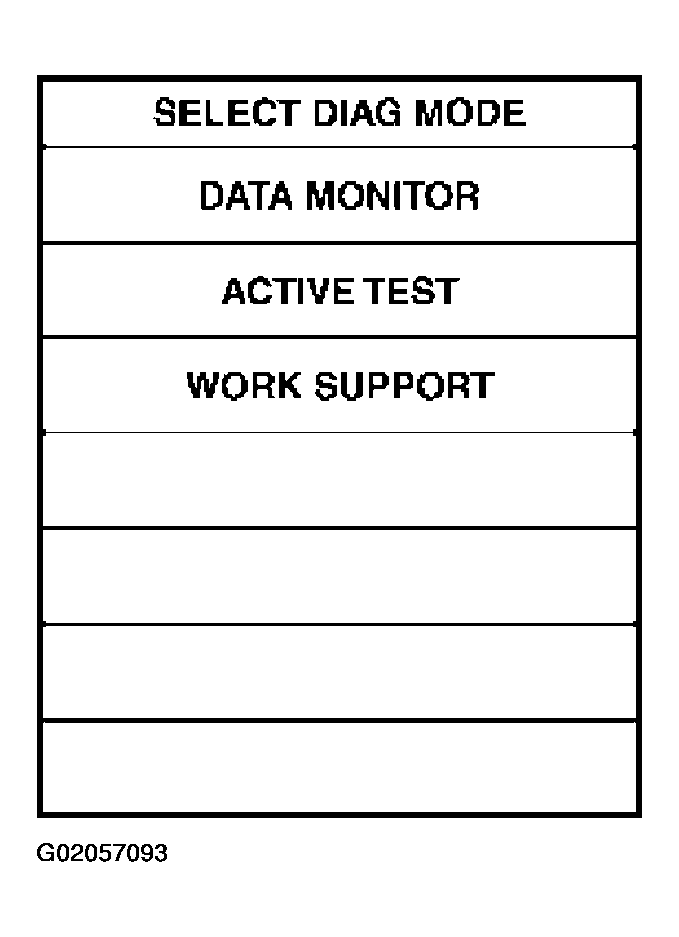

Fig 5: CONSULT-II Display Screen - Data Monitor, Active Test And Work Support
Courtesy of NISSAN MOTOR CO., U.S.A.
