Check ACC Switch
With CONSULT-II

Check ACC switch ("ACC ON SW") in "DATA MONITOR" mode with CONSULT-II.

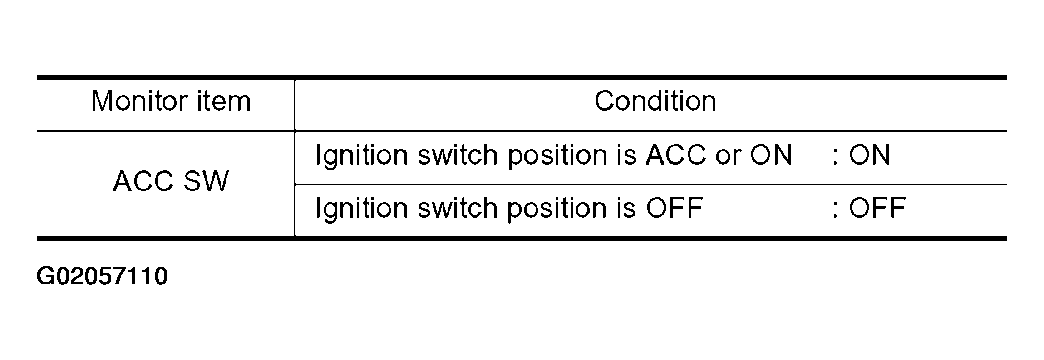

Fig 1: ACC Switch Item Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

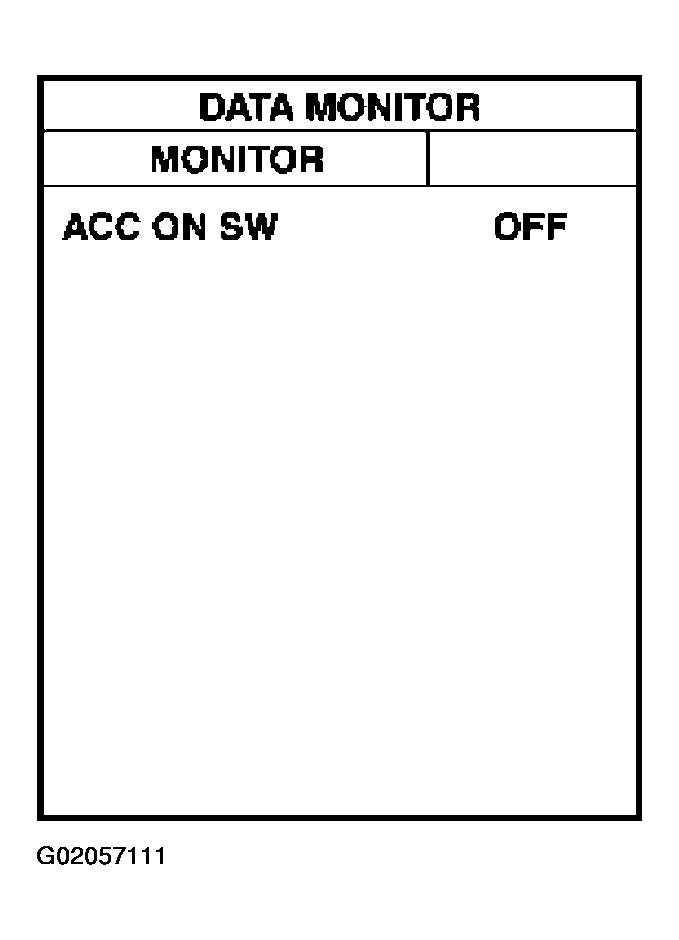

Fig 2: Checking ACC Switch With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

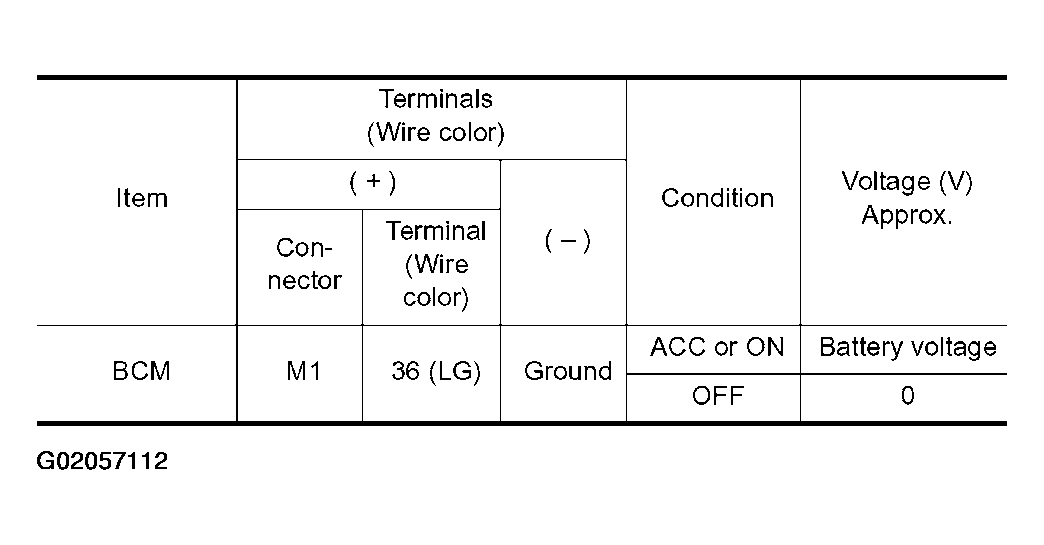

Fig 3: Voltage Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.

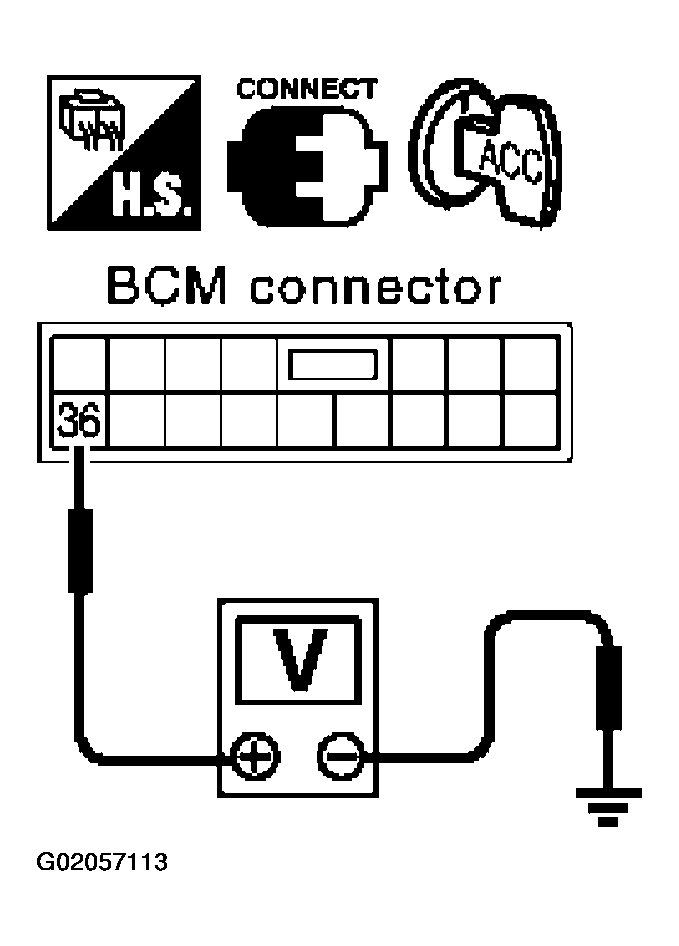

Fig 4: Checking Voltage Between BCM Connector And Ground With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : ACC switch is OK.

NG : Check the following.
- 10A fuse [No. 6, located in fuse block (J/B)]
- Harness for open or short between BCM and fuse.
