Drive Side Power Window Regulator Circuit Check

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.

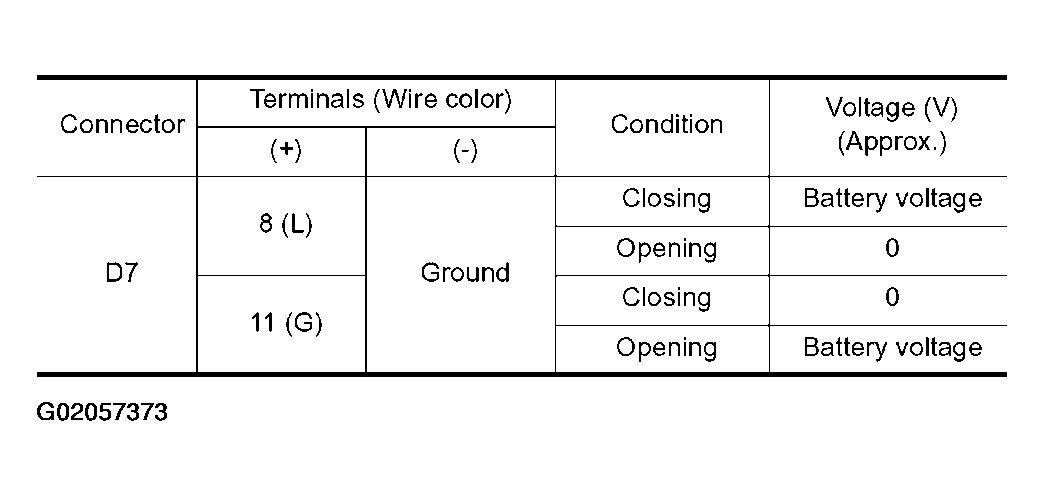

  Fig 1: Connector Terminal Condition Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

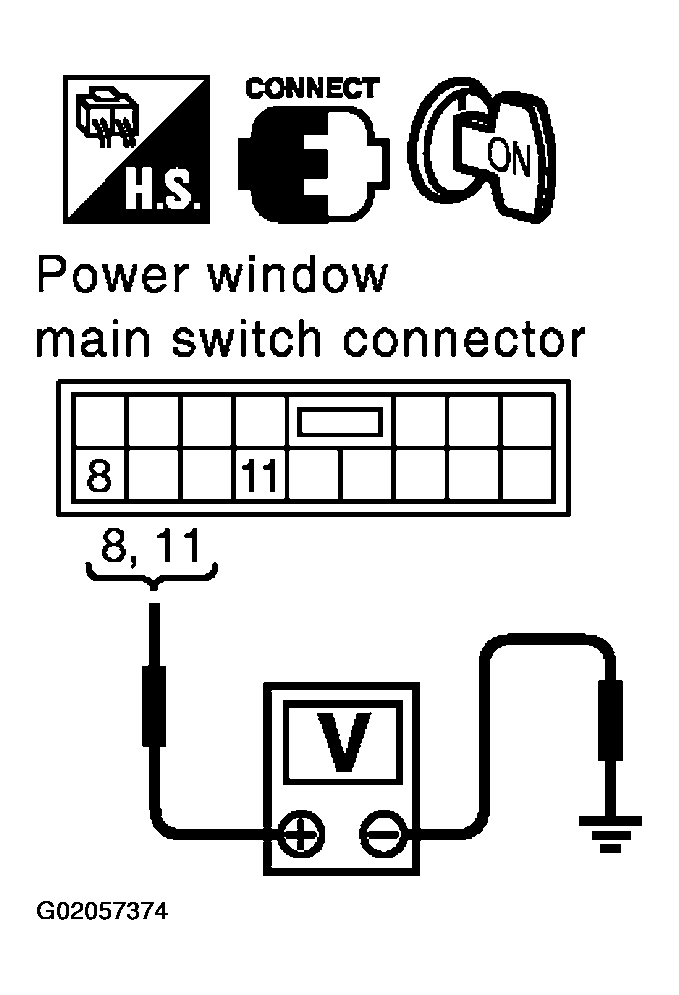

  Fig 2: Checking Voltage Between Power Window Main Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Replace power window main switch.
CHECK POWER WINDOW MAIN SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and driver side power window regulator connector.
3. Check continuity between power window main switch connector D7 terminals 8, 11 and driver side power window regulator connector D9 terminals 1, 2.
  1. 8 (L) - 2 (L): Continuity should exist.
  2. 11 (G) - 1 (G): Continuity should exist.
OK or NG

OK: Replace driver side power window regulator.

NG: Repair or replace harness between power window main switch and driver side power window regulator.

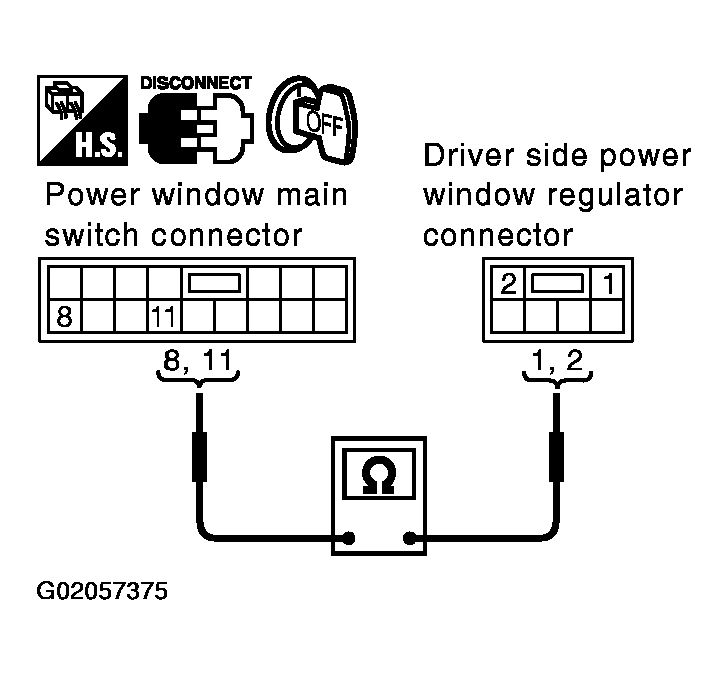

Fig 3: Checking Continuity Between Power Window Main Switch And Driver Side Power Window Regulator Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
