Passenger Side Power Window Regulator Circuit Check

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK POWER WINDOW SUB-SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window sub-switch connector and ground.

  Fig 1: Passenger Side Power Window Regulator Connector Terminals Condition Table
  Courtesy of NISSAN MOTOR CO., U.S.A.

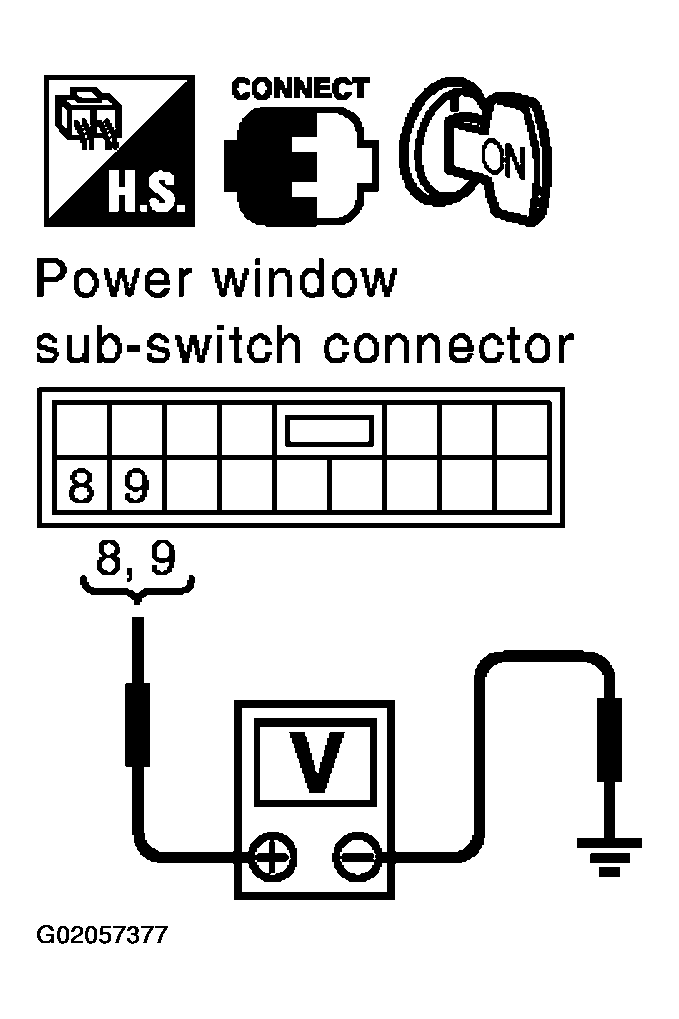

  Fig 2: Checking Voltage Between Power Window Sub-Switch Connector And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: GO TO 2.

NG: Replace power window sub-switch.
CHECK POWER WINDOW REGULATOR (PASSENGER SIDE) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window sub-switch and passenger side power window regulator connector.
3. Check continuity between power window sub-switch connector D43 terminals 8, 9 and passenger side power window regulator connector D38 terminals 1, 2.
  1. 9 (G) - 1 (G): Continuity should exist.
  2. 8 (L) - 2 (L): Continuity should exist.
OK or NG

OK: Replace passenger side power window regulator.

NG: Repair or replace harness between power window sub-switch and passenger side power window regulator.

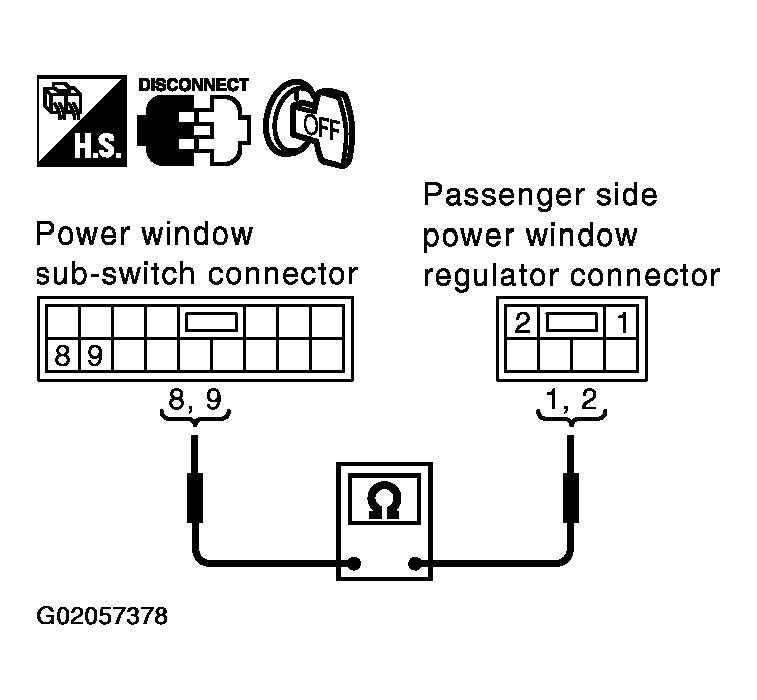

Fig 3: Checking Passenger Side Power Window Regulator Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
