Operation Procedure

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Start the engine.
Push and hold "MAP" and "D/N" switches simultaneously for 5 seconds or more.

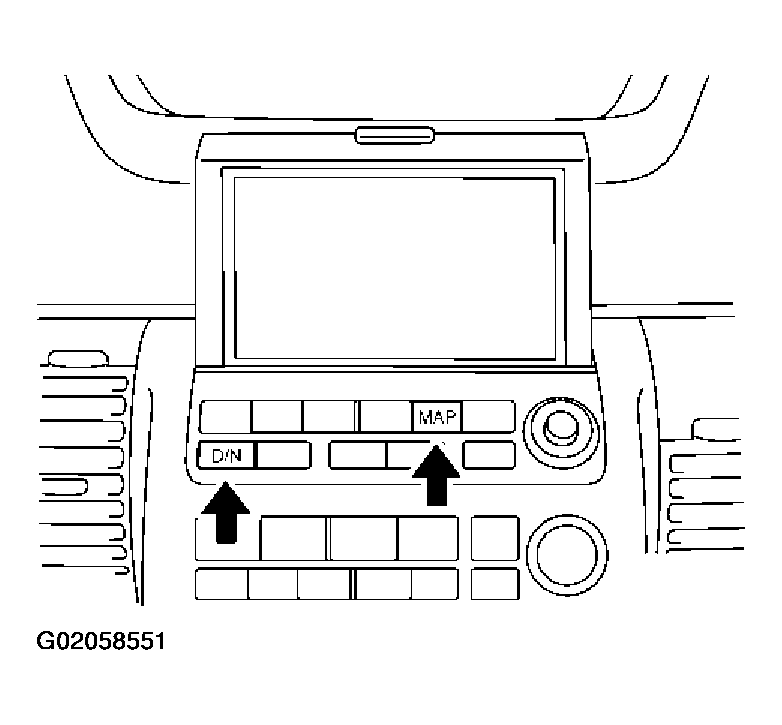

Fig 1: Locating MAP And D/N Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
- Push the "PREV" switch and the initial system screen will be shown.
The initial trouble diagnosis screen will be shown, and items "SELF-DIAGNOSIS" and "CONFIRMATION/ADJUSTMENT" will become selective.

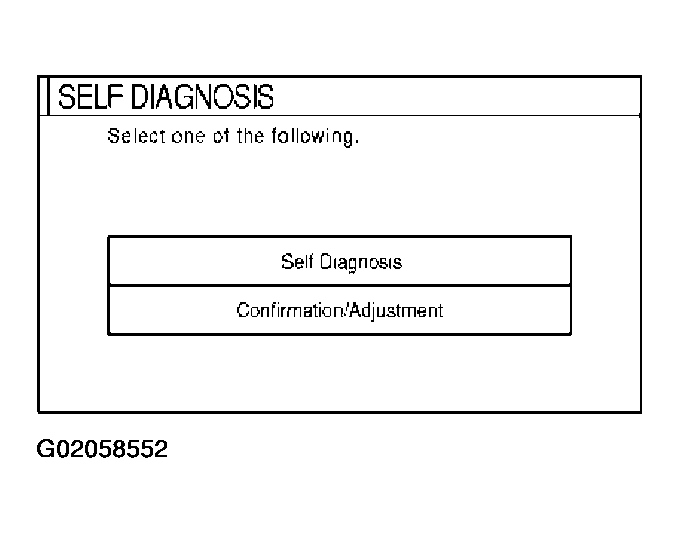

Fig 2: Identifying NAVIGATION SYSTEM Self Diagnosis Display (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
When "CONFIRMATION/ADJUSTMENT" is selected on the initial trouble diagnosis screen, the operation will enter the CONFIRMATION/ADJUSTMENT mode. In this mode, check and adjustment of each item will become possible.

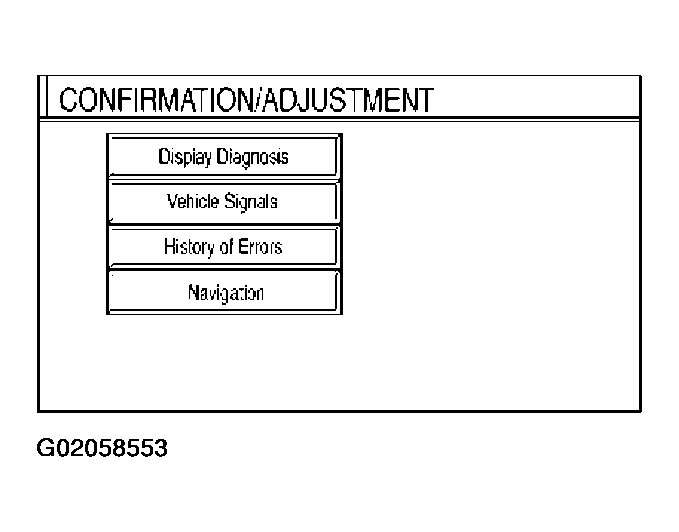

Fig 3: Identifying NAVIGATION SYSTEM Self Diagnosis Display (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select each switch on "CONFIRMATION/ADJUSTMENT" screen to display the relevant diagnosis screen.
