Disassembly and Assembly of Display Unit

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove display unit. Refer to "REMOVAL AND INSTALLATION OF DISPLAY UNIT  ".
    2. NOTE: Be careful to handle display and power source box, because they are connected each other via FPC (Flexible Print Circuit).

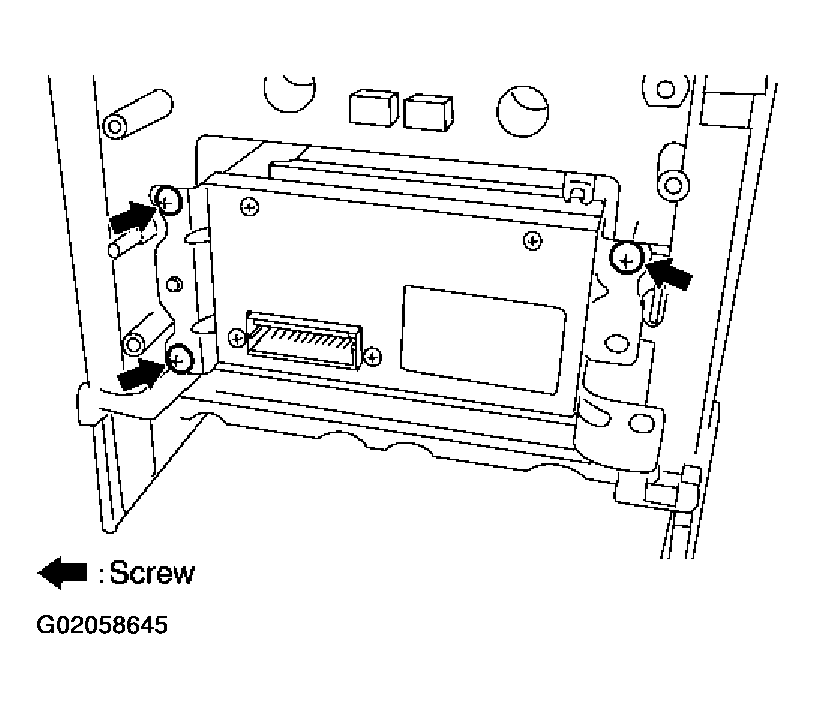

    Fig 1: Removing Power Source Box
    G02058645Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove screws (3) and remove power source box.
  3. Unlock FPC (Flexible Print Circuit) connector from display.

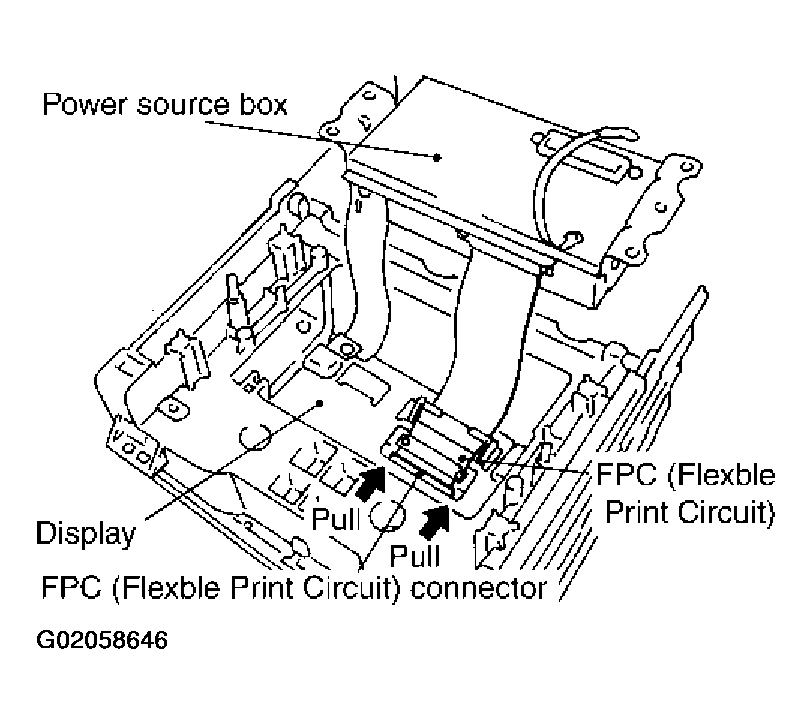

    Fig 2: Unlocking FPC Connector From Display
    G02058646Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove clips (2) fixing FPC (Flexible Print Circuit) at back side.
  5. Remove screw and remove ground circuit.

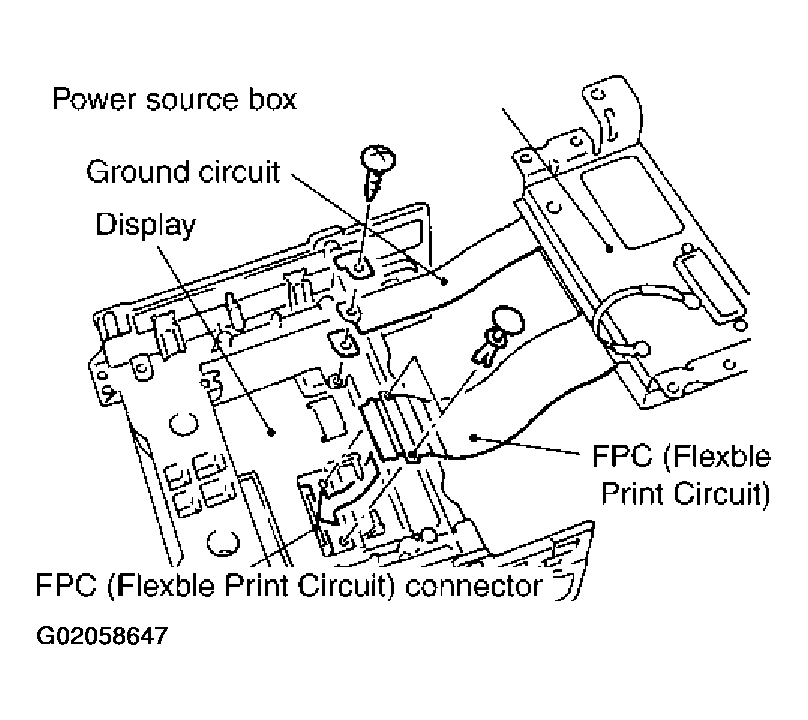

    Fig 3: Removing Ground Circuit
    G02058647Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Using a precision screwdriver, remove screws (RH/LH, back, and bottom) and lifting guide pin on display. Separate monitor cover and display.

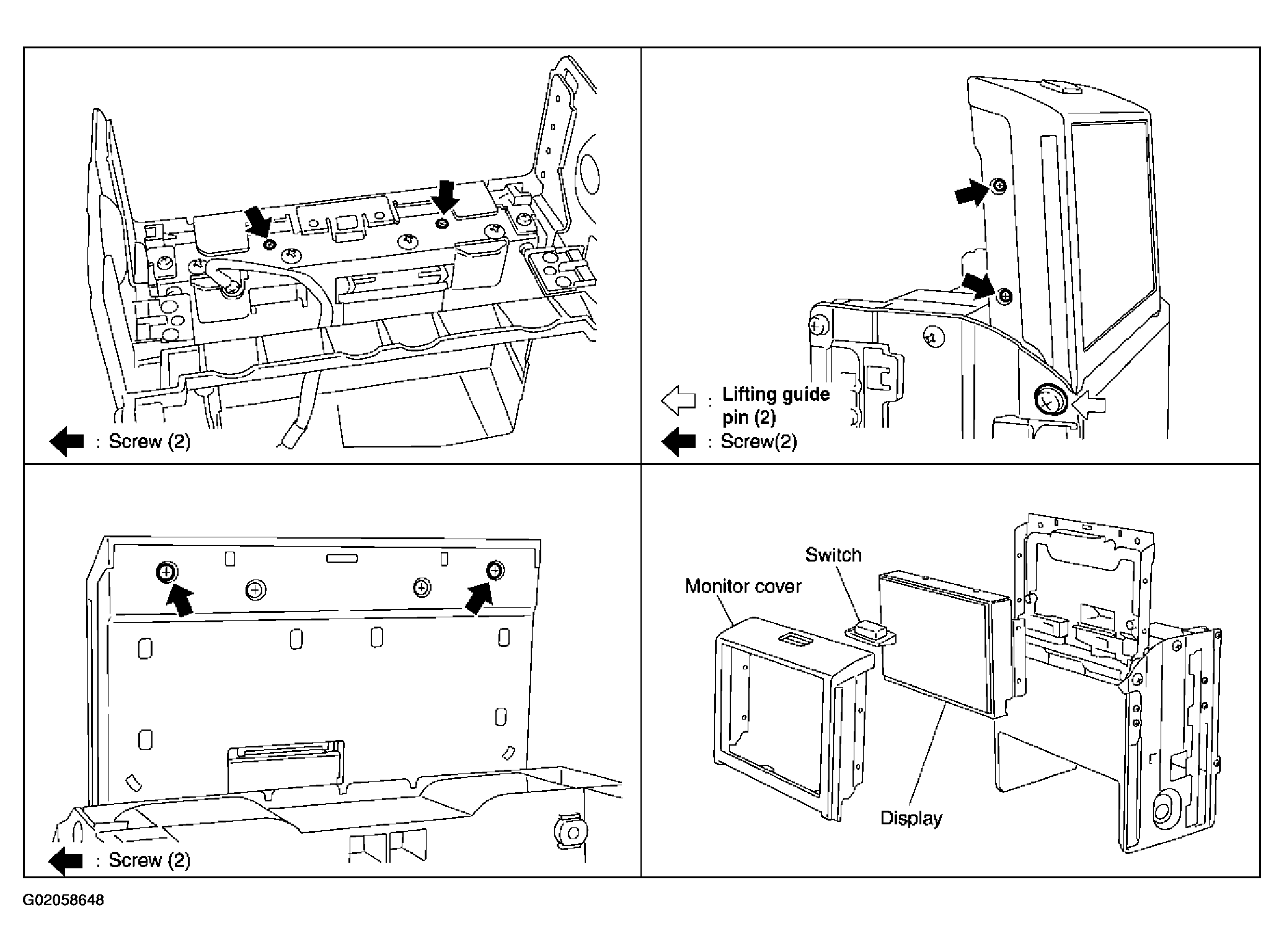

    Fig 4: Separating Monitor Cover And Display
    G02058648Courtesy of NISSAN MOTOR CO., U.S.A.
