IGNITION SIGNAL CHECK
1. Disconnect the NAVI control unit connector.
2. Turn the ignition switch ON.
3. Check voltage between NAVI control unit and ground.

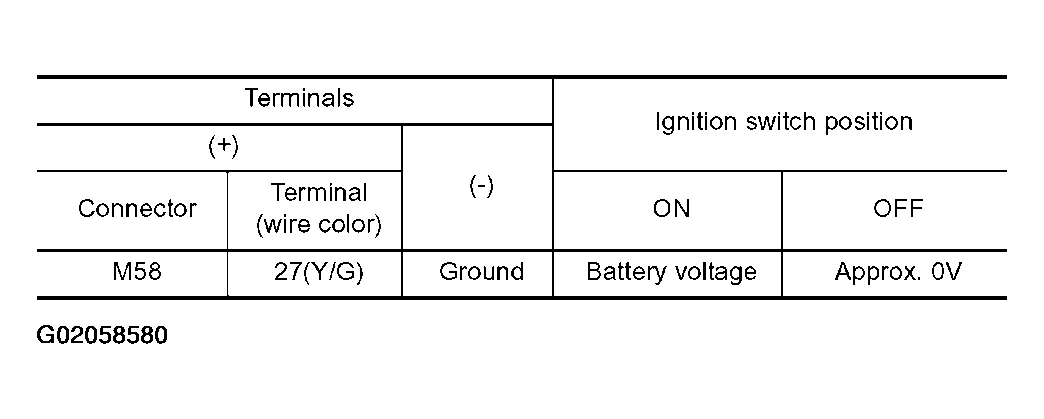

  Fig 1: Checking IGNITION SIGNAL Voltage Between NAVI Control Unit And Ground (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

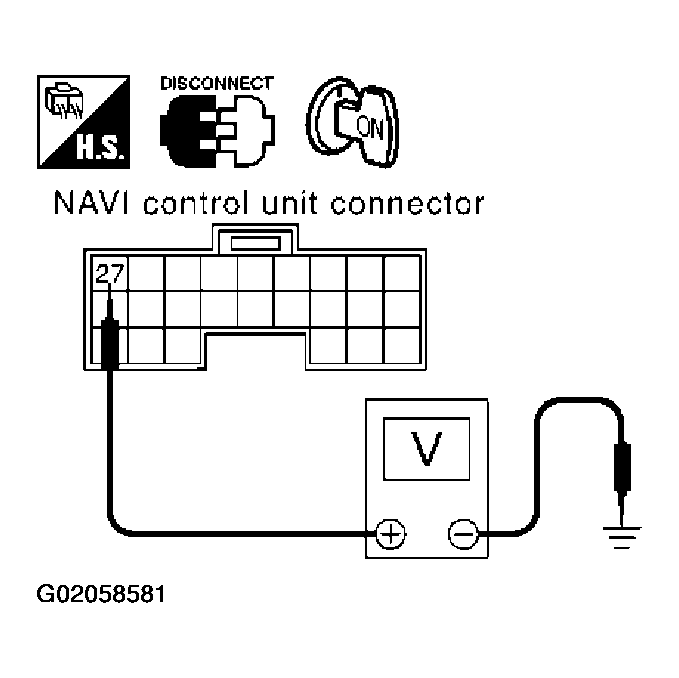

  Fig 2: Checking IGNITION SIGNAL Voltage Between NAVI Control Unit And Ground (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK : Replace NAVI control unit.

NG : Check harness for open or short between NAVI control unit and fuse.
