Display with Pushed "INFO" Switch: Notes

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NAVI control unit is communicating combination meter.

Push "INFO" switch to display vehicle information display.

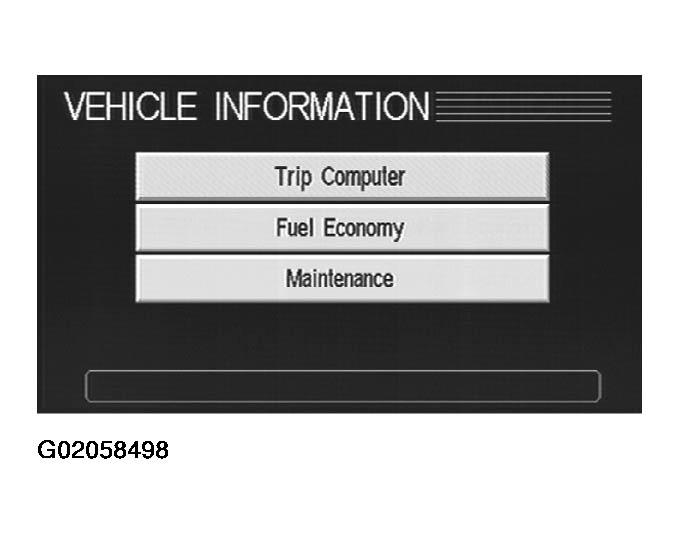

Fig 1: Identifying INFO Switch Display
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If a warning signal is received by NAVI at this time, NAVI control unit displays warning message on screen.
Select "Trip Computer", "Fuel Economy" or "Maintenance".

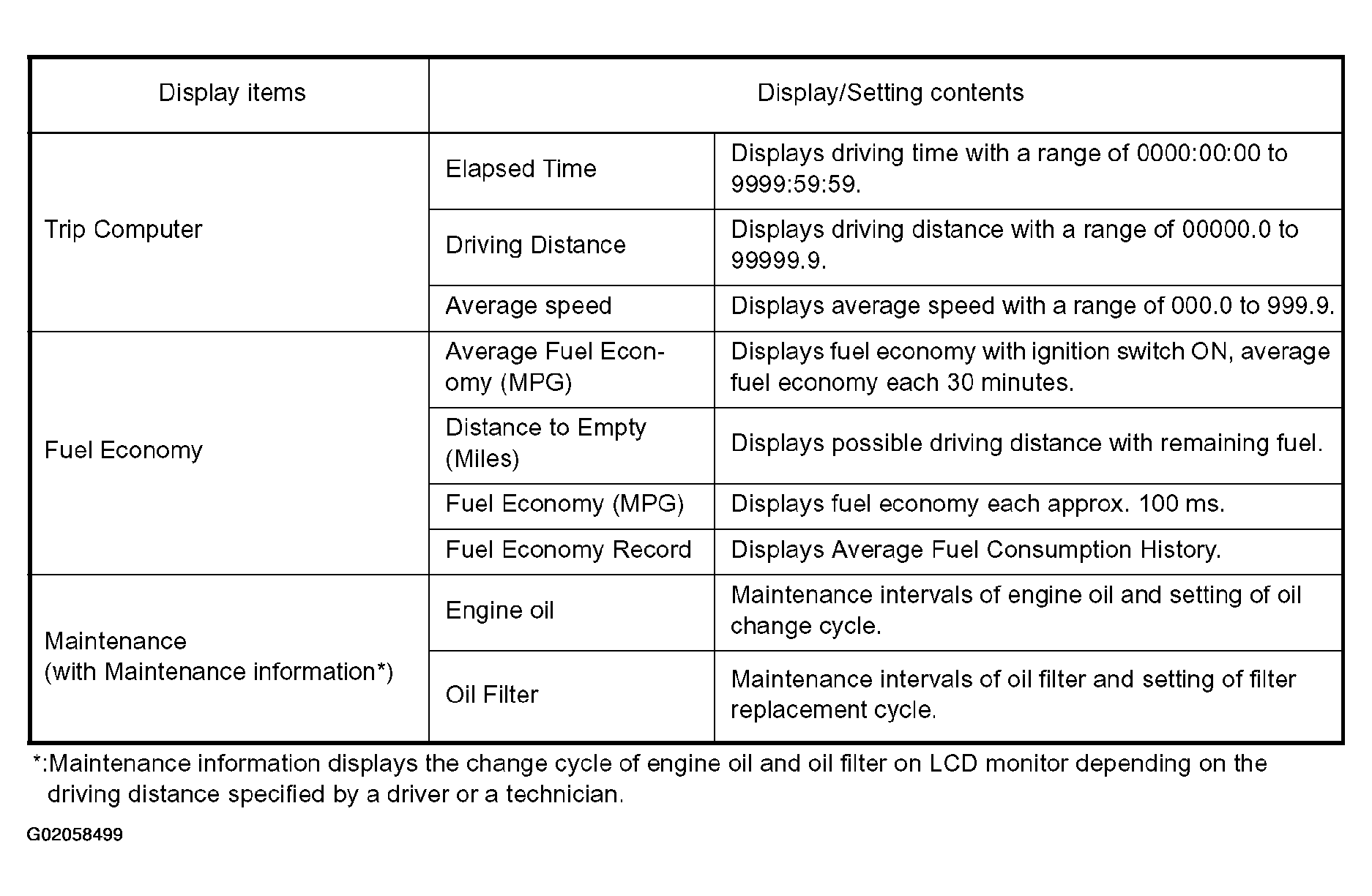

Fig 2: INFO Switch Display Items Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
