Warning Indications

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

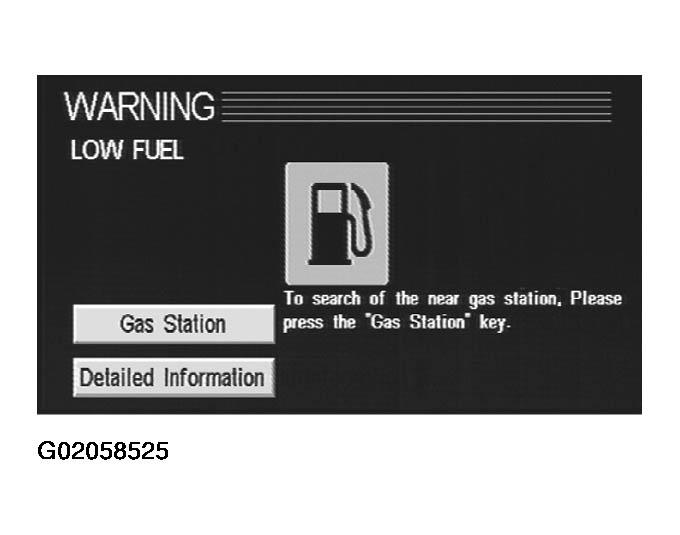

Fig 1: Identifying WARNING INDICATIONS Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Then combination meter sends warning signal to NAVI control unit to display warning indications on the screen.

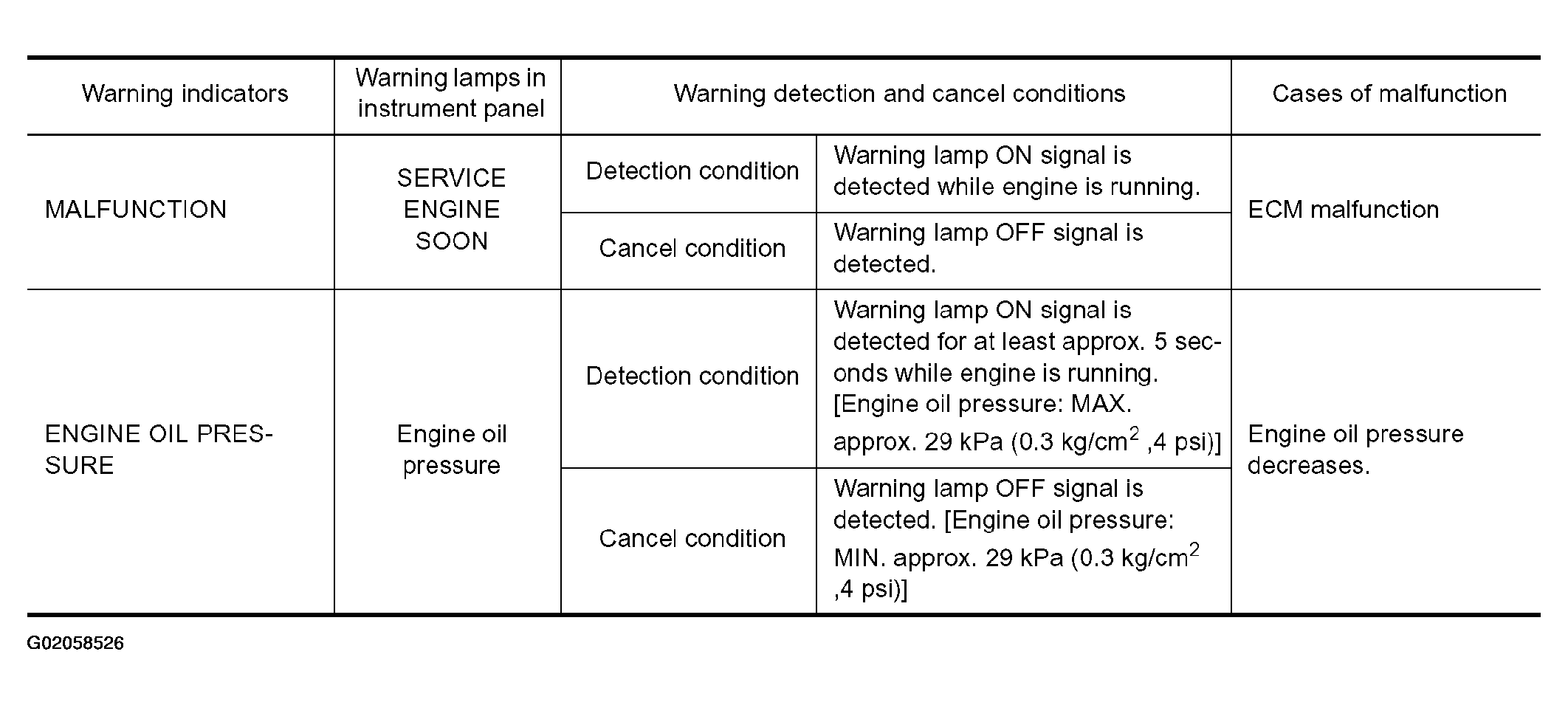

Fig 2: Identifying WARNING INDICATIONS Description Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

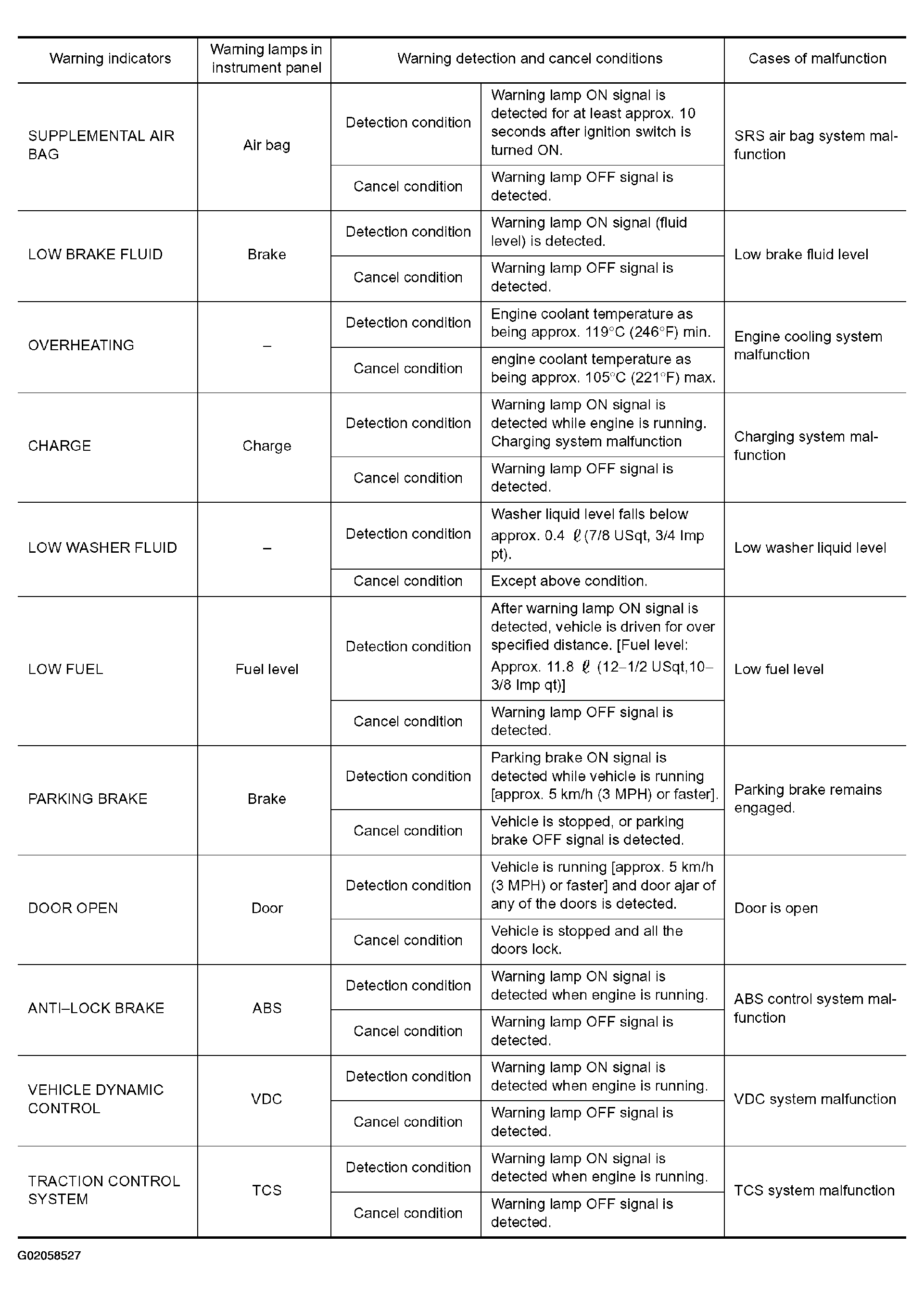

Fig 3: Identifying WARNING INDICATIONS Description Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

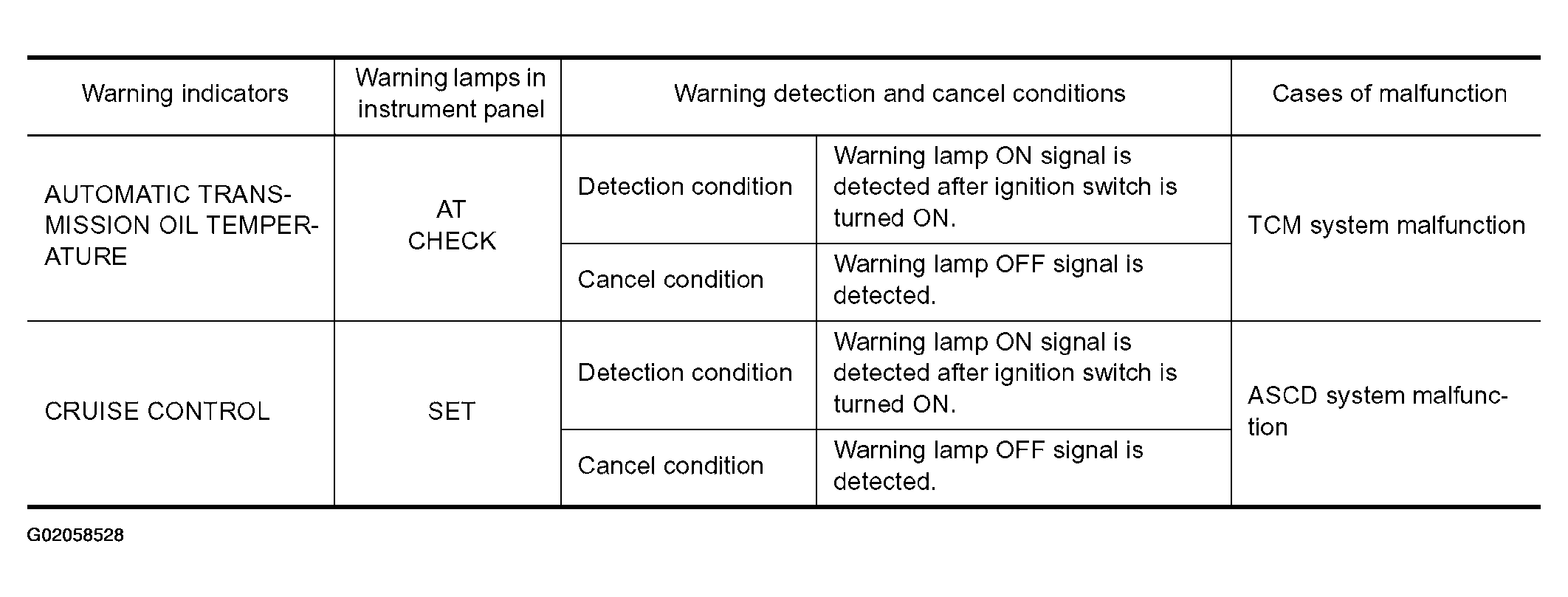

Fig 4: Identifying WARNING INDICATIONS Description Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
