Wiring Diagram - COMM

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

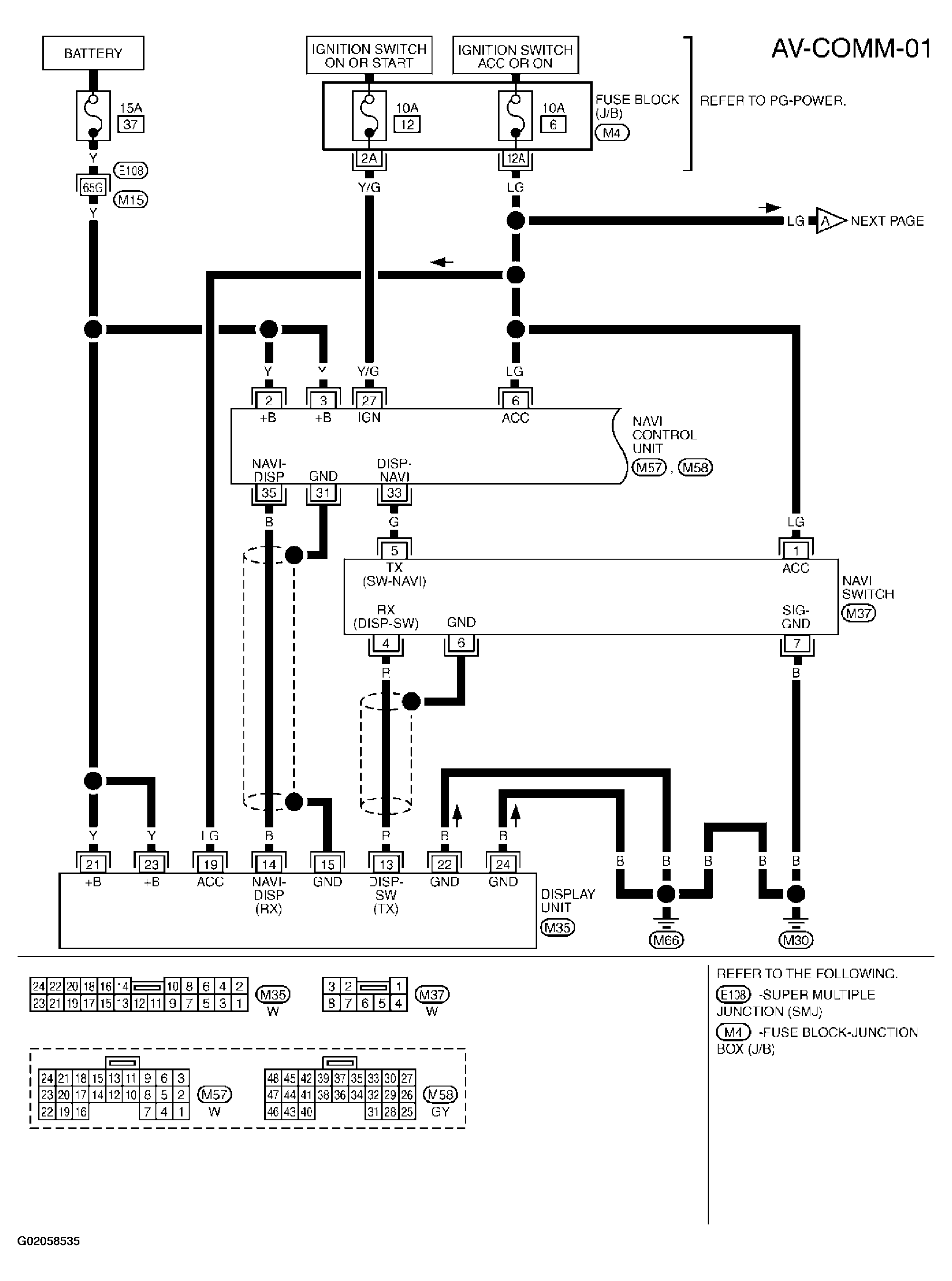

Fig 1: Identifying COMM SYSTEM - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

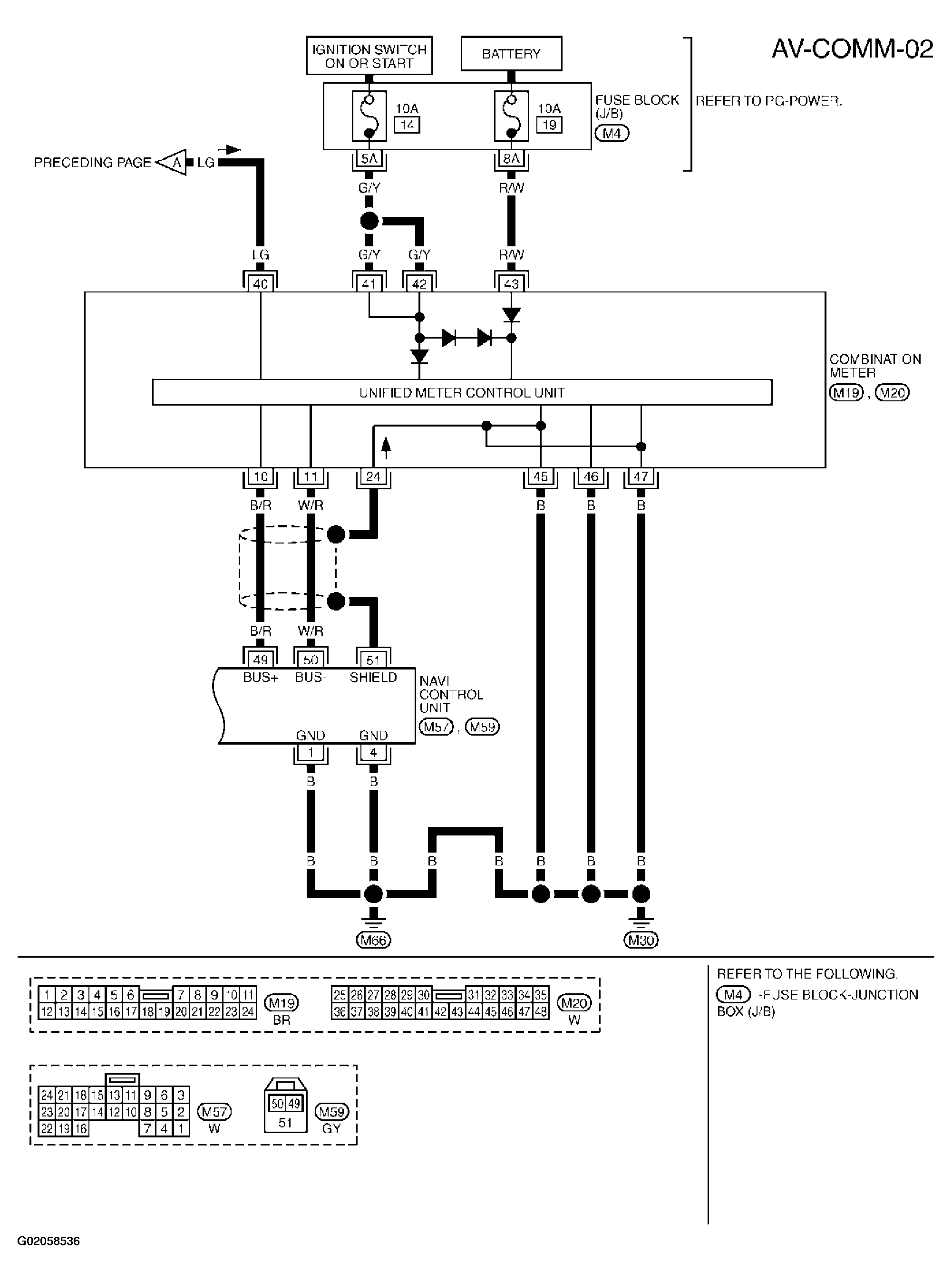

Fig 2: Identifying COMM SYSTEM - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
