Control Units
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | At right rear of engine compartment. See Figure . |

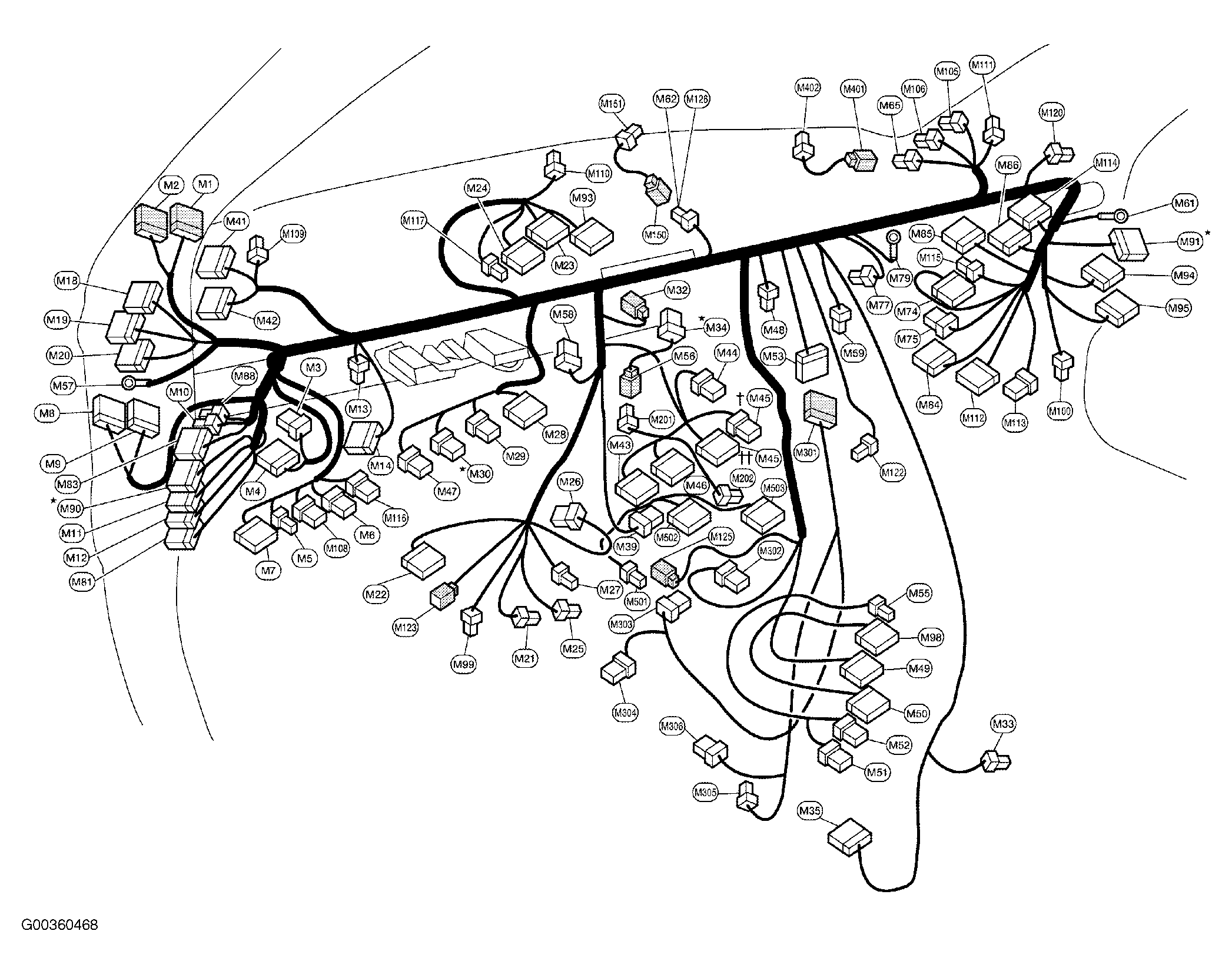

| A/T Device (M34) | Behind center of dash. See Figure . |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure . |

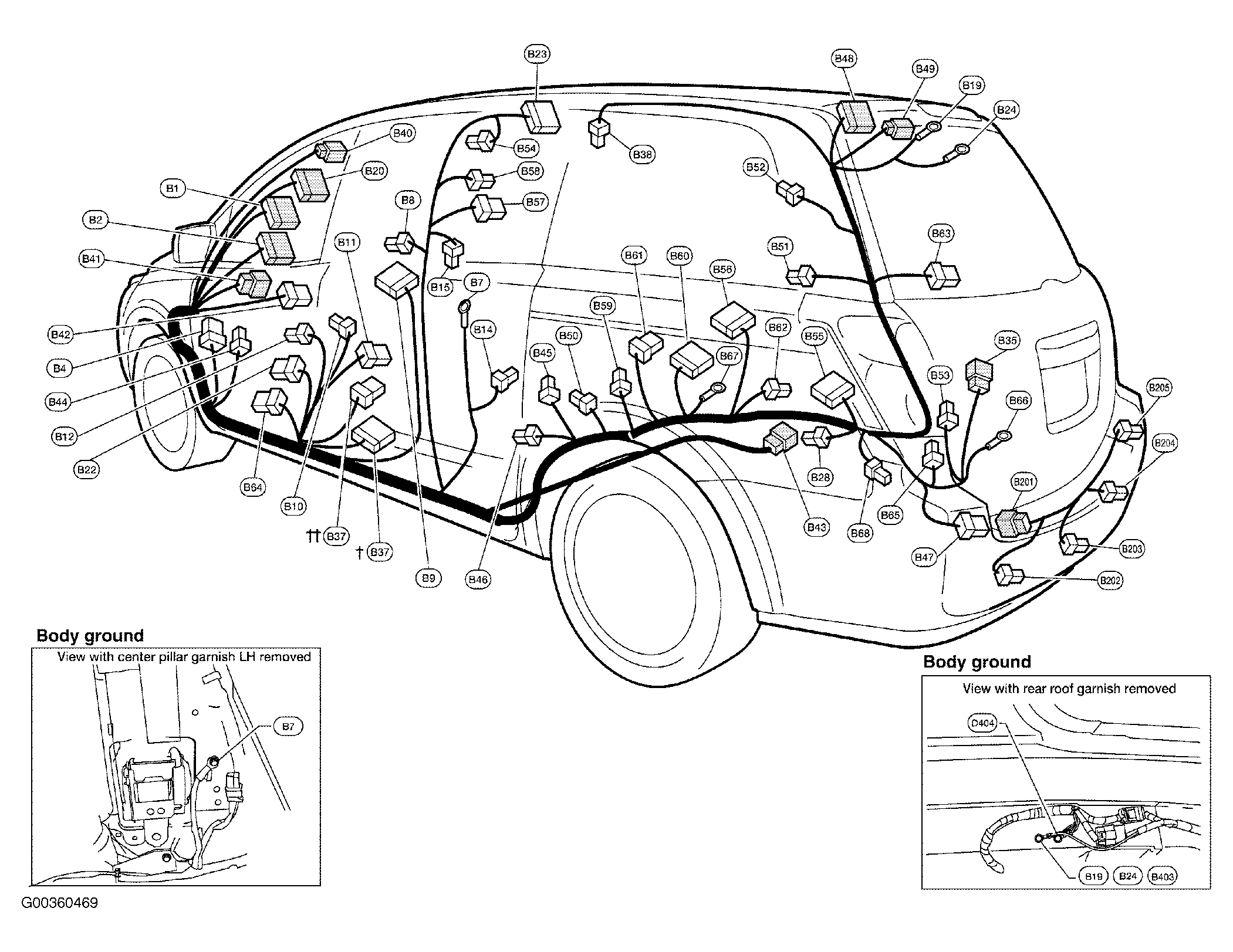

| Back Door Control Unit (B55) | At left rear corner of vehicle. See Figure . |
| BCM (Body Control Module) | Behind left side of dash. See Figure . |
| Daytime Light Control Unit (E103) | At left side of engine compartment. See Figure . |
| Display Control Unit (W/Navigation System) | Behind right end of dash. See Figure . |
| ECM | At right rear of engine compartment. See Figure . |
| NAVI Control Unit (W/Navigation System) | Under right front seat. See Figure . |
| Pedal Adjusting Control Unit (M16) | Behind left side of dash. See Figure . |
| Remote Keyless Entry Receiver | Behind right end of dash. See Figure . |
| Sliding Door Control Unit (Left) (B60) | Behind left rear quarterpanel. See Figure . |
| Sliding Door Control Unit (Right) (B143) | At right "C" pillar. See Figure . |
| Sliding Door Encoder (Left) (B59) | Behind left rear quarterpanel. See Figure . |
| Sliding Door Encoder (Right) (B145) | Behind right quarterpanel. See Figure . |
| Sliding Door Latch Control Unit LH | At center of sliding door. See Figure . |
| Sliding Door Latch Control Unit RH | At center of sliding door. See Figure . |
| Sonar Control Unit (B56) | Behind left rear quarterpanel. See Figure . |
| TCM (Transmission Control Module) | Behind right side of dash. See Figure . |
