Lamp Output Control Function

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Controls output of lamps except for the ignition key hole illumination.

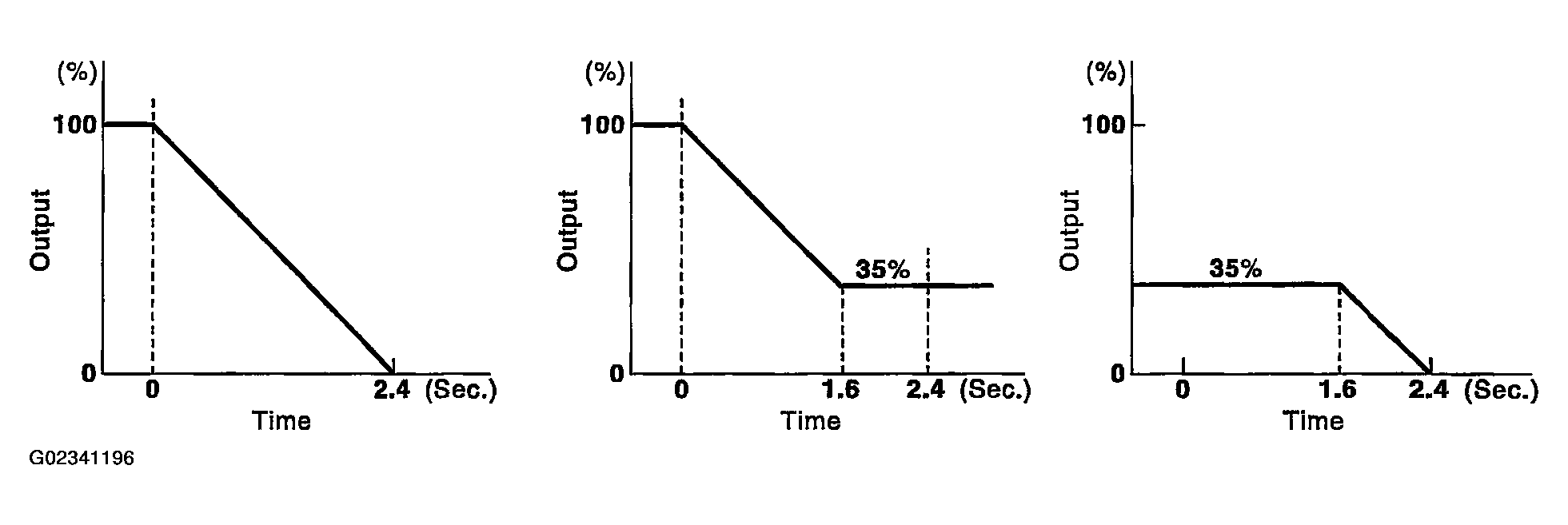

In case from full illumination to off, from full illumination to half illumination, and from half illumination to off.
NOTE: In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal lamp).

Fig 1: Interior Room Lamp Output Control Function Graph (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Interior Room Lamp Output Control Function Graph (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

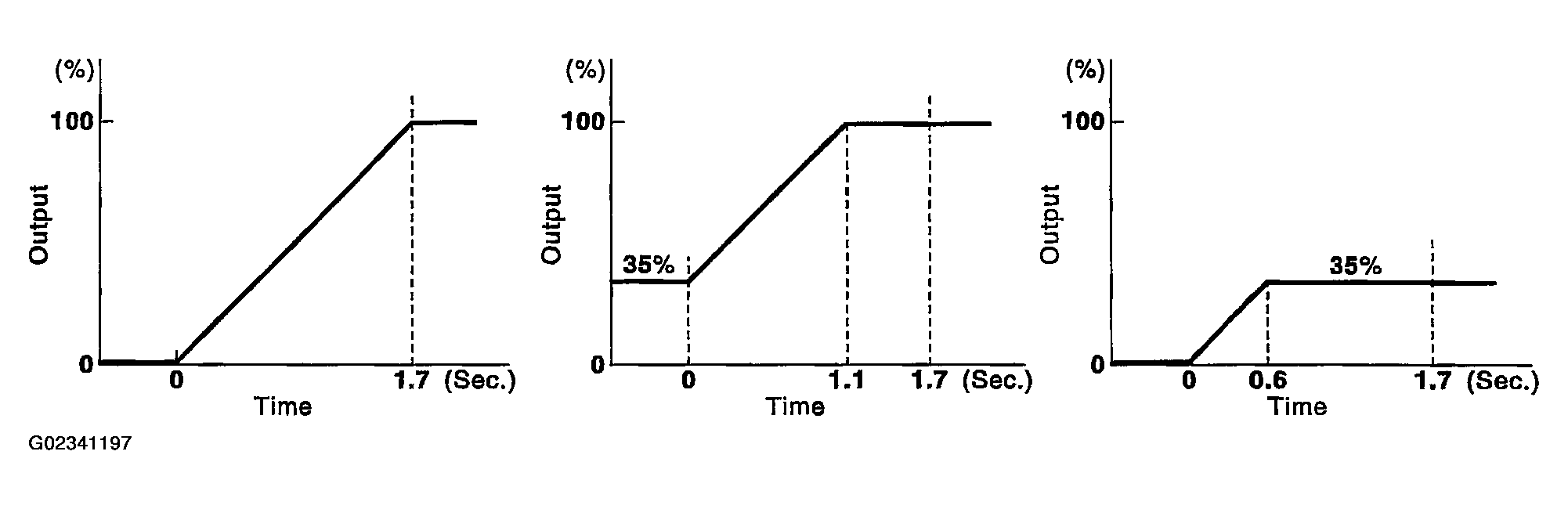

In case from off to full illumination, from half illumination to full illumination, and from off to half illumination.
NOTE: In full illumination, brightness of the lamps is 100%. In half illumination, it is 35% (25% for the personal lamp).
