Bulb Replacement

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver in the notch and remove lens.
  2. Remove bulb.
    1. Step lamp: 12V 2.7W

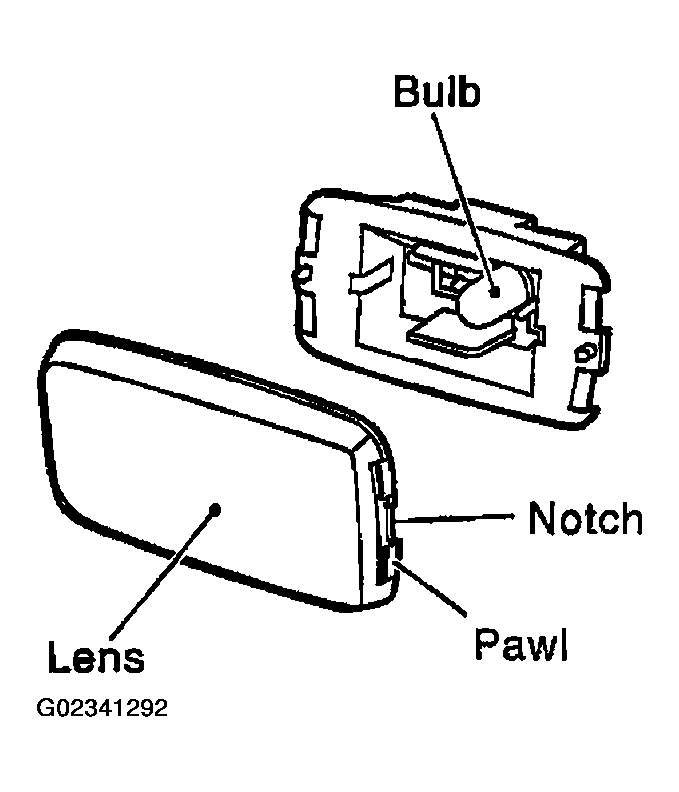

    Fig 1: Removing Lens
    G02341292Courtesy of NISSAN MOTOR CO., U.S.A.
