Switch Monitor: Notes
WARNING:
This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
Perform the diagnosis on the switch system to each control unit.
How to Perform Switch Monitor

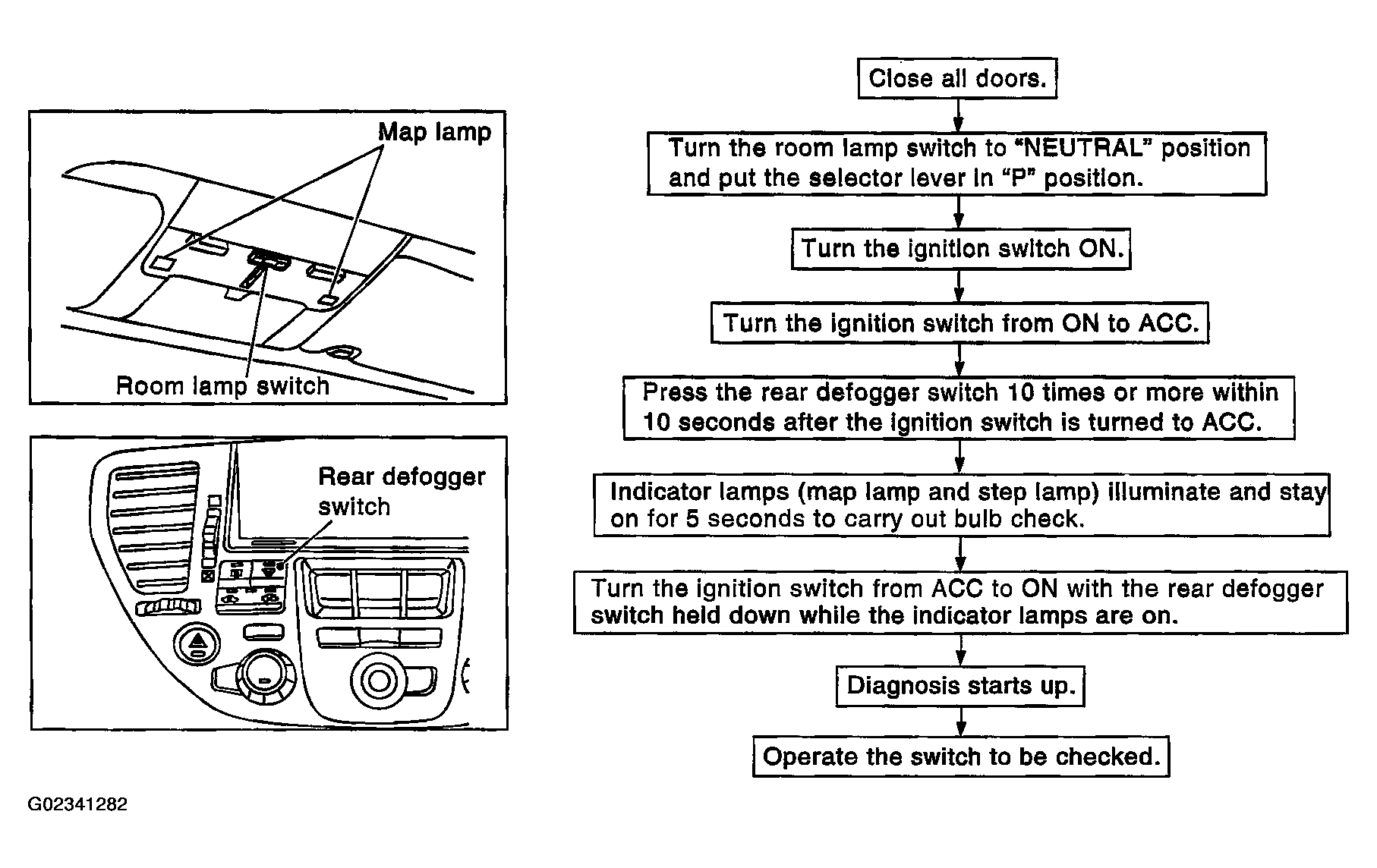

Fig 1: Switch System Flow Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
