Warning Chime: Schematic

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

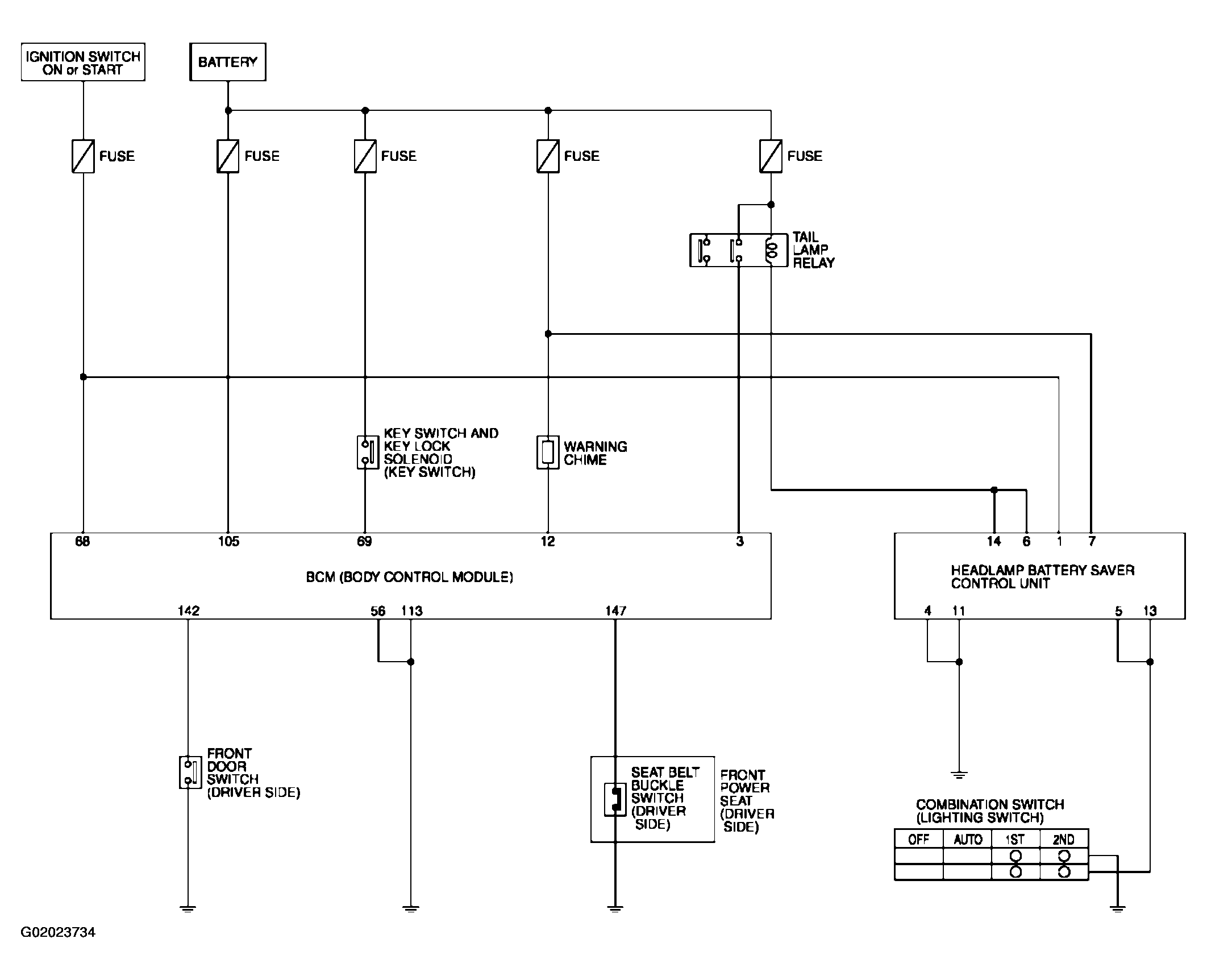

Fig 1: Seat Belt Warning Chime Schematic Diagram
G02023734Courtesy of NISSAN MOTOR CO., U.S.A.
