Vehicle Information System: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

AV and NAVI control unit is received vehicle information system of signals from combination meter.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "INFO" switch to display vehicle information display.

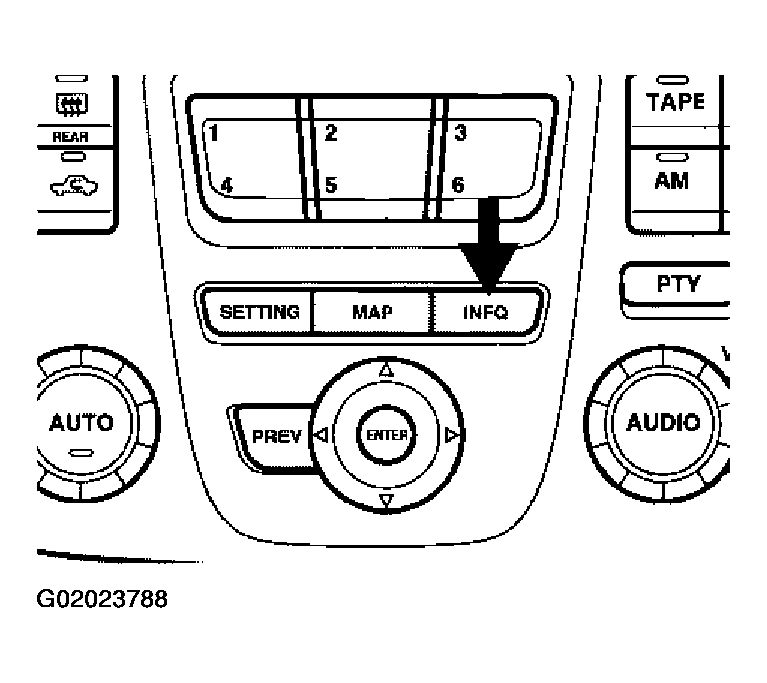

Fig 1: Selecting "INFO" Switch To Display Vehicle Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire pressure".

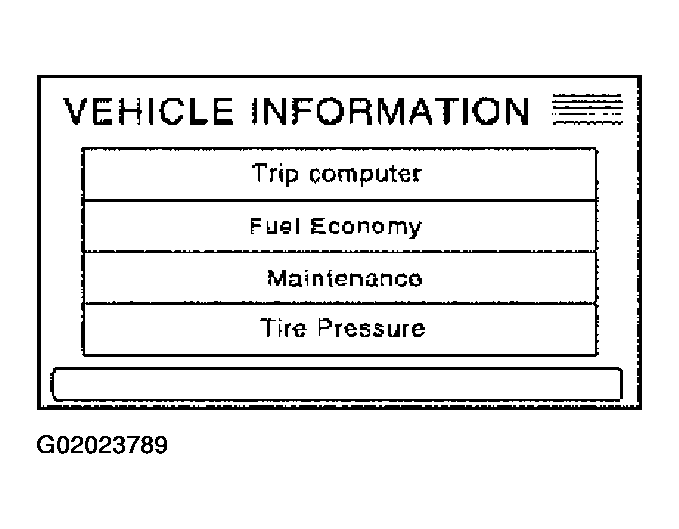

Fig 2: Vehicle Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.

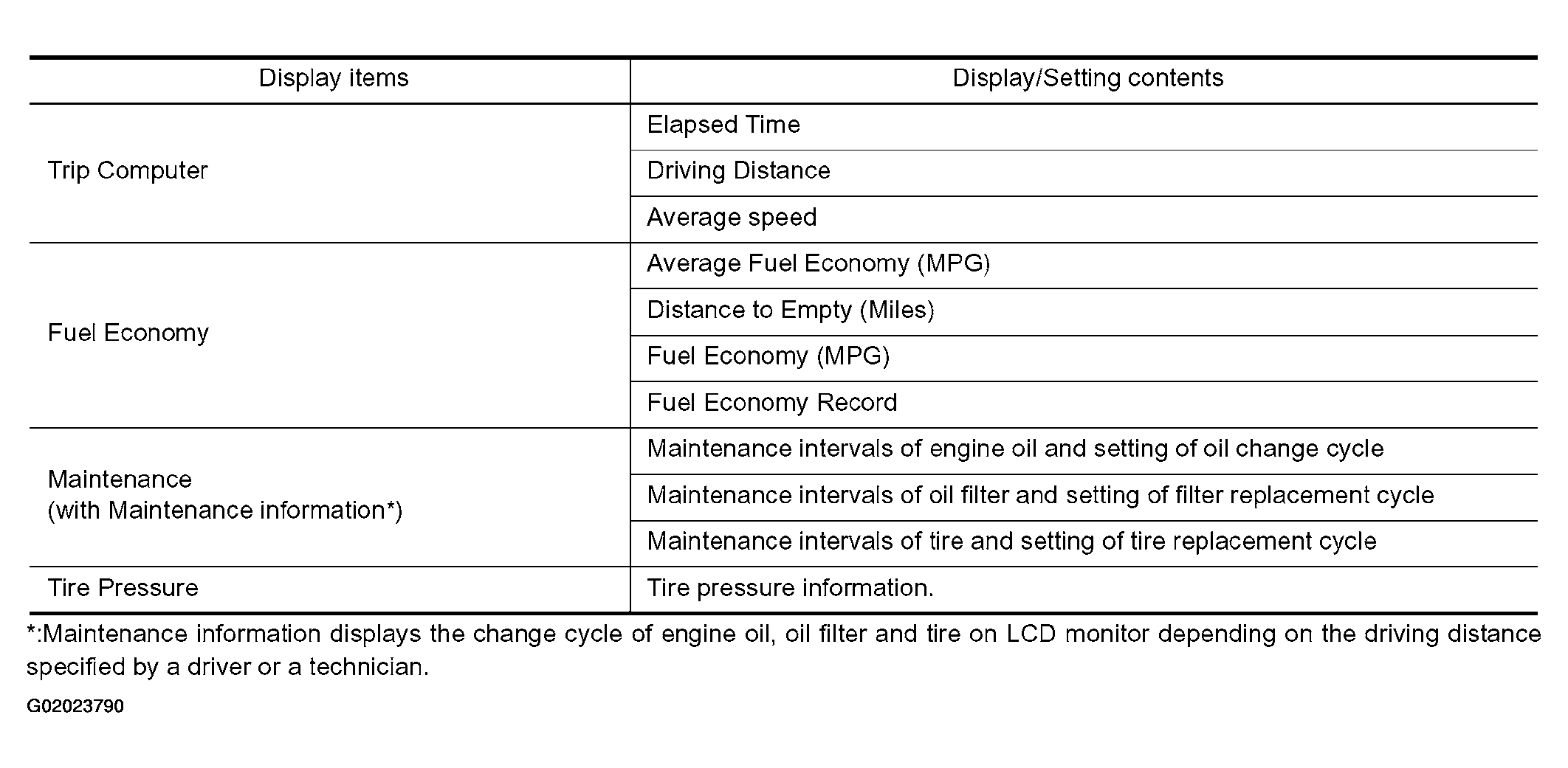

Fig 3: Identifying Display Item And Setting Contents
Courtesy of NISSAN MOTOR CO., U.S.A.
