Data Monitor

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Displays status of the vehicle signal input to the AV control unit. (Refer to "CONFIRMATION/ADJUSTMENT MODE " for operation conditions for the connections to be indicated.)

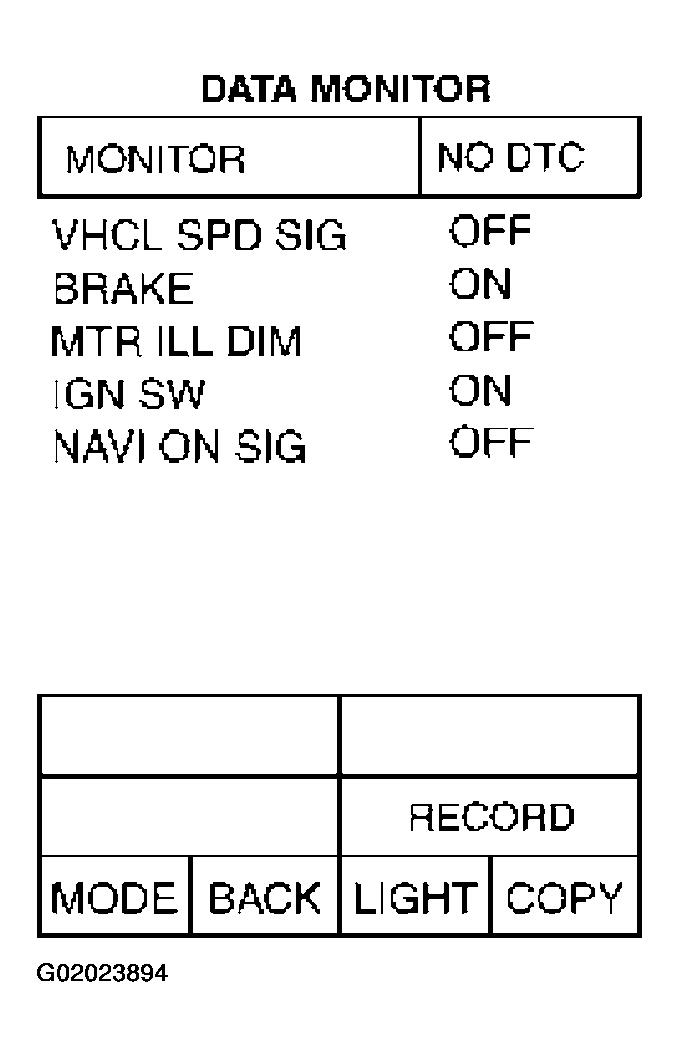

Fig 1: Identifying Data Monitor Display
Courtesy of NISSAN MOTOR CO., U.S.A.
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

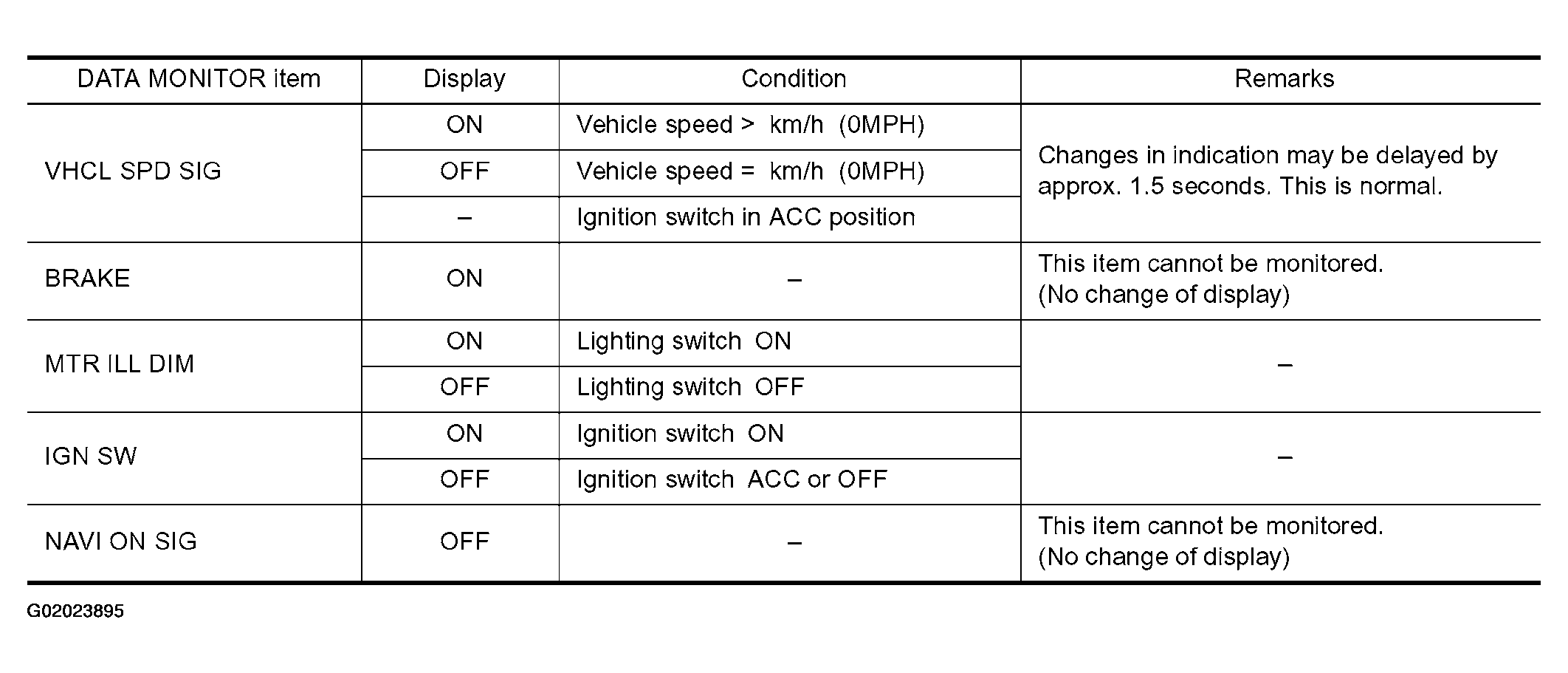

Fig 2: Identifying Data Monitor Item And Display
Courtesy of NISSAN MOTOR CO., U.S.A.
