Vehicle Information And Integrated Switch System-Without Navigation System: Schematic

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

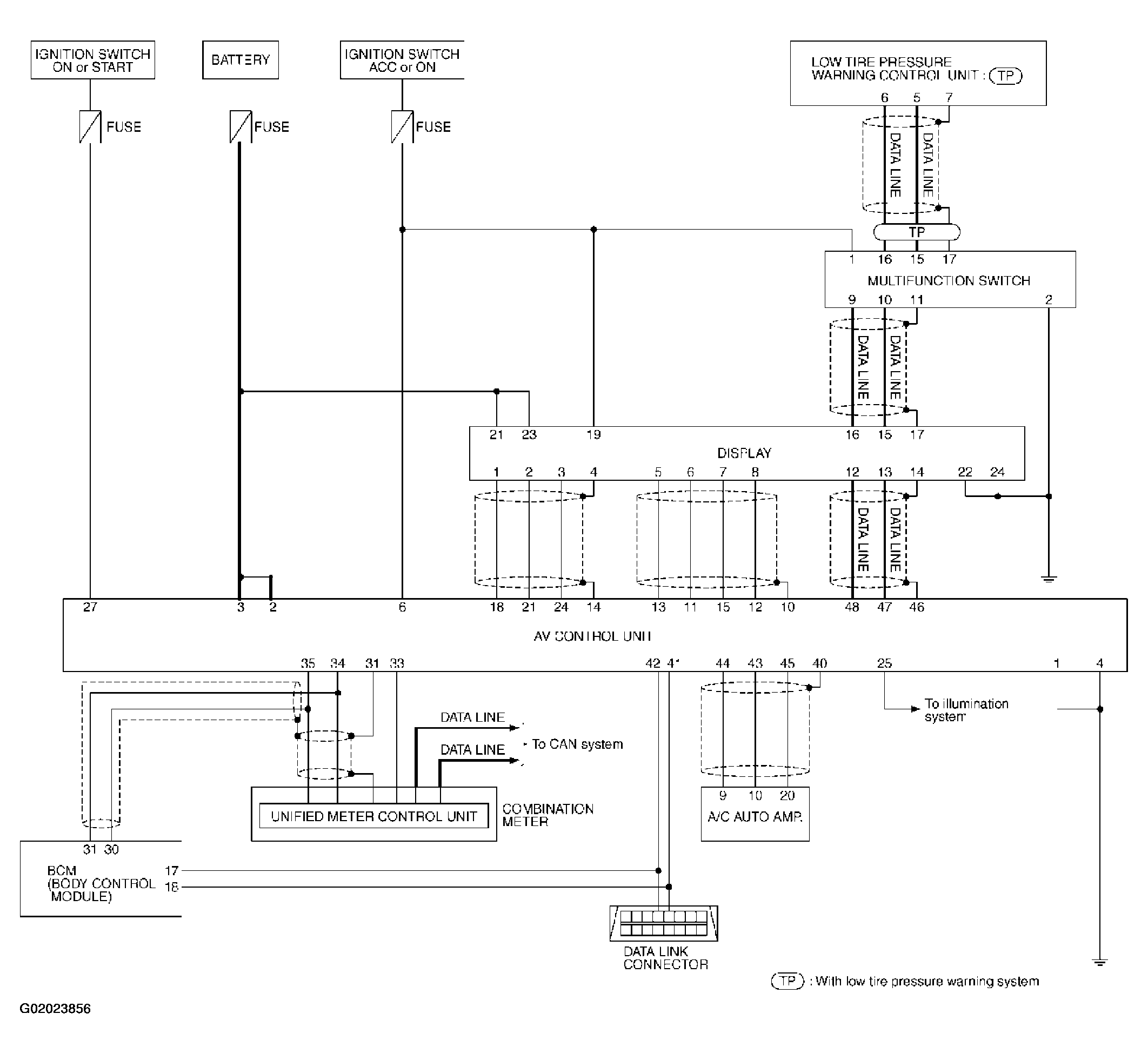

Fig 1: AV Control Unit Schematic
G02023856Courtesy of NISSAN MOTOR CO., U.S.A.

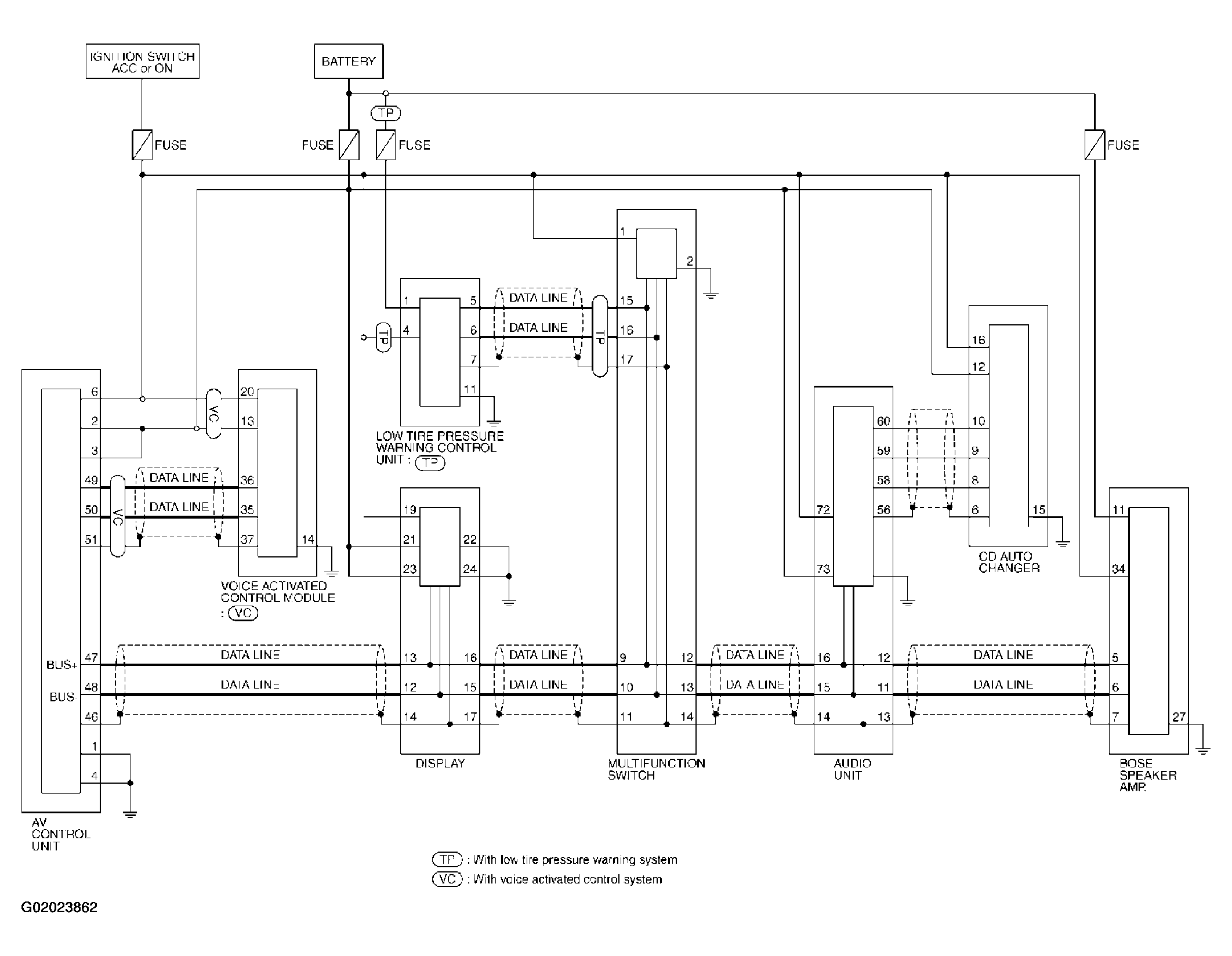

Fig 1: AV Control Unit Schematic
G02023862Courtesy of NISSAN MOTOR CO., U.S.A.
