Vehicle Information System: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

AV control unit is received vehicle information system of signals from combination meter.
AV control unit is communicating with BCM and combination meter.

Press "INFO" switch to display vehicle information display.

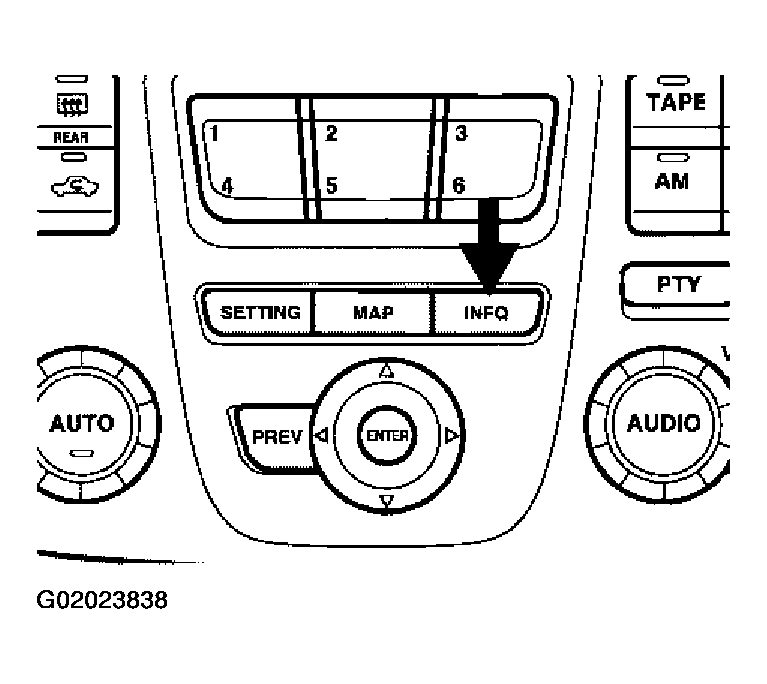

Fig 1: Selecting "INFO" Switch (Vehicle Information And Integrated Switch System Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire Pressure".

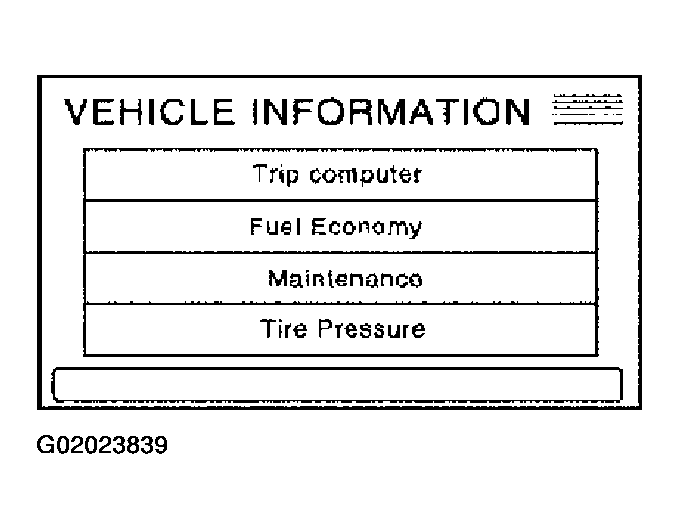

Fig 2: Selecting "Trip Computer", "Fuel Economy", "Maintenance" or "Tire Pressure"
Courtesy of NISSAN MOTOR CO., U.S.A.

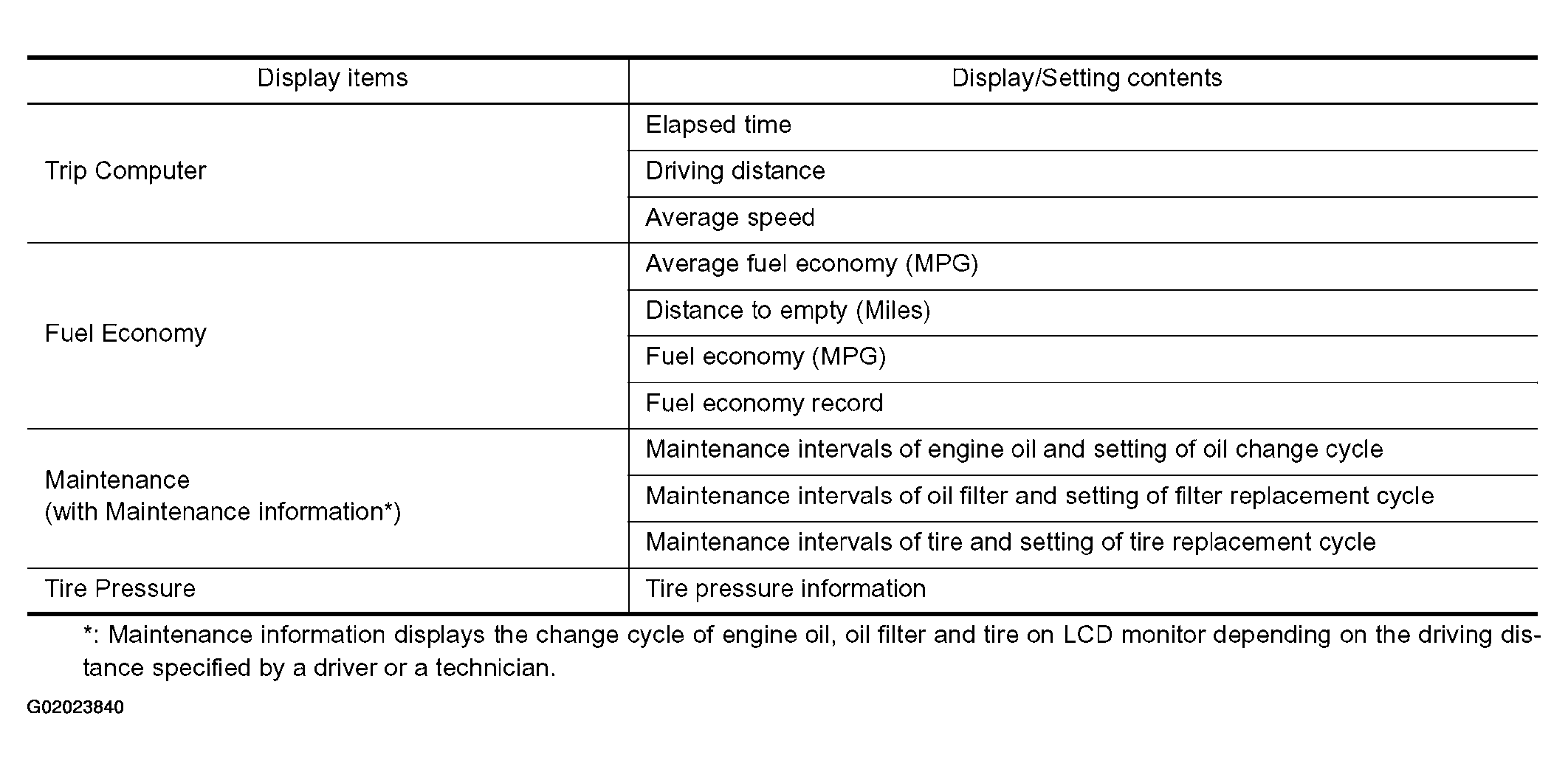

Fig 3: Display Item And Setting Content
Courtesy of NISSAN MOTOR CO., U.S.A.
