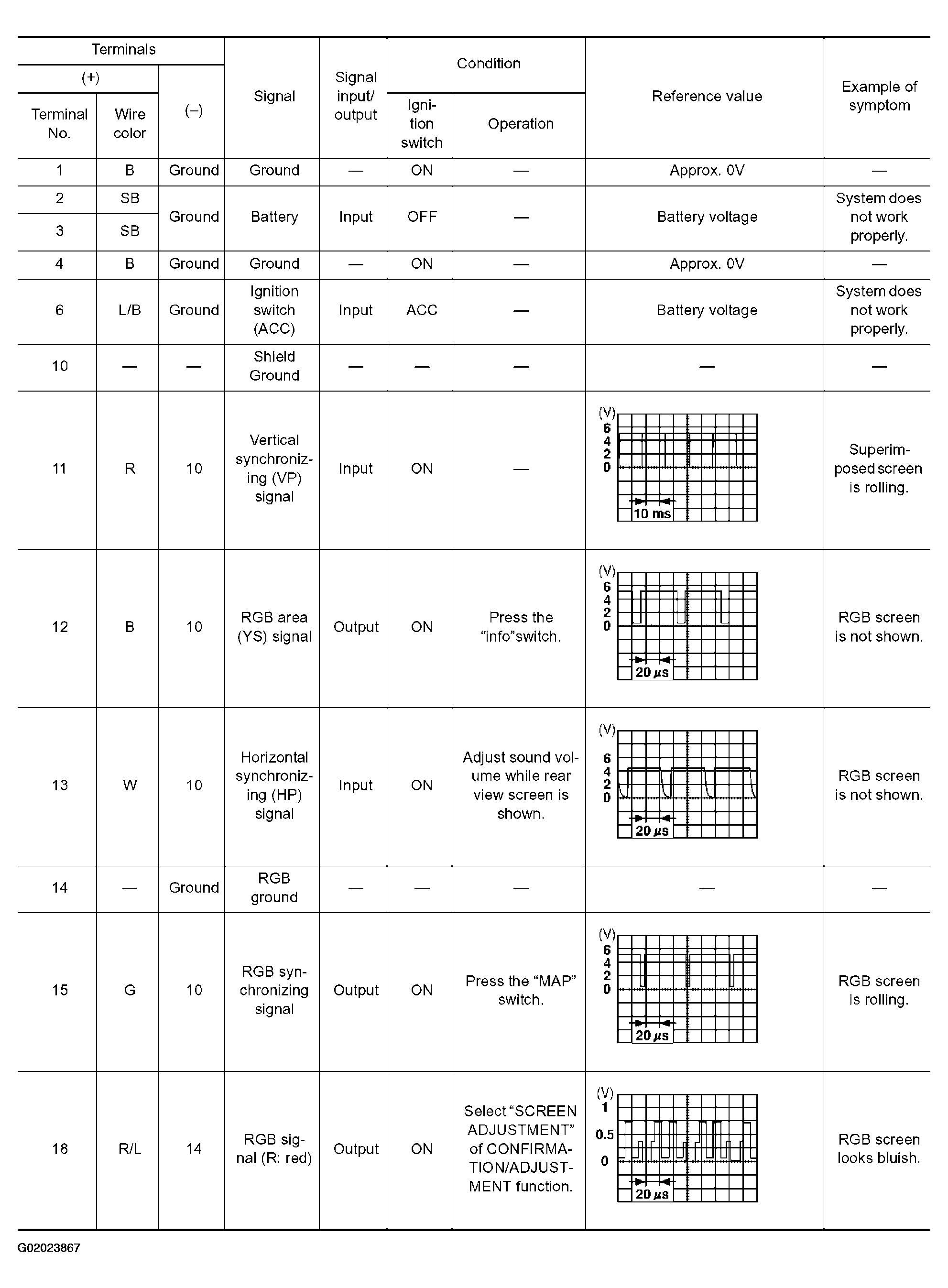

Fig 1: AV Control Unit Terminals and Reference Value Table (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

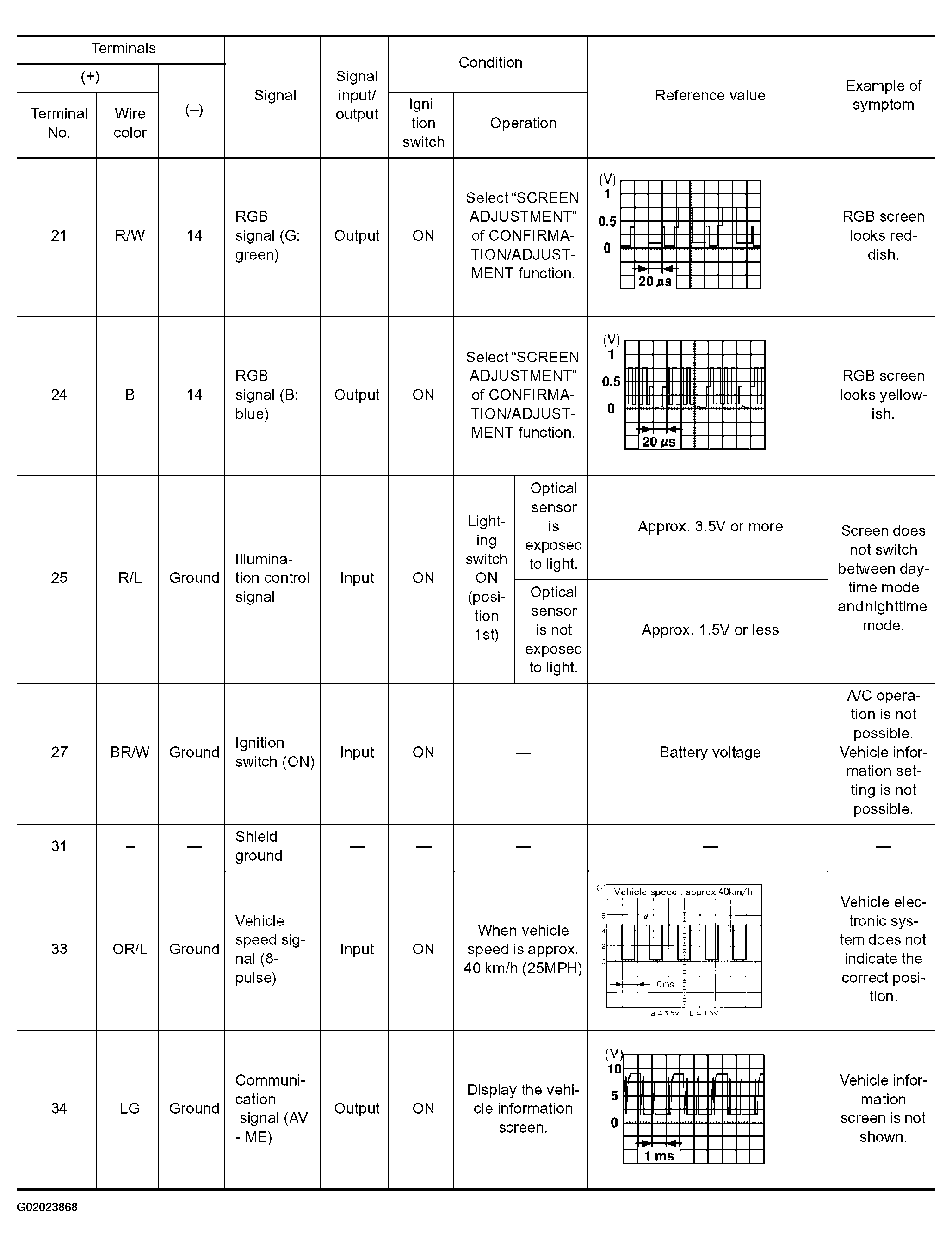

Fig 2: AV Control Unit Terminals and Reference Value Table (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

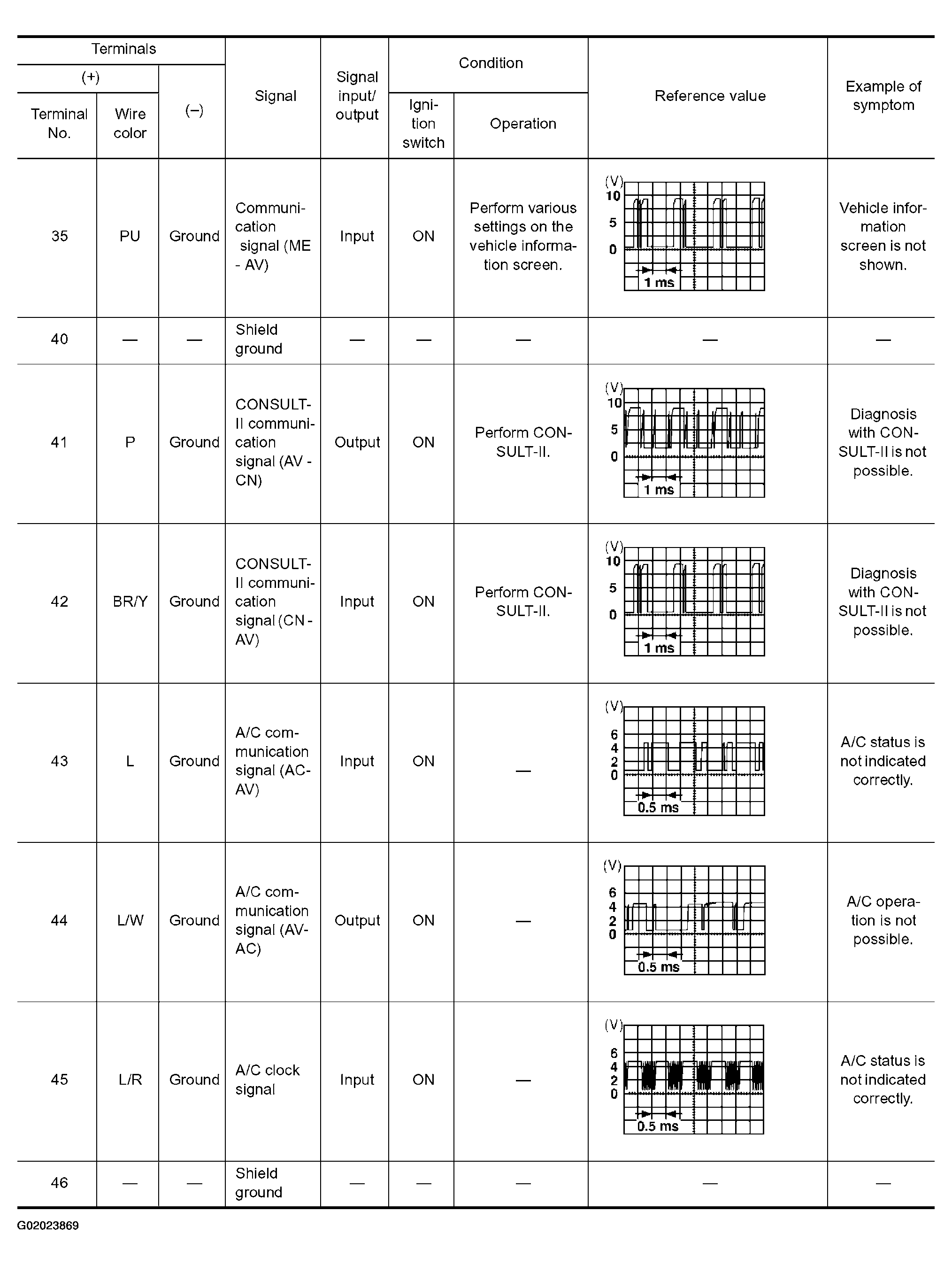

Fig 3: AV Control Unit Terminals and Reference Value Table (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

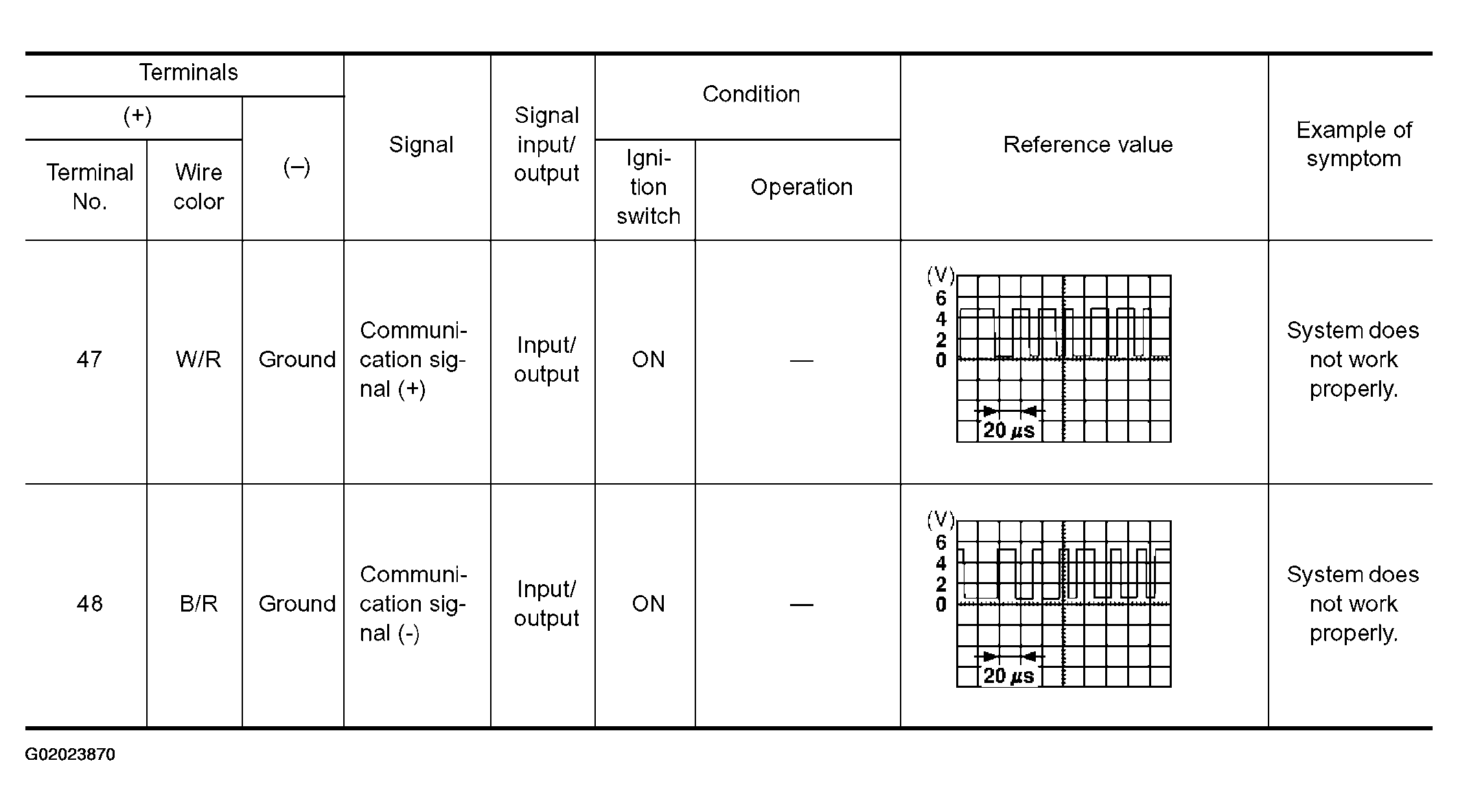

Fig 4: AV Control Unit Terminals and Reference Value Table (4 Of 4)
