How To Probe Connectors: Notes
WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.
Connector damage and an intermittent connection can result from improperly probing of the connector during circuit checks.

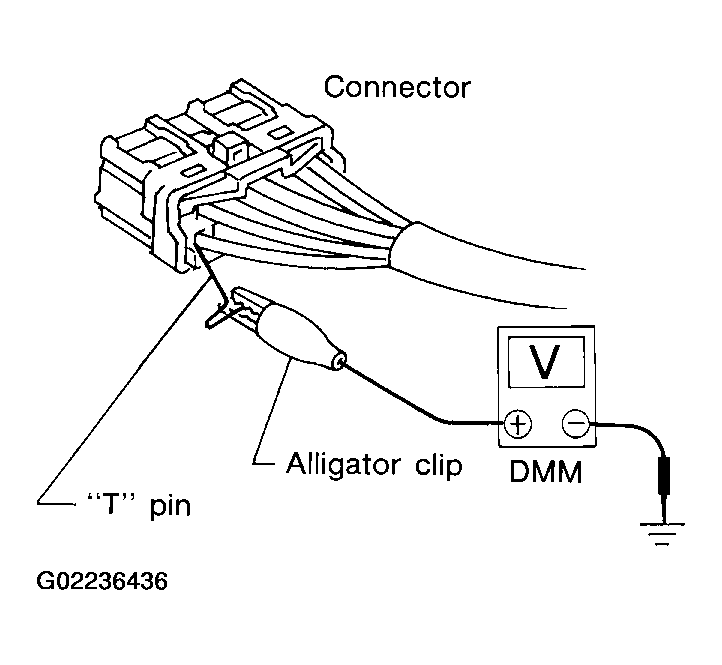

The probe of a digital multimeter (DMM) may not correctly fit the connector cavity. To correctly probe the connector, follow the procedures below using a T pin. For the best contact grasp the T pin using an alligator clip. See Fig 1 .
