Identification Information: Notes

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

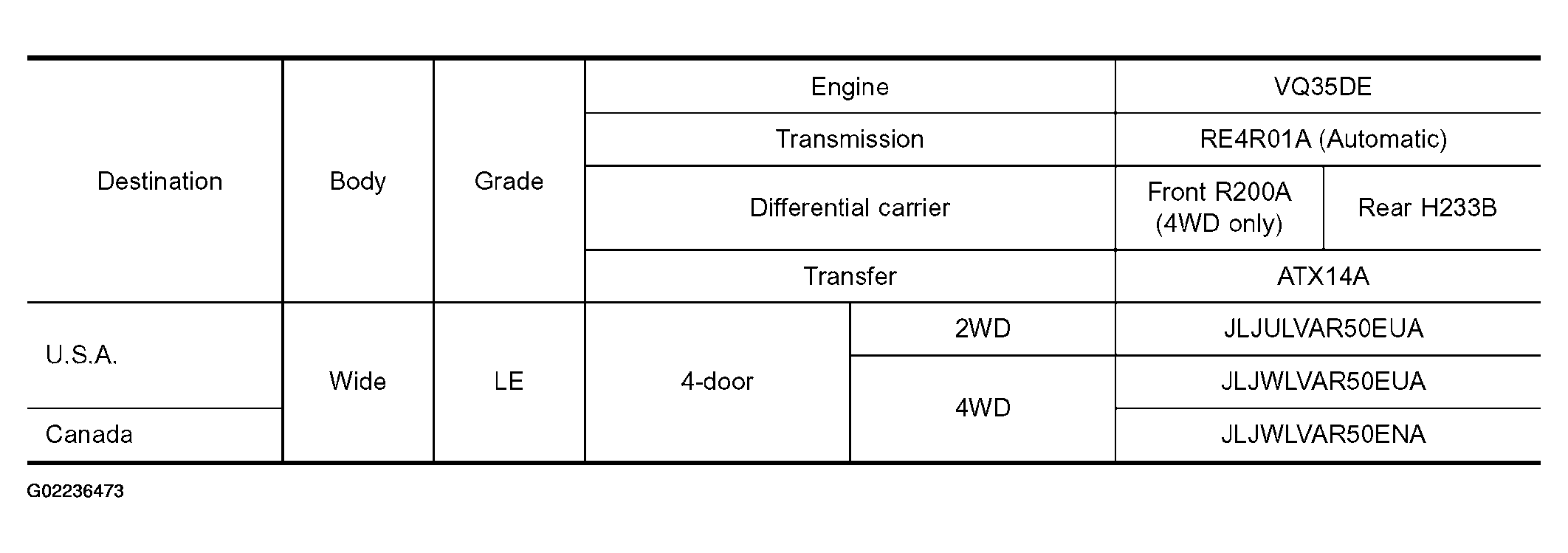

Fig 1: Displaying Information Model Variation Table

Courtesy of NISSAN MOTOR CO., U.S.A.

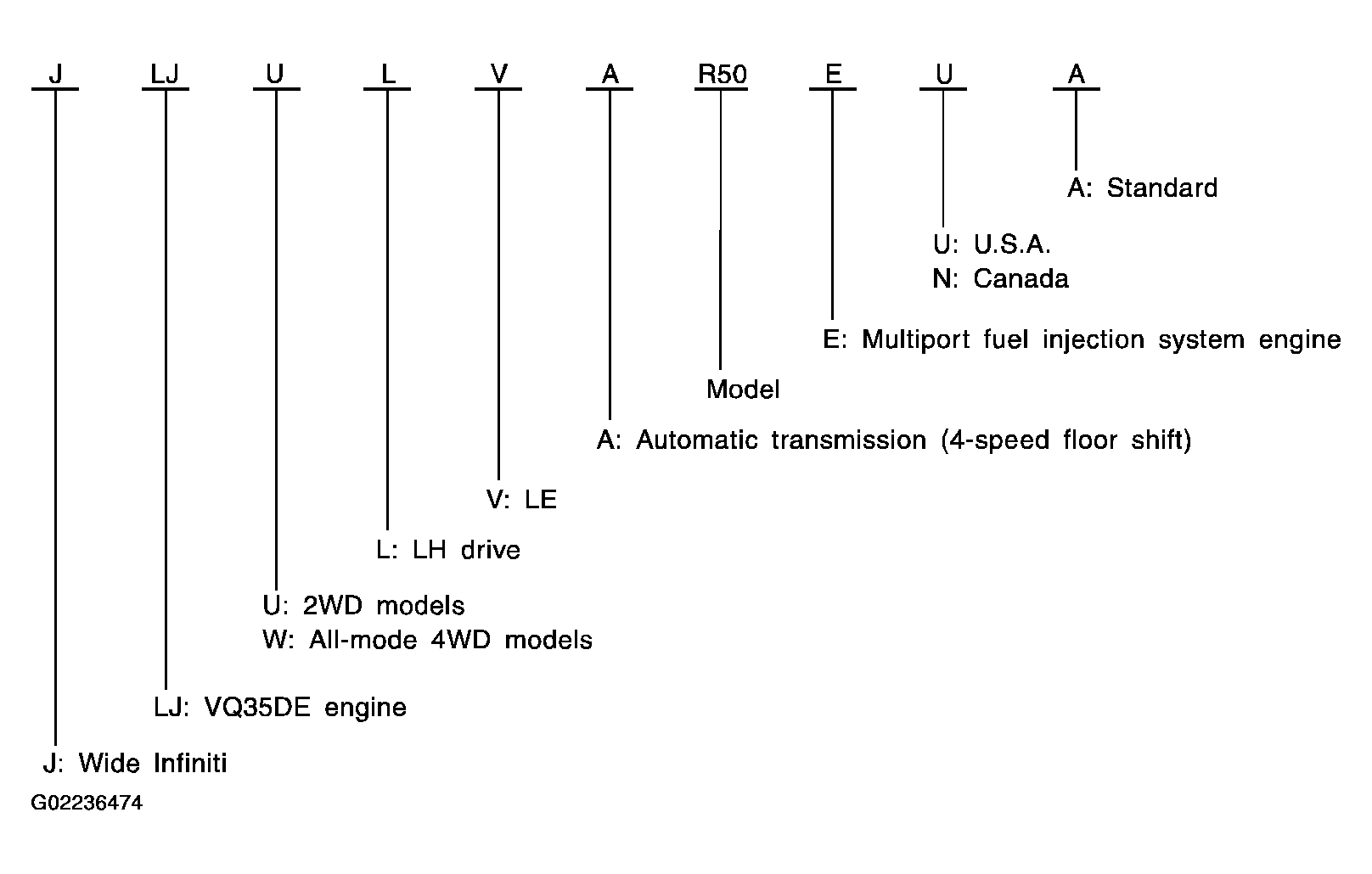

Fig 2: Displaying Prefix & Suffix Designations

Courtesy of NISSAN MOTOR CO., U.S.A.

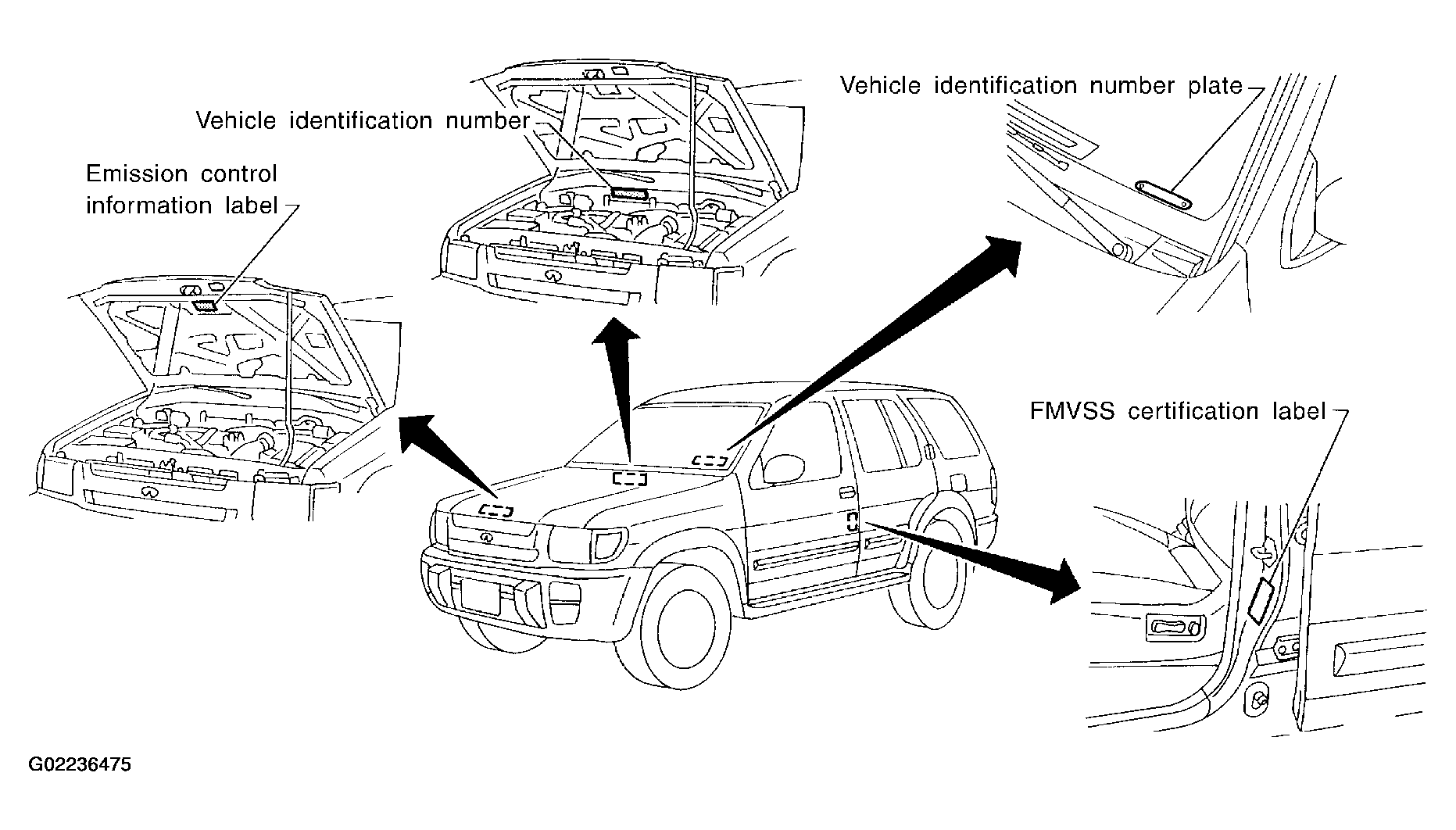

Fig 3: Locating Identification Numbers

Courtesy of NISSAN MOTOR CO., U.S.A.

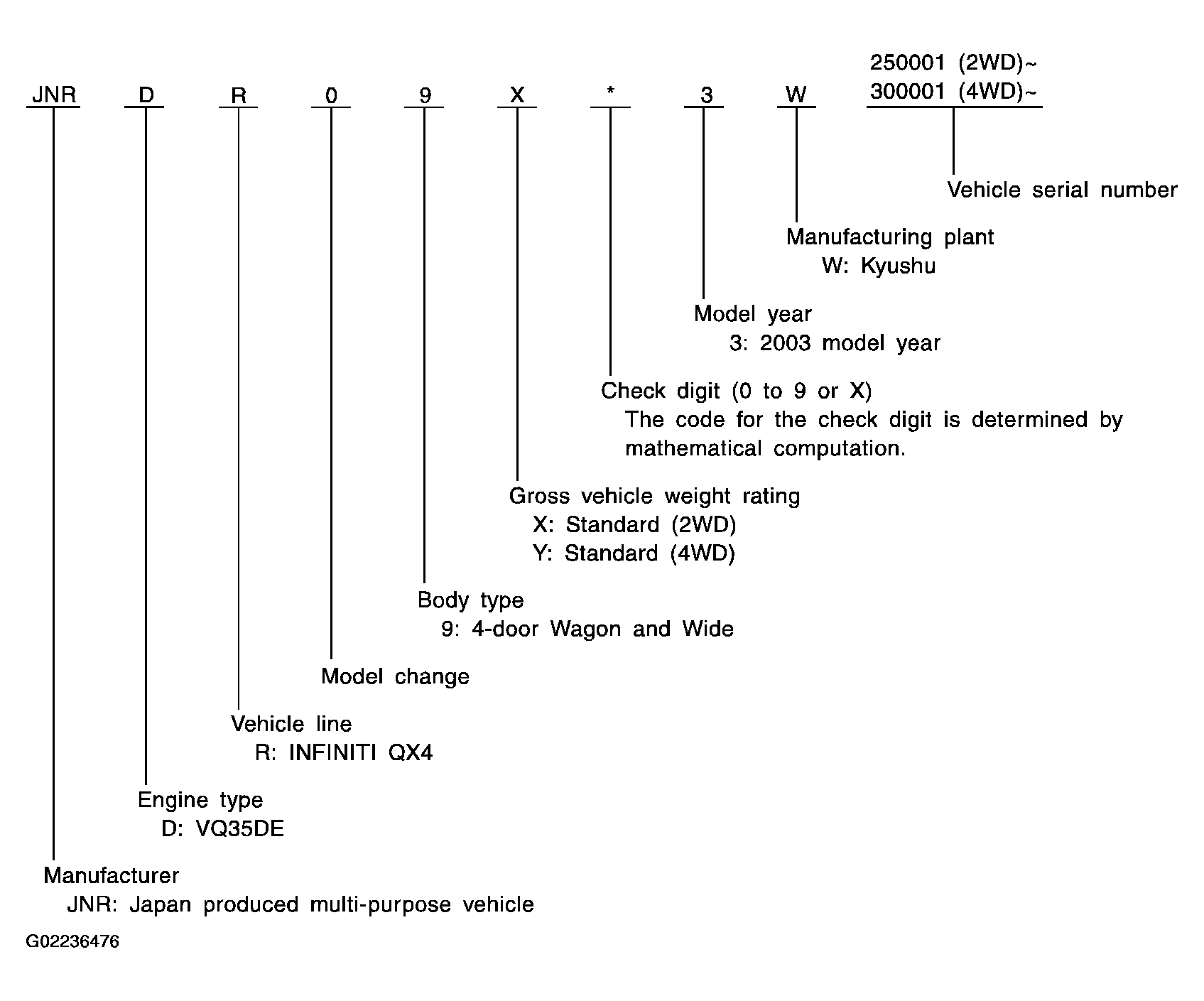

Fig 4: Locating Vehicle Identification Number Arrangement

Courtesy of NISSAN MOTOR CO., U.S.A.

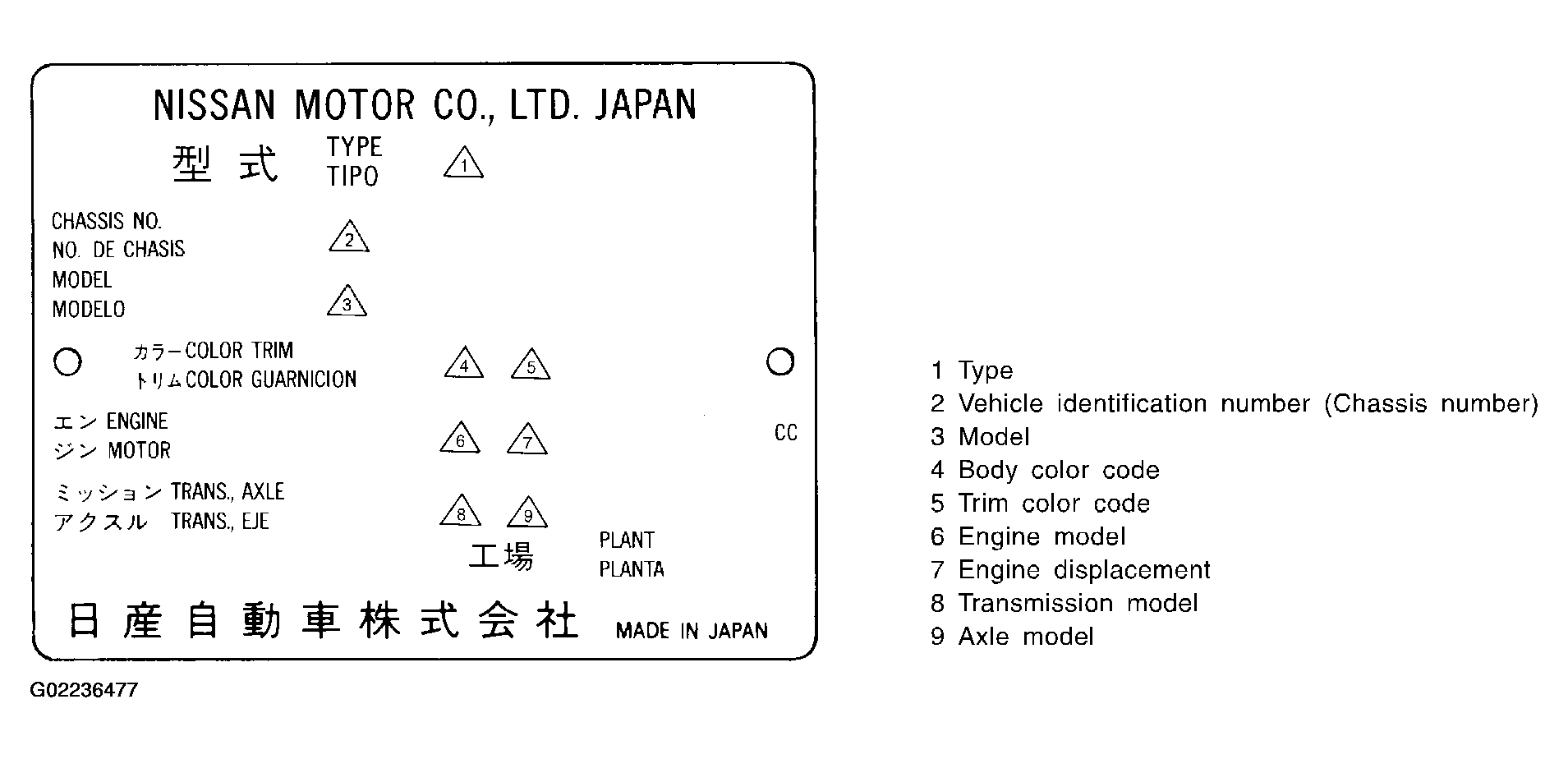

Fig 5: Locating Identification Plate

Courtesy of NISSAN MOTOR CO., U.S.A.

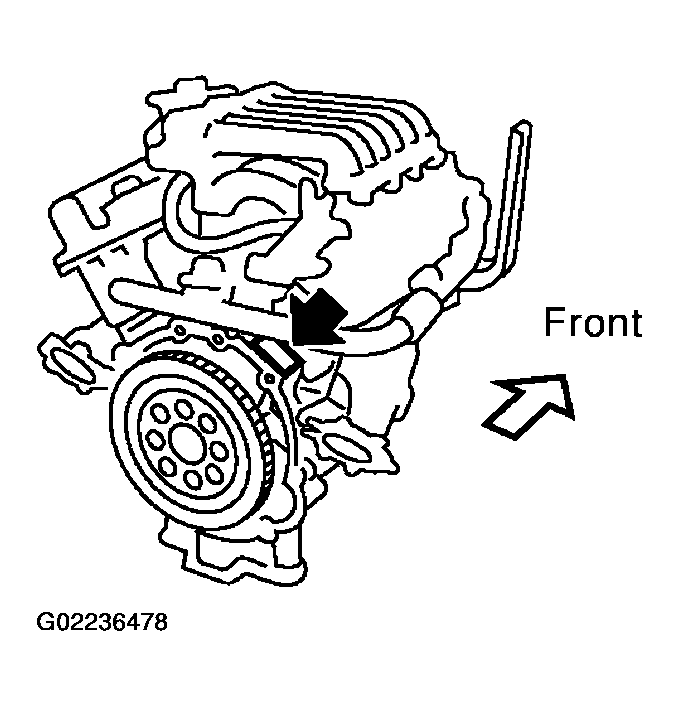

Fig 6: Locating Engine Serial Number

Courtesy of NISSAN MOTOR CO., U.S.A.

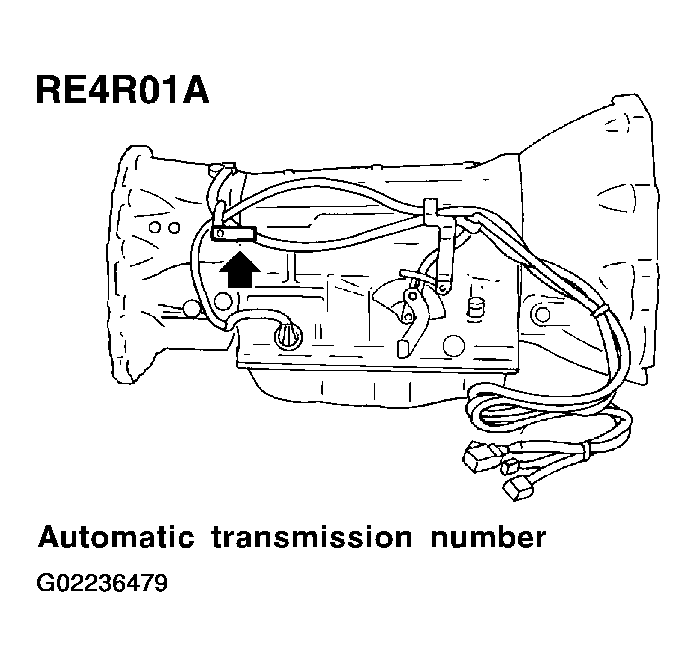

Fig 7: Locating Automatic Transmission Number

Courtesy of NISSAN MOTOR CO., U.S.A.

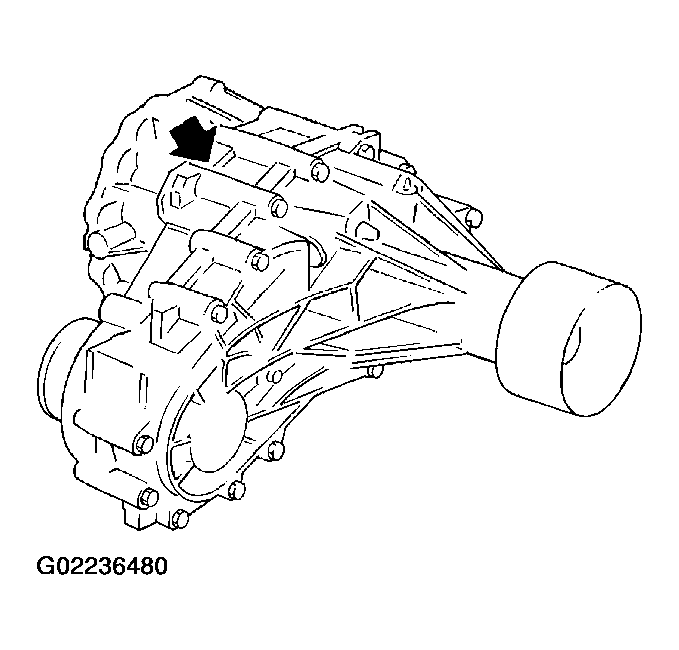

Fig 8: Locating Transfer Serial Number

Courtesy of NISSAN MOTOR CO., U.S.A.

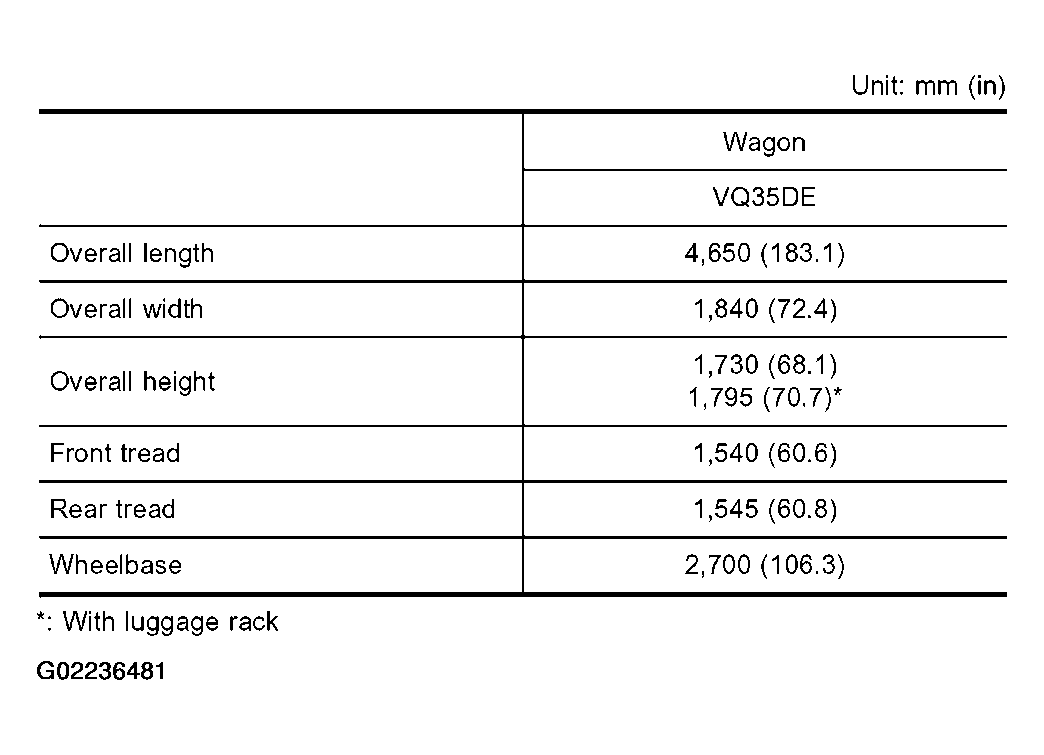

Fig 9: Identification Dimensions Table

Courtesy of NISSAN MOTOR CO., U.S.A.
