Air Conditioning Control Assembly: Components

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

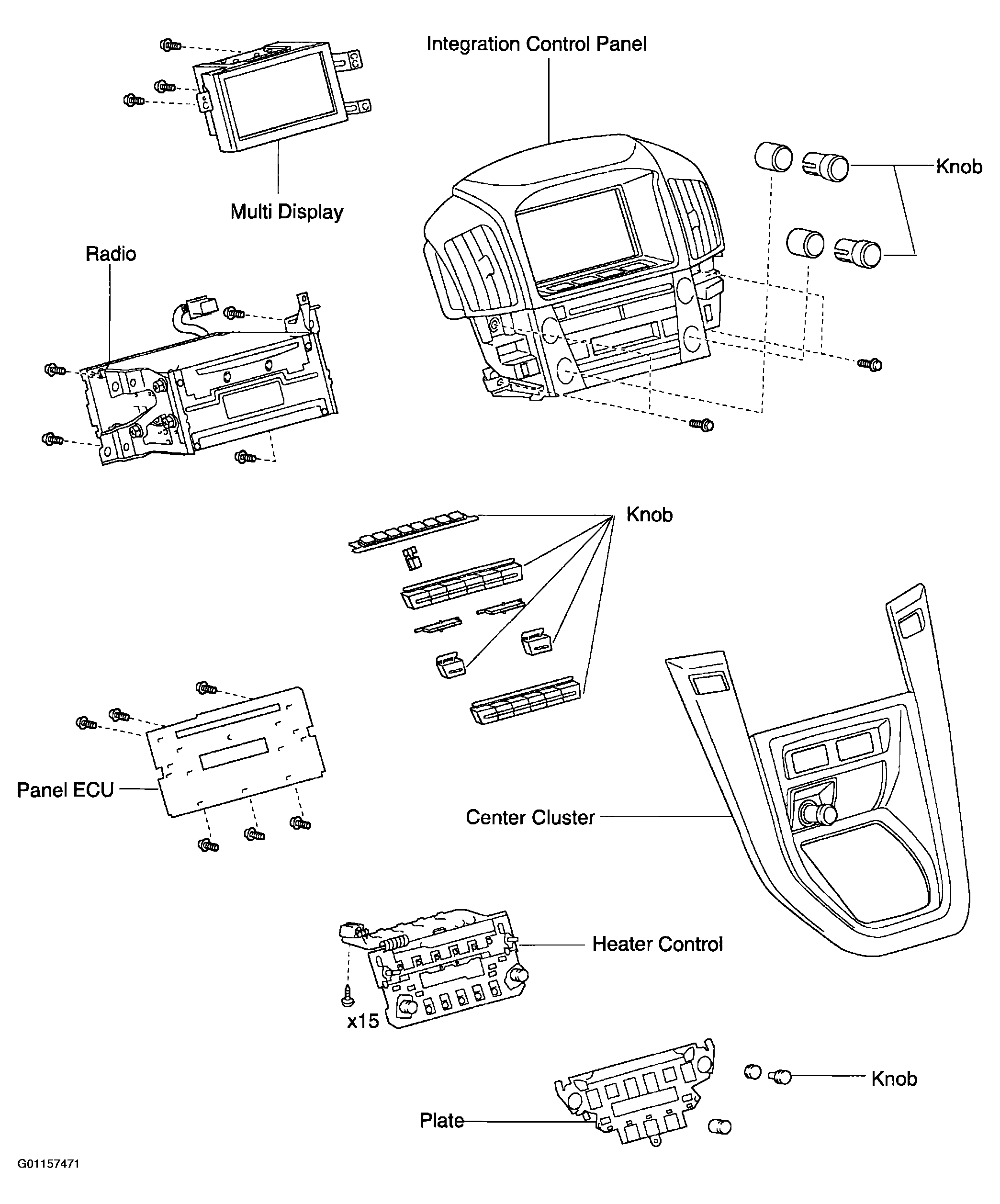

Fig 1: Removing/Installing Conditioning Control Assembly Components
G01157471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
