Blower Unit: Components

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

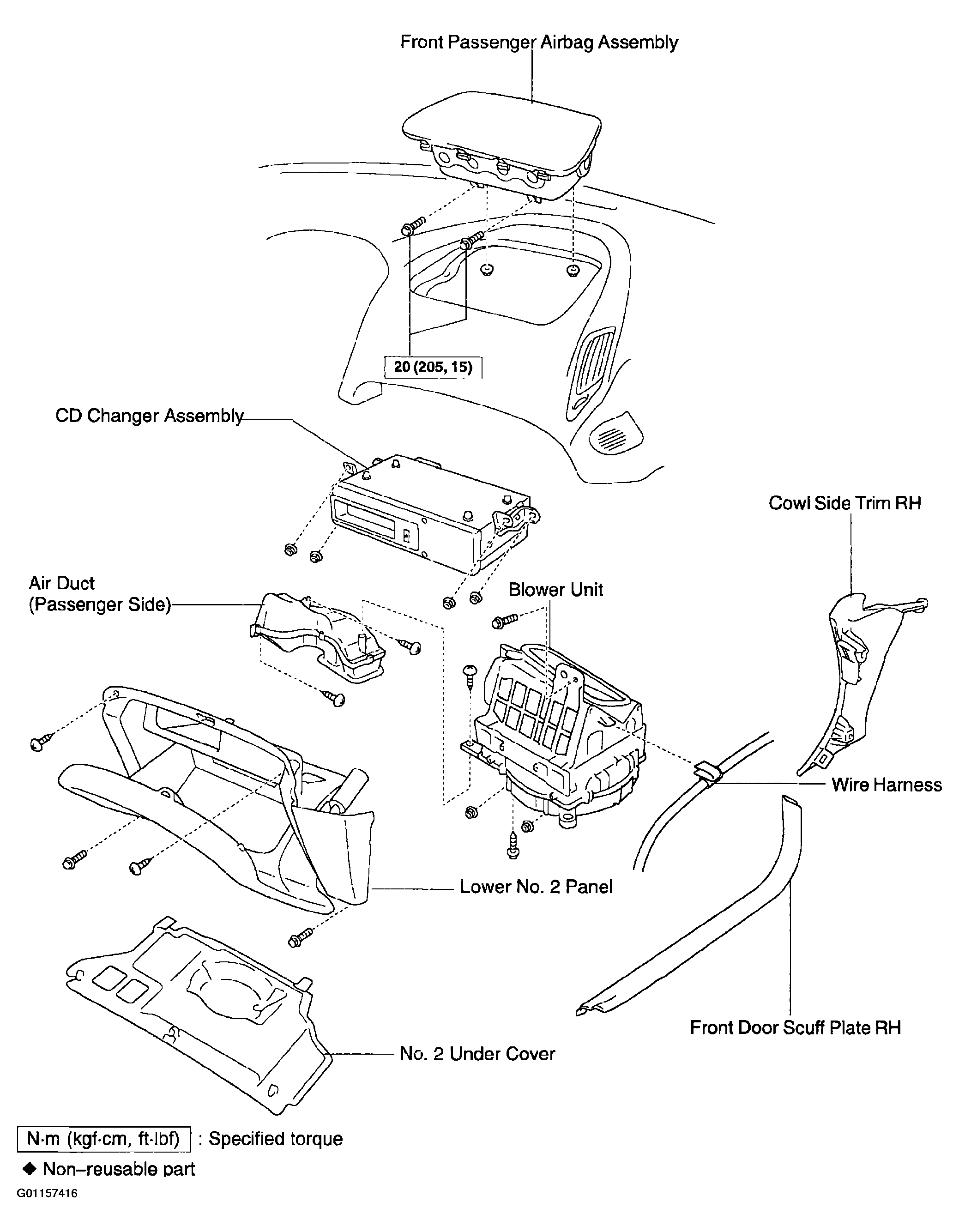

Fig 1: Removing/Installing Blower Unit
G01157416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

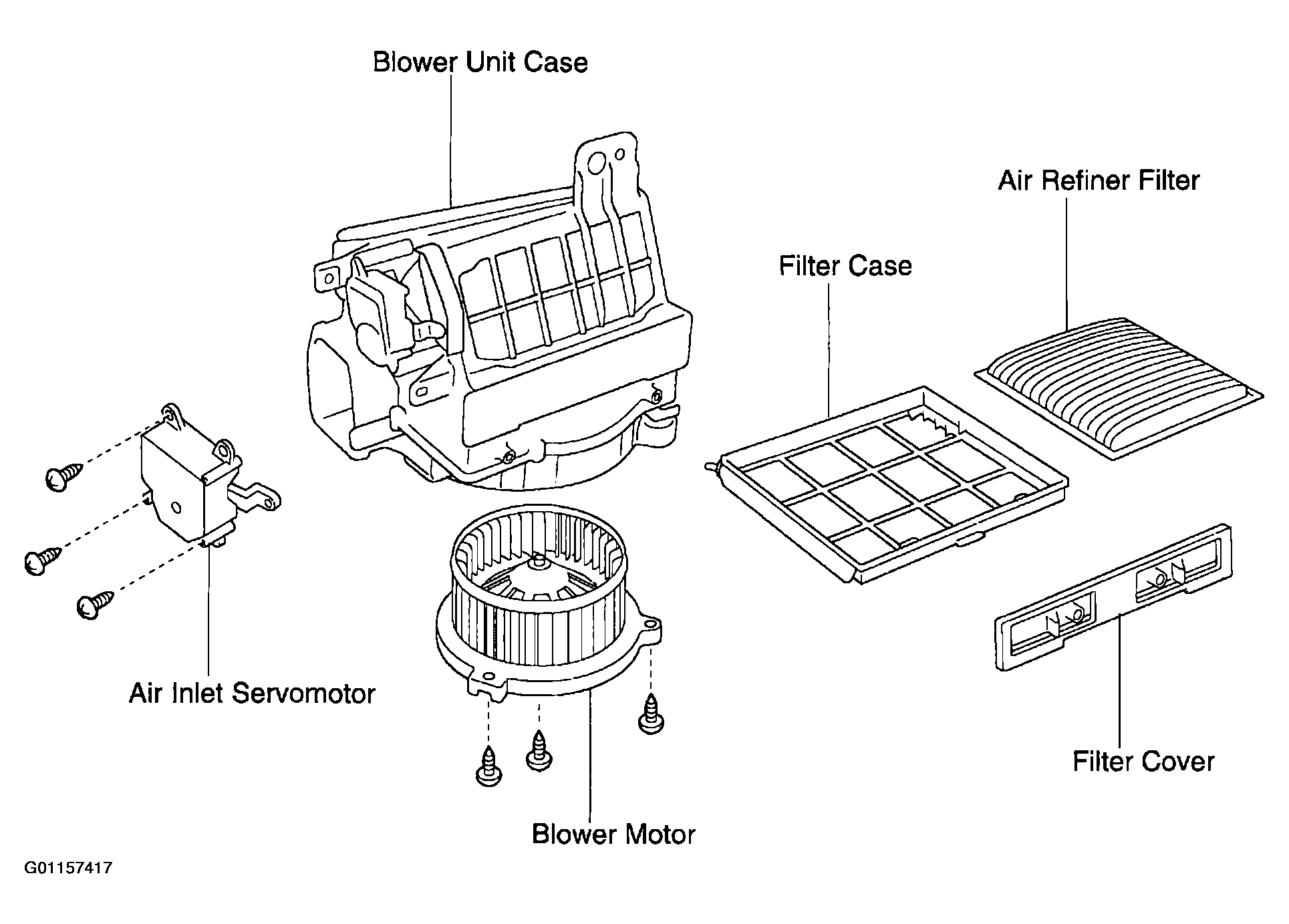

Fig 2: Exploded View Of Blower Unit Components And Torque Specifications
G01157417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
