Refrigerant Line: Replacement
WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
- DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
- REPLACE FAULTY TUBE OR HOSE NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

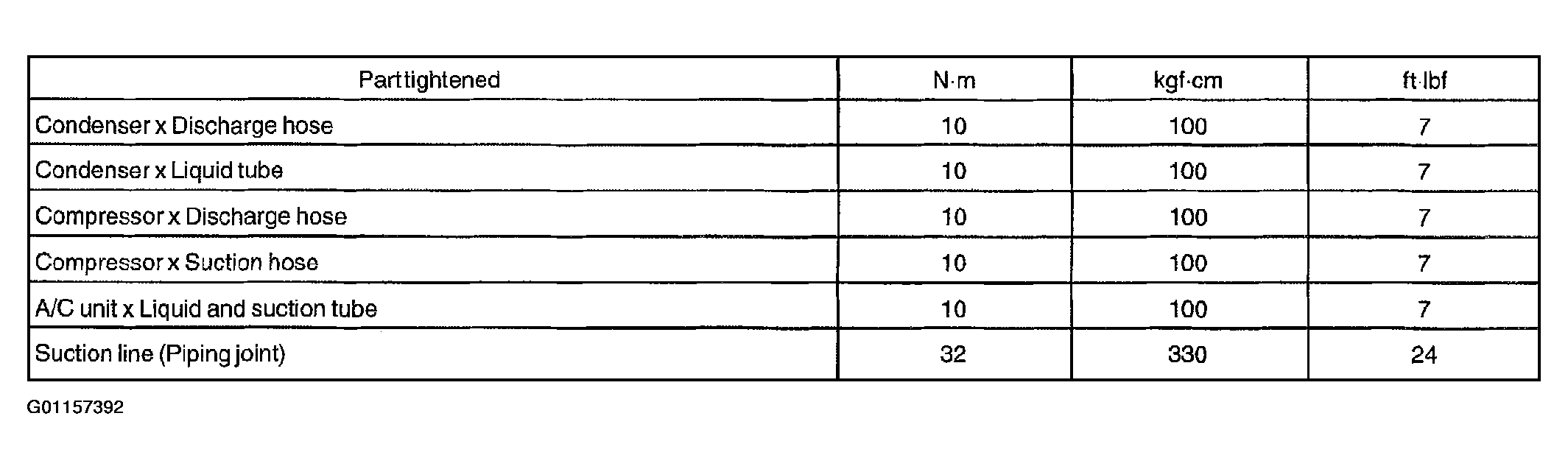

- TIGHTEN JOINT OF BOLT OR NUT TO SPECIFIED TORQUE NOTE: Connections should not be torqued tighter than the specified torqued.
- EVACUATE AIR FROM REFRIGERATION SYSTEM AND CHARGE WITH REFRIGERANT
- Specified amount: 650 +/- 50 g (22.92 +/- 1.76 oz.)
- INSPECT FOR LEAKAGE OF REFRIGERANT
Using a gas leak detector, check for leakage of refrigerant.
- INSPECT AIR CONDITIONING OPERATION
