Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Remarks: Specification data are reference values.

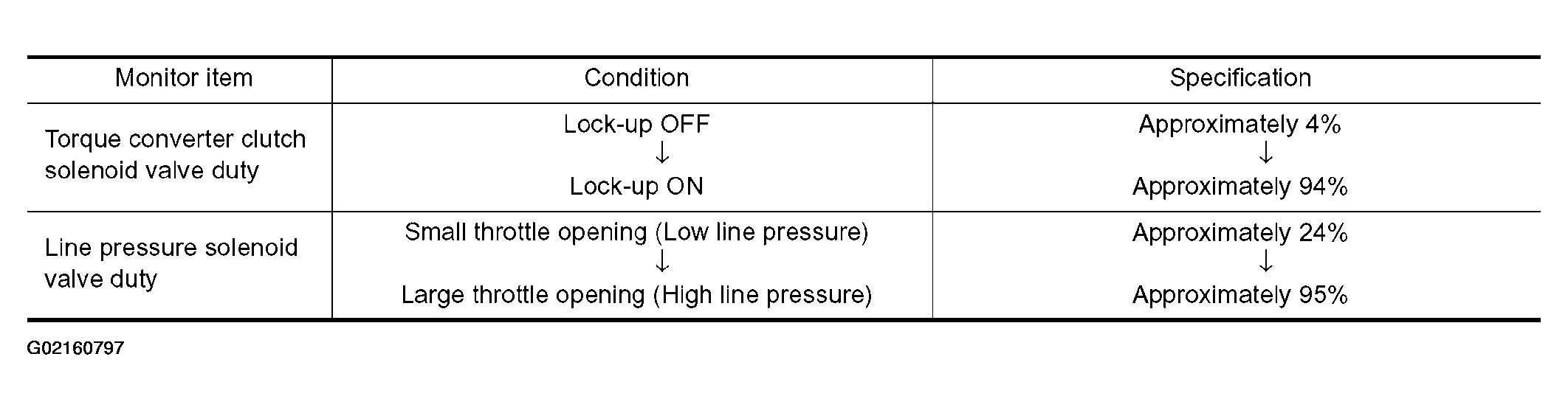

Fig 1: Torque Converter Clutch, Line Pressure Solenoid Valve Duty Conditions Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
