Back-up Control (Engine brake)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

If the selector lever is shifted to 2 position while driving in D4 (O/D) or D3 , great driving force is applied to the clutch inside the transmission. Clutch operating pressure (line pressure) must be increased to deal with this driving force.

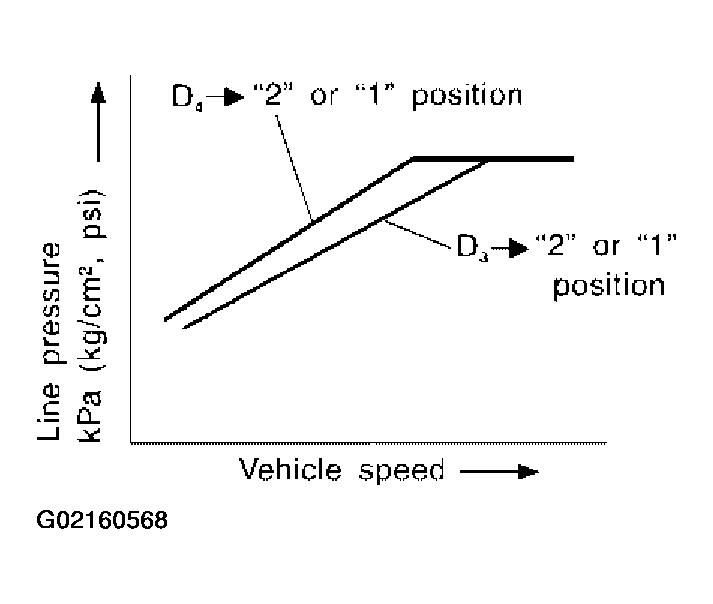

Fig 1: Line Pressure Graph Back-Up Control (Engine Brake)
G02160568Courtesy of NISSAN MOTOR CO., U.S.A.
