Normal Control

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The line pressure to throttle opening characteristics is set for suitable clutch operation.

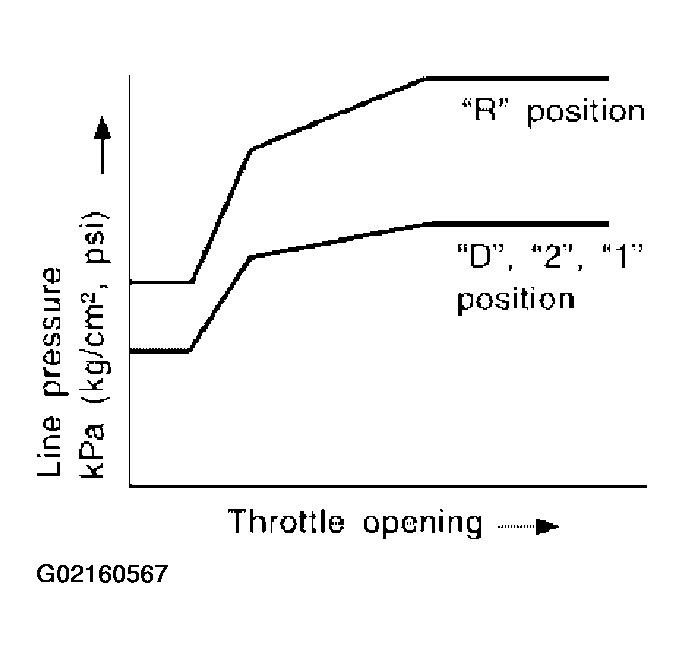

Fig 1: Line Pressure To Throttle Opening Characteristic Graph
G02160567Courtesy of NISSAN MOTOR CO., U.S.A.
